Quick Details
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BRETT
-
Dimension(L*W*H):
-
1800x1750x1700MM
-
Weight:
-
900 KG
-
Product name:
-
Filling Sealing Packing Machine
-
Usage:
-
For Honey Spoons Sealing packing
-
Size:
-
Customized Size
-
Item:
-
Luxury
-
Logo:
-
Customized Logo Acceptable
-
Name:
-
Machine Set
-
Sealing type:
-
Plastic spoons/cups
-
Capacity:
-
200pcs/Hour
-
After Warranty Service:
-
Video technical support
-
Warranty Service:
-
Online support
-
Marketing Type:
-
New Product 2021
Quick Details
-
Packaging Type:
-
Bags, Film, Foil, Spoons
-
Packaging Material:
-
Plastic, aluminum
-
Driven Type:
-
Electric
-
Voltage:
-
220V/380V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
BRETT
-
Dimension(L*W*H):
-
1800x1750x1700MM
-
Weight:
-
900 KG
-
Product name:
-
Filling Sealing Packing Machine
-
Usage:
-
For Honey Spoons Sealing packing
-
Size:
-
Customized Size
-
Item:
-
Luxury
-
Logo:
-
Customized Logo Acceptable
-
Name:
-
Machine Set
-
Sealing type:
-
Plastic spoons/cups
-
Capacity:
-
200pcs/Hour
-
After Warranty Service:
-
Video technical support
-
Warranty Service:
-
Online support
-
Marketing Type:
-
New Product 2021
Application
What can this machine pack?
This liquid filling sealing machine is specially designed for making honey spoons,
and molds of corresponding sizes can be customized,according to customer needs.
Machine Information
|
CHINABRETT Rotary Type
Automatic Honey spoon filling sealing machine
|
|
|
|
|
|
||||
|
Model
|
CB200-1HSM
(1 nozzles)
|
CB200-2HSM
(2 nozzles)
|
CB200-3HSM
(3 nozzles)
|
CB200-4HSM
(4 nozzles)
|
CB200-6HSM
(6 nozzles)
|
||||
|
Packing speed
|
800~1000pcs/h
|
1600-2000pcs/h
|
2500-3000pcs/h
|
3200-3800pcs/h
|
4800-5500pcs/h
|
||||
|
Filling volume
|
7g/8g/10g/12g/15g/20g according to your customize spoons
|
|
|
|
|
||||
|
Machine power
|
220V/380V，50HZ，4KW
|
|
|
|
|
||||
|
Machine size（L*W*H)
|
1300mm*1300mm*1700mm
|
|
|
|
|
||||
|
Machine weight
|
300kg-400kg
|
|
|
|
|
||||
|
Air consumption
|
1 ㎥/min
|
1 ㎥/min
|
1.2 ㎥/min
|
1.2 ㎥/min
|
1.5 ㎥/min
|
||||
Main Features
1. Digital screen display with numerical setting and flexible operation.
2. Imported PLC control system and color touching screen, easy operation.
3. Imported film driving system and color sensor enable accurate position.
4. PID independent control of temperature, more suitable for different packaging material.
5. Multiple automatic alarming functions, maximum deduction the loss.
6. Dual encoders enable more stable performance.
2. Imported PLC control system and color touching screen, easy operation.
3. Imported film driving system and color sensor enable accurate position.
4. PID independent control of temperature, more suitable for different packaging material.
5. Multiple automatic alarming functions, maximum deduction the loss.
6. Dual encoders enable more stable performance.
Machine working process
Touch control screen
Set the parameters on the screen,
such as filling weight, speed, etc.
Falling spoon device
you can choose:
manually put spoon on machine mould
or
Spoon drop down one by one
automatically customized(spoons should be stackable)
Heating and stirring hopper
Pour the honey into the hopper,
and automatically heat and stir for easy filling.
Filling device
Automatically measure the required weight
and fill it into the spoon.
Automatic film sucking
Vacuum arm suck and put foils on cups for cup sealing.

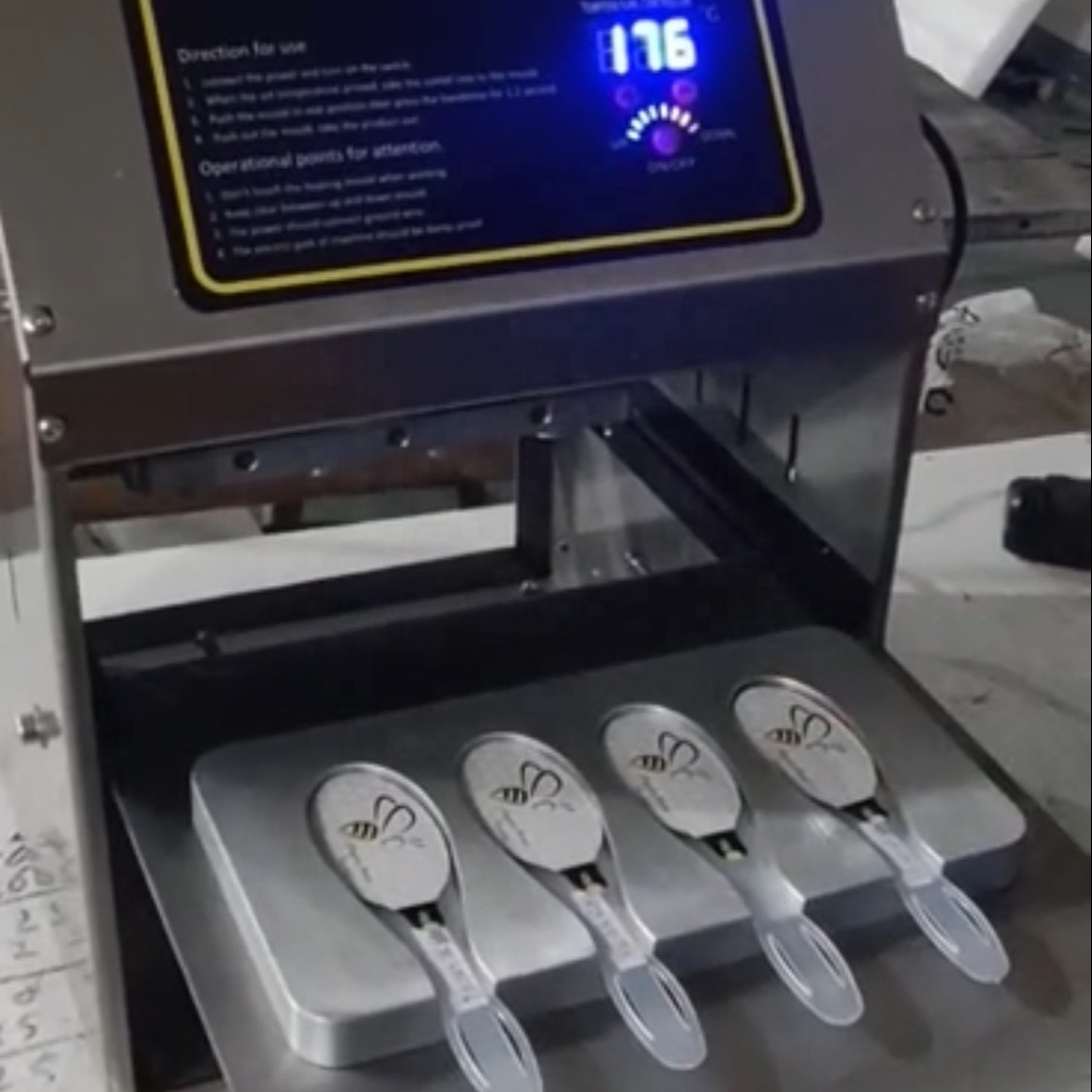

Heating sealing device
Automatic sealing, get perfect honey spoon
Why Choose Us
BEE HONEY SPOON PROJECT
CHINABRETT has team of professionals who delivers solutions for Branding Design,Industrial Production and Filling Sealing Packing Customization. With more than 10 years of experience in concept and industrial Honey Spoon,Aluminum Foil Film,Packing Machine, high quality renders and products that stand out for their attention to detail, offering a premium touch. Our goal is to always bring you a product of desire. Let's talk.Always up for a new challenge.
Collect customer 's need
No matter face to face meeting or online meeting(videos or callling)
Design solution
From Spoons,foil film,sachet bags,roll film design,to machine customization
Parts processing
Spoons mould new opened with client's logo
Machine customization
Machine Assembly
Machine Commissioning
Testing well before shipping
Wooden Box / Wooden Pallets
Standard export packing
