- Product Details
- {{item.text}}
Quick Details
-
Core Components:
-
Inverter
-
Arc Current:
-
20~120 A
-
Rated Duty Cycle:
-
60%
-
Dimensions:
-
295*135*225mm
-
Usage:
-
Welding
-
Voltage:
-
AC230V/1P±15% 50/60HZ
-
Weight (KG):
-
3.2 KG
-
Function:
-
Lift TIG/MMA
-
Hot start:
-
Easy Arc Initiation
-
Efficiency:
-
85%
-
Weld method:
-
Electrode Manal Arc Welding
-
Keyword:
-
Manual Metal Arc Welders Portable
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
MOSDAR
-
Marketing Type:
-
New Product 2023
-
Core Components:
-
Inverter
-
Arc Current:
-
20~120 A
-
Rated Duty Cycle:
-
60%
-
Dimensions:
-
295*135*225mm
-
Usage:
-
Welding
-
Voltage:
-
AC230V/1P±15% 50/60HZ
-
Weight (KG):
-
3.2 KG
-
Function:
-
Lift TIG/MMA
-
Hot start:
-
Easy Arc Initiation
-
Efficiency:
-
85%
-
Weld method:
-
Electrode Manal Arc Welding
-
Keyword:
-
Manual Metal Arc Welders Portable

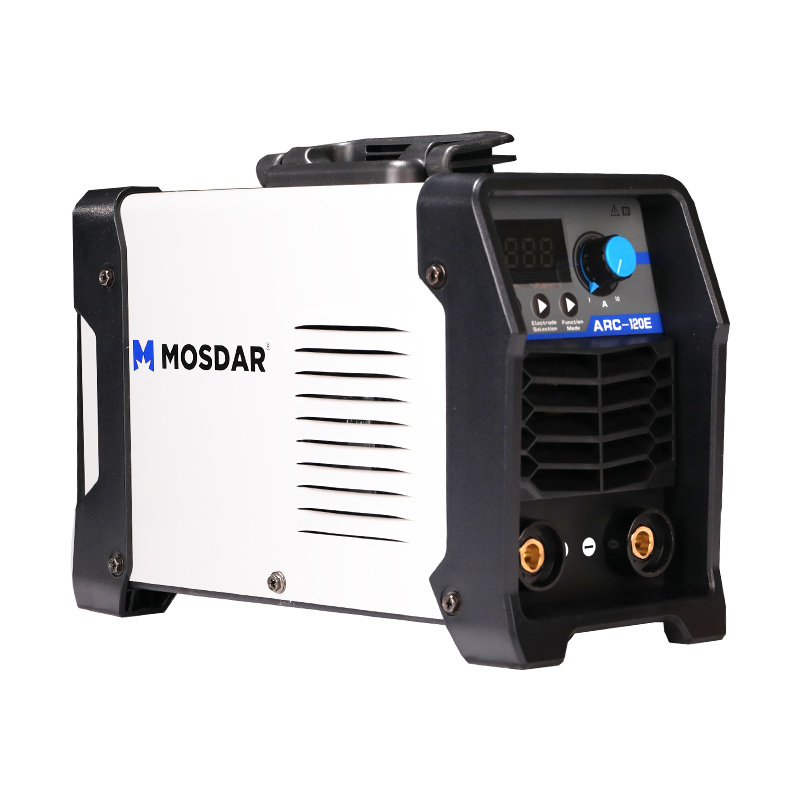

Product Description
Specification
|
Model
|
ARC-120E(Z2H504)
|
|
Input power source
|
AC230V/1P±15% 50/60HZ
|
|
Rated input current(A)
|
23.4
|
|
Rated input power capacity(KVA)
|
5
|
|
Output current range (A)
|
20~120
|
|
O.C.V(V)
|
65
|
|
Duty cycle(%)
|
60
|
|
Efficiency(%)
|
85
|
|
Power factor(cosΦ)
|
0.7
|
|
Protection Class
|
IP21S
|
|
Insulation Class
|
H
|
|
Dimension(mm)
|
295*135*225
|
|
Net Weight(kg)
|
3.2
|
|
Applicable electrode(mm)
|
1.6-3.2
|
