Quick Details
-
Application:
-
Warehouse
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DFX
-
Model Number:
-
DFXSSB1567
-
Material:
-
Q345 Q235
-
Door:
-
Sliding Door
-
Roof:
-
Sandwich panel
-
Product name:
-
Prefabricated Steel Structure Warehouse Workshop Hangar Shed For Sale
-
Wall:
-
Sandwich nel
-
Window:
-
Aluminium Alloy OR PVC Window
-
Purlin:
-
C/Z Galvanized Steel(Q235)
-
Color:
-
Client's Request
-
Sail Material:
-
steel corrugated sheet
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts, Return and Replacement
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Warehouse
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DFX
-
Model Number:
-
DFXSSB1567
-
Material:
-
Q345 Q235
-
Door:
-
Sliding Door
-
Roof:
-
Sandwich panel
-
Product name:
-
Prefabricated Steel Structure Warehouse Workshop Hangar Shed For Sale
-
Wall:
-
Sandwich nel
-
Window:
-
Aluminium Alloy OR PVC Window
-
Purlin:
-
C/Z Galvanized Steel(Q235)
-
Color:
-
Client's Request
-
Sail Material:
-
steel corrugated sheet

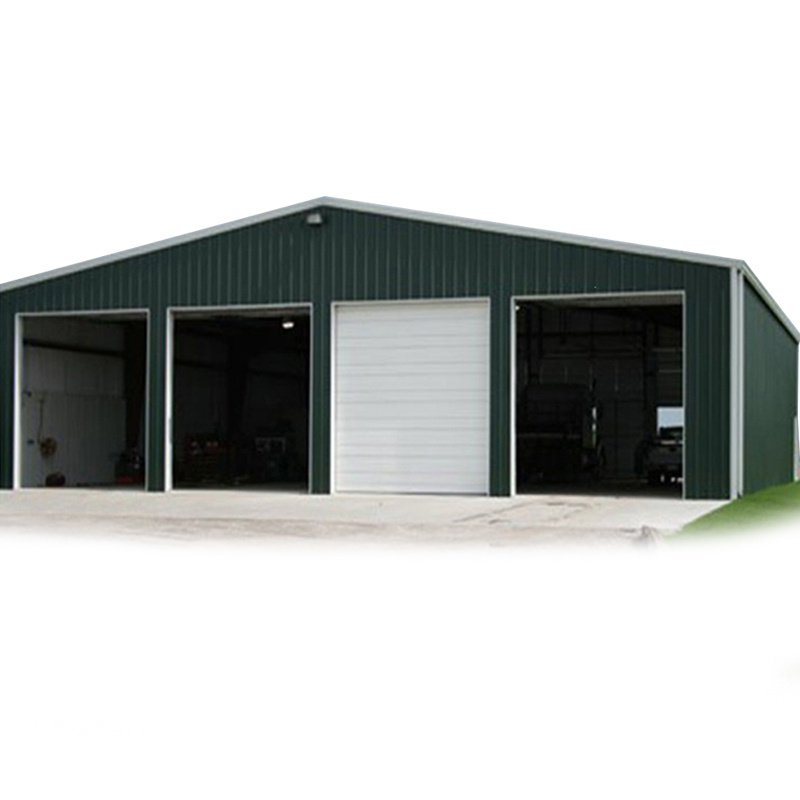

China Customized Prefabricated Steel Structure Warehouse Workshop Hangar Shed For Sale
China Customized Prefabricated Steel Structure Warehouse Workshop Hangar Shed For Sale
2. Specification
|
Items |
Specification | |
| Main Steel Frame | Column | Q235, Q345 Welded H Section Steel |
| Beam | Q235, Q345 Welded H Section Steel | |
| Secondary Frame | Purlin | Q235 C and Z purlin |
| Knee brace | Q235 Angle Steel | |
| Tie Rod | Q235 Circular Steel Pipe | |
| Brace | Q235 Round Bar | |
| Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
| Maintenance system | Roof Panel |
EPS Sandwich Panel /Glass Fiber Sandwich Panel /
Rock Wool Sandwich Panel / Pu Sandwich Panel /Steel Sheet |
| Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
| Accessories | Window | Aluminiumn Alloy Window / PVC Window / Sandwich Panel Window |
| Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
| Rainspout | PVC | |
| Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
| Wind Resistance Grade | 12 Grades | |
| Earthquake-resistance | 8 Grades | |
| Structure Usage | Up to 50 years | |
| Temperature | Suitable temperature.-50°C~+50°C | |
| Certification | CE, SGS,ISO9001:2008,ISO14001:2004 | |
| Finishing Options | Vast array of colors and textures available | |
| Paint Options |
Alkyd paiting, two primary painting, two finish painting
(gray paint, red paint, white paint, epoxy zinc etc.) Or Galvanized. |
|
H-Shaped Steel
The advantages of our products:
high-performance thermal
insulation, ventilation,
moisture-proof materials
provide extremely high
living comforts.
C-Shaped Steel
The advantages of this approach is
durable life long, the production of
high degree of industrialization,
quality and stability. So heavily
used by atmospheric corrosion
is serious and difficult
maintenance of outdoor steel
structure.
Sandwich Panel
Sandwich panel is suitable for prejects with high fireproof requirement. With good sound-proof effect.In addition, noise indoor caused by rain and hail are weakened obviously after sandwich used.
Steel frame structure consists of beams and columns from welded H-shapede steel, hot rolled H-shaped steel. In this frames, the beam and column system takes the gravity load such as dead and live loads..
