Quick Details
-
Brand Name:
-
TMP
-
Voltage:
-
380v or customized
-
Dimension(L*W*H):
-
1400*1120*1650mm
-
Power (kW):
-
15
-
Weight (T):
-
0.22
-
Fix cutter:
-
2 piece
-
Spining Knife:
-
18 piece
-
Rotate speed:
-
520 r/min
-
Approx weight:
-
850kg
-
Certification:
-
CE
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Thailand
-
Mesh size:
-
10mm
-
Marketing Type:
-
New Product 2021
Quick Details
-
Max.Production Capacity (kg/h):
-
500
-
Place of Origin:
-
Guangdong, China
-
Production Capacity (kg/h):
-
120 - 400 kg/h
-
Brand Name:
-
TMP
-
Voltage:
-
380v or customized
-
Dimension(L*W*H):
-
1400*1120*1650mm
-
Power (kW):
-
15
-
Weight (T):
-
0.22
-
Fix cutter:
-
2 piece
-
Spining Knife:
-
18 piece
-
Rotate speed:
-
520 r/min
-
Approx weight:
-
850kg
-
Certification:
-
CE
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Online support
-
Local Service Location:
-
Thailand
-
Mesh size:
-
10mm
-
Marketing Type:
-
New Product 2021

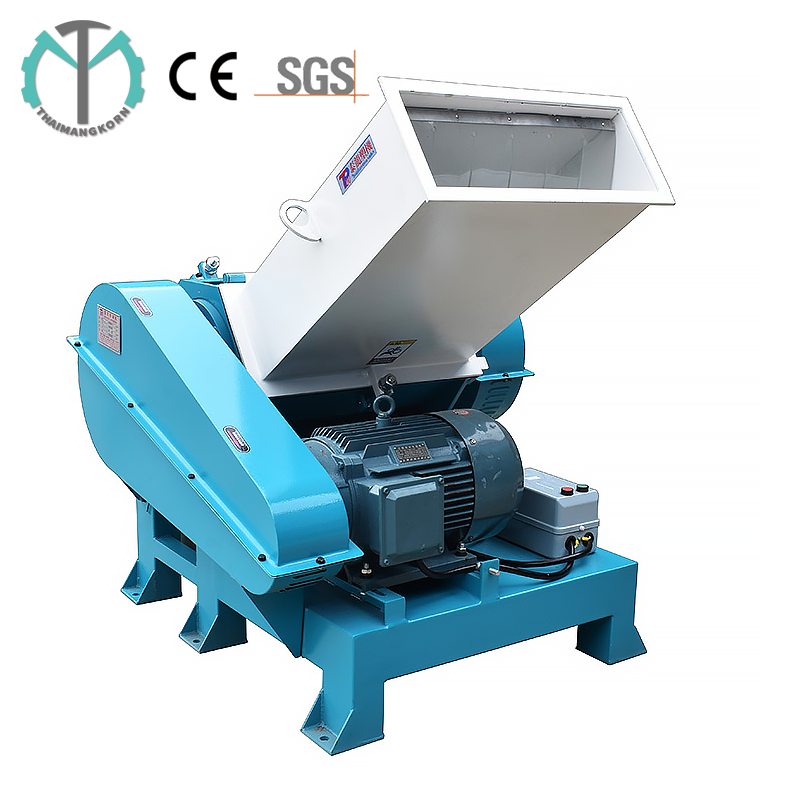

Products Description
Screen unit
a wide range of screens with a variety of configurations and mesh sizes are replaceable based on customer’s production requirements. The paper shredder will automatically stop while opening the screen unit to ensure operator safety. The screen is produced and mounted in sections, allow for easy maintenance.
Rotor
Unique scissor type "V" knife holder design structure. Similar to the shearing method, the broken material is cut into pieces instead of being torn apart. In this way, the pulverized material has good edges and corners, relatively less dust, and the required energy is reduced, thereby increasing the production capacity.
Open type
Outer bearing can be crushed with water, suitable for dry and wet crushing.The bearing seat and the fuselage adopt a separate structure to prevent the lubricating oil in the bearing from entering the crushing cavity and causing crushing pollution; Prevent plastic dust from entering the bearing, and prevent a large amount of heat from being generated during the crushing process, which will affect the bearing life.
Automatic air cylinder
Automatic air cylinder can automatic opening and closing of hoppers, can save manpower, intelligence, and increasing output
Fixed blade
Auxiliary moving knife operation, allowing the shredder to handle harder or higher abrasion materials as well as provide long term, stable operation.
Unique box design（customizable）
The large belly box design can accommodate more materials and produce higher output. It is specially used for crushing and recycling of large and small bottles, chemical barrels, large blue barrels, etc., as well as large plastic shells.
|
Model No.
|
TLG6032
|
TLG6246
|
TLG7146
|
TLG8146
|
|
Crushing caliber
|
600*320mm
|
620*460mm
|
710*460mm
|
810*460mm
|
|
Feeding inlet size
|
580*200mm
|
590*220mm
|
680*280mm
|
780*280mm
|
|
Crushing ability
|
120-400h/kg
|
200-500h/kg
|
250-600h/kg
|
250-650h/kg
|
|
Plates knife QTY
|
(fixed)2+ (rotated)6
|
(fixed)2+ (rotated)6
|
(fixed)4+ (rotated)6
|
(fixed)4+ (rotated)6
|
|
Pipe knife QTY
|
(fixed)2+(rotated)18
|
(fixed)2+ (rotated)18
|
(fixed)4+ (rotated)21
|
(fixed)4+ (rotated)24
|
|
Power
|
50HP
|
30HP
|
30HP
|
40HP
|
|
Rotate speed
|
520r/min
|
520r/min
|
500r/min
|
500r/min
|
|
Mesh size
|
10mm
|
12mm
|
12mm
|
12mm
|
|
Dimensions
|
1400*1120*1650mm
|
1600*1260*1940mm
|
1600*1320*1700mm
|
1600*1410*1700mm
|
|
Weight
|
850kg
|
1350kg
|
1500kg
|
1900kg
|
NOTE
We also get
more
crusher model on sale, please contact us for more information.
Product Application Effect
Different
blades are designed for different materials to improve the recovery efficiency.
Blade material can be upgraded: General--SKP11--D2
