Quick Details
-
After-sales Service Provided:
-
Overseas third-party support available
-
Advantage:
-
AB Glue Mixing
-
Drive mode:
-
Servo motor/ball screw+linear guide rail
-
MOQ:
-
1 SET
-
Work area:
-
400(X)*400(Y)*100(Z) mm
-
Dimension:
-
590(L)*740(W)*681(H) mm
-
XY/Z max load:
-
20kg/10kg
-
Repeatability:
-
±0.005mm
-
WARRNATY:
-
1 year
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Second Intelligent
-
Weight (KG):
-
60
-
After-sales Service Provided:
-
Overseas third-party support available
-
Advantage:
-
AB Glue Mixing
-
Drive mode:
-
Servo motor/ball screw+linear guide rail
-
MOQ:
-
1 SET
-
Work area:
-
400(X)*400(Y)*100(Z) mm
-
Dimension:
-
590(L)*740(W)*681(H) mm
-
XY/Z max load:
-
20kg/10kg
-
Repeatability:
-
±0.005mm
-
WARRNATY:
-
1 year
Product Description

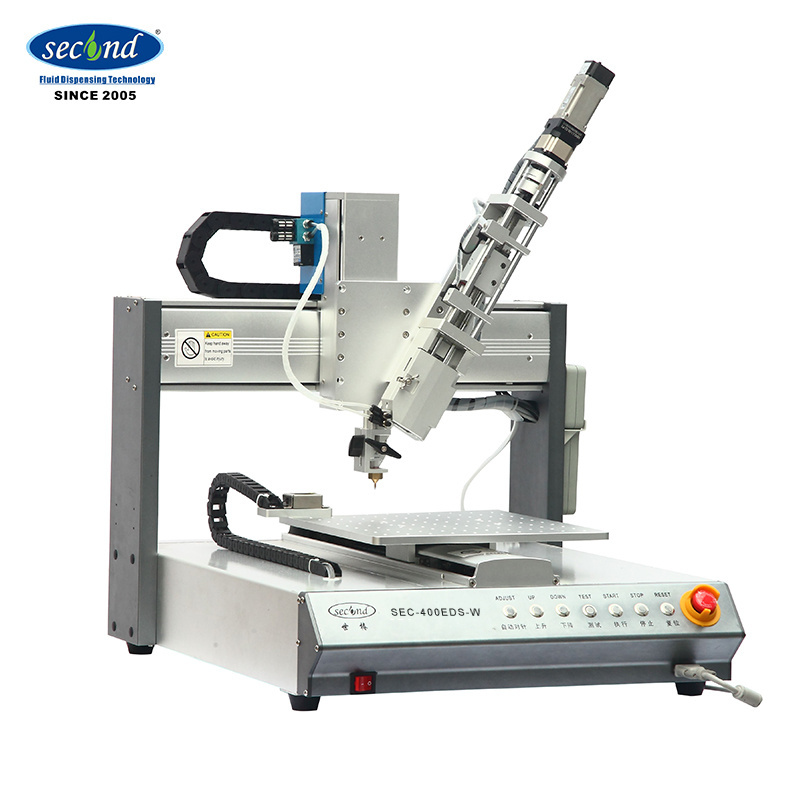

Automatic glue dispensing machine SEC-400EDS-W
1.Easy operation
2.Advanced servo glue supply system
3.Excellent performance
4.Automatic 3 axes dispenser
5.Small-sized economical double-liquid dispenser
1.Easy operation
2.Advanced servo glue supply system
3.Excellent performance
4.Automatic 3 axes dispenser
5.Small-sized economical double-liquid dispenser
Features:
Using volumetric metering technology, the glue is pushed out of the container at a uniform speed, the pressure is stable, and the speed is uniform, which can effectively eliminate the influence of ambient air pressure changes on the glue volume, and the glue flow rate is faster and more stable to ensure that the glue lines are uniform in thickness and do not appear Large and small head phenomenon; with automatic anti-curing function, effectively preventing the glue from curing and clogging the needle; the glue axis can be configured according to the size of the glue package; support 50ml, 250ml, 400ml packaging and other two-component glue in different proportions.
Applied glue:
applied to 50ml package two-component glue with mixing ratio such as 1：1，2：1，4：1，5：1，10：1 ; Applied to 400ml package two-component glue with mixing ratio 1：1 and 2：1.
Application industry:
Specification
|
Model
|
SEC-400EDS-W
|
SEC-500EDS-W
|
|
|
Work area
|
400(X)╳400(Y)╳100(Z)mm
|
500(X)╳500(Y)╳100(Z)mm
|
|
|
Size
|
590(L)*740(W)*681(H)mm
|
690(L)*840(W)*681(H)mm
|
|
|
Y/Z Max load
|
20kg/10kg
|
|
|
|
Travel speed
|
400mm/sec(XY)/200mm/sec(Z)
|
|
|
|
Drive mode
|
Servo motor + lead screw + precise linear guide rail
|
|
|
|
Feed system
|
servo motor+ lead screw
|
|
|
|
Dispensing mode
|
SMC needle valve
|
|
|
|
XYZ repeatability
|
±0.02mm
|
|
|
|
Resolution
|
0.01mm
|
|
|
|
Program capacity
|
999 parameter files(65535 points per file)
|
|
|
|
Operation system
|
LCD panel /Teach pendant
|
|
|
|
Motor
|
Japan servo motor
|
|
|
|
Movement pattern
|
4 axis point to point, continuous line, arc
|
|
|
|
I/O signal ports
|
4 inputs/4 outputs
|
|
|
|
Power supply
|
AC220V 50/60Hz 0.9kw
|
|
|
|
Work condition
|
Temperature 0-40℃; relative humidity 20-90%
|
|
|
|
Weight
|
About 80kg
|
About 100kg
|
|
|
Note
|
Power pneumatic cylinder for two component glues.
|
|
|
Packing & Delivery
Generally, we pack our machine with proper ply-wooden box. However,
if client has special requirement, we can customize.
