Quick Details
-
Max. Loading Capacity:
-
1600
-
Weight (KG):
-
340 KG
-
Place of Origin:
-
China
-
Brand Name:
-
HONGDI
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3500*1158*1950
-
Power (kW):
-
7.5 kW
-
Marketing Type:
-
New Product 2023
-
Keyword:
-
Powder Blender
-
Machine Type:
-
Dispersion Blender Mixer Machine
-
Application scope:
-
Chemical Cosmetic Food
-
Function:
-
Mixing Raw Material
-
Usage:
-
Mixing Powder Proucts
Quick Details
-
Barrel Volume (L):
-
4800
-
Max. Loading Volume (L):
-
1600 L
-
Range of Spindle Speed(r.p.m):
-
0 - 25 r.p.m
-
Max. Loading Capacity:
-
1600
-
Weight (KG):
-
340 KG
-
Place of Origin:
-
China
-
Brand Name:
-
HONGDI
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
3500*1158*1950
-
Power (kW):
-
7.5 kW
-
Marketing Type:
-
New Product 2023
-
Keyword:
-
Powder Blender
-
Machine Type:
-
Dispersion Blender Mixer Machine
-
Application scope:
-
Chemical Cosmetic Food
-
Function:
-
Mixing Raw Material
-
Usage:
-
Mixing Powder Proucts
Product Description

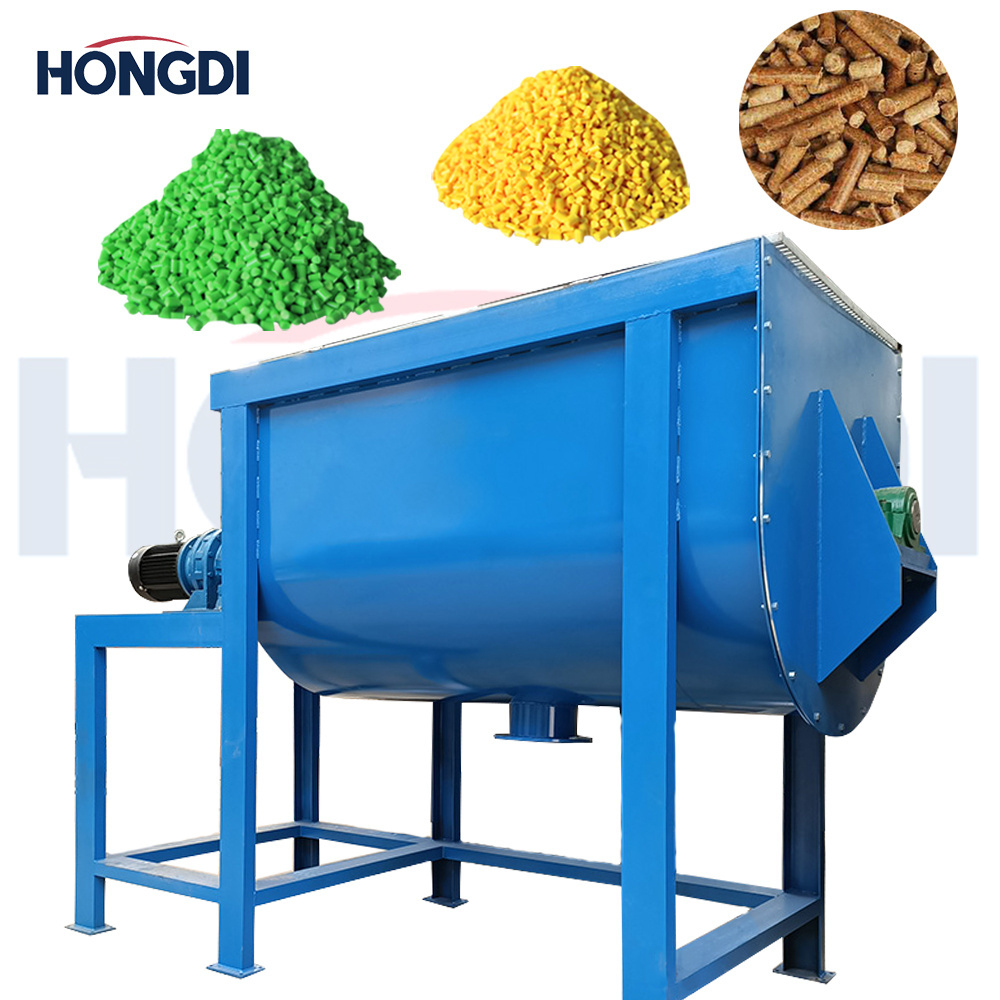

Stainless steel U-type mixer is a machine to mix two or more powder materials evenly. The product as a new type of professional mixing and blending equipment, horizontal mixer drive spindle arranged on the double-layer spiral blade, the external blade will be the material to the middle of the conveyor, the internal blade will be the material to the outside of the conveyor. When the mixing device is working, the inner screw drives the material near the center of the shaft to do axial rotation, and the axial direction is pushed from inside to both sides, and the outer screw drives the material near the wall of the barrel to do axial rotation, and the axial direction is pushed from both sides to inside, so that this mixture can be evenly mixed in a short time, and the motor and the mixing spindle are directly connected with each other through the cycloid speed reducer. Apply to food, chemicals, feed, ceramics, refractory materials putty paste, real stone paint, dry powder, putty, and other solid-solid (i.e. powder and powder) mixing.
Areas of application
Analytic diagram
Thicken the barrel
Source factory material selection is guaranteed
Enlarge mixing blades
More uniform mixing, cleaner diacharge
Stainless steel butterfly valve outlet
Smooth discharging and easy operation, high production efficiency
Copper corte motor
Greater bearing capacity and longer service life
|
model
|
Mixing time
|
Barrel LWH(mm)
|
Electric machine(kw)
|
Entirety LWH(mm)
|
Mixing volume（L）
|
|||||
|
HDJX-100
|
3-5min
|
875/500/525
|
1.5
|
1780/559/912
|
170
|
|||||
|
HDJX-200
|
3-6min
|
1150/660/695
|
3
|
2016/742/1249
|
400
|
|||||
|
HDJX-300
|
4-6min
|
1320/760/790
|
3
|
2298/846/1424
|
600
|
|||||
|
HDJX-500
|
6-9min
|
1550/850/900
|
5.5
|
2563/958/1624
|
900
|
|||||
|
HDJX-1000
|
8-12min
|
1890/1050/1200
|
7.5
|
3500/1158/1950
|
1600
|
|||||
|
HDJX-2000
|
10-15min
|
2200/1250/1450
|
11.5
|
3800/1400/2350
|
2750
|
|||||
|
Note:There is an error of 1-3cm in the manual measurement size which is subject to the actual product
|
|
|
|
|
|
|||||
Factory photos
Zhengzhou Hongdi Machinery Co., Ltd. is located in Zhengzhou City, Henan Province, China, which has a strong industrial base and a long history. The company has advanced production equipment and perfect quality management system. The company mainly deals with food machinery, agricultural and animal husbandry machinery, construction machinery, environmental protection machinery and all kinds of stainless steel equipment.
The main products are stainless steel drum mixer, stainless steel U-type mixer, pulverizer, powder granule mixer.
Team 100+ people Sales team 30+ people
Engineer team 16+ people After-sales team 10+ people
Our products sell well all over the world, with cooperative customers in nearly more than 150 countries, we have a good reputation in the international market and are well received by customers.
We provide you with high quality one-stop purchasing service, Hongdi Machinery welcomes your visit!
The main products are stainless steel drum mixer, stainless steel U-type mixer, pulverizer, powder granule mixer.
Team 100+ people Sales team 30+ people
Engineer team 16+ people After-sales team 10+ people
Our products sell well all over the world, with cooperative customers in nearly more than 150 countries, we have a good reputation in the international market and are well received by customers.
We provide you with high quality one-stop purchasing service, Hongdi Machinery welcomes your visit!
Packaging & Delivery
Group photo of customers
Certificate Honor
FAQ
Q1: Where is your factory located?
A1: Our factory is located in Zhengzhou, China. If you have a travel plan, we warmly invite you to visit our factory.
Q2: Why choose your products?
A2: We have 15 years of professional production experience, a professional team and advanced equipment. Product quality is guaranteed and price is favorable.
Q3: After receiving the machine, are there installation instructions? What is the warranty period?
A3: Yes, we have a professional after-sales team that will promptly solve any problems you encounter during installation and production. We provide one year warranty service.
Q4: It is my first time to import, if I order from your company, how can I trust your company and make sure I get the goods?
A4: We are Alibaba legal certified company (VIP), we have a large amount of money as credit guarantee, you can rest assured to purchase.
