Quick Details
-
Function:
-
charge
-
Brand Name:
-
JJY
-
Model Number:
-
JJY420020
-
output voltage and current:
-
29.4v2a
-
Maximum Output Power:
-
58.8W
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Battery charger
-
Color:
-
Black
-
Warranty:
-
1 Year
-
Package:
-
Brown Box
-
Plug:
-
UK AU EU UK Plug
-
Connect:
-
5.5*2.1mm
-
Power:
-
58.8W
-
Logo:
-
Customer Logo
-
MOQ:
-
100pcs
Quick Details
-
Type:
-
Electric, Desktop Charger
-
Port:
-
DC
-
Use:
-
Scooter, Battery
-
Function:
-
charge
-
Brand Name:
-
JJY
-
Model Number:
-
JJY420020
-
output voltage and current:
-
29.4v2a
-
Maximum Output Power:
-
58.8W
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Battery charger
-
Color:
-
Black
-
Warranty:
-
1 Year
-
Package:
-
Brown Box
-
Plug:
-
UK AU EU UK Plug
-
Connect:
-
5.5*2.1mm
-
Power:
-
58.8W
-
Logo:
-
Customer Logo
-
MOQ:
-
100pcs

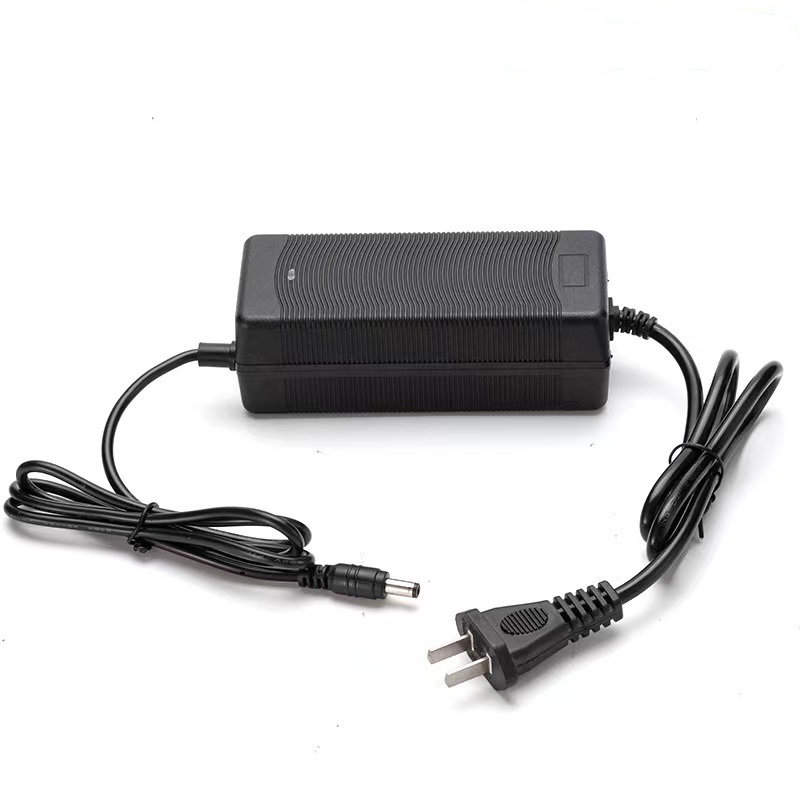

100-240vac to dc Li-ion battery charger 29.4V 2A with 5.5*2.1mm dc connector
| Input | 110V/220Vac 50/60Hz | Input plug |
EU US UK AUS JP Korea Italy Brazil India South Africa |
| Output | 29.4v 2a | Charge mode | CC--CV Mode(Automatic) |
| Standard Charge voltage |
4.2v/cell; 1s: 4.2v; 2s: 8.4v; 3s: 12.6v; 4s: 16.8v; 5s: 21v; 7s 24v: 29.4v; 8s: 33.6v; 10s 36v: 42v; 12s: 50.4v; 13s 48v: 54.6v; 14s: 58.8v; 16s 60v: 67.2v; 20s 72v: 84v |
||
| Led Indicator |
Red--charging; Green--full charged; |
Protection |
Over-current, Over-voltage, Short-circuit, Polarity reverse |
| Suitable Battery | Li-ion battery pack | Efficiency | >82% |
| Output connector | customized(as below) | Size & Weight | 139*62*35mm 0.4kg |
| Hi-Pot | 3000Vac/60S | MTBF | 50000hrs |
| Operating Temperature | -20℃~ +40℃ | Storage Temperature | -40℃~ +70℃ |
| Certification | CE FCC UL SAA GS KC PSE ROHS | Lead time |
sample time: 4-8 days order time: 14-18 days |
| Warranty | 2 Years | Package | 43*35*35cm 50pcs/ctn |
| Caution: kindly pls pick up the input plug and output connector before ordering chargers. | |||
About this item
- Universal power supply charger with 5.5mm 1 prong plug for 29 Volt Lithium battery. Compatible with Gotrax and other brands.
- Fast and Smart: Fast charge with high current. Green light means full charged or disconnected. Don't use for Lead Acid batteries.
- Extend Battery Life: CC-CV working mode optimize the life span battery Auto-stop when full charged. Just plug in and it will charge and maintain your batteries automatically.
- Safe: 6*Protections to prevent unsafe and abnormal conditions. Input: 100-240VAC, 50/60Hz. Output: 29.4V 2A.
- Reliable Usage: Eco-friendly, High efficiency, light weight, Heavy duty.
Does this charger work for your battery?
Two steps to check:
- Check your battery type: Lithium /Li-ion battery packs only.
- Check your connector: 5.5mm 1 prong DC plug.
Our charger is qualified by test lab. They have passed serious inspections before you receive it.
Please test the healthy of your battery before charging.
Q: What to do when charger gets GREEN but never turns RED?
- Check if there’s anything wrong with your battery.
- Check if the voltage of the charger fits your battery.
- Check if the battery is well connected to the charger.
