Quick Details
-
Material:
-
Stong Box
-
Product name:
-
AD402
-
Port size:
-
1/2"
-
Fluid:
-
Air
-
Proof Pressure:
-
1.6mpa/230psi
-
Ambient & fluid temperature:
-
0~60℃
-
Nominal filtration rate:
-
25 M
-
Adjustable Pressure range:
-
0.15~1.2MPa
-
Body Material:
-
Aluminum Alloy
-
Flow rate(L/Min):
-
3400
-
After Warranty Service:
-
Video technical support
Quick Details
-
Weight (KG):
-
0.7
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONNT
-
Material:
-
Stong Box
-
Product name:
-
AD402
-
Port size:
-
1/2"
-
Fluid:
-
Air
-
Proof Pressure:
-
1.6mpa/230psi
-
Ambient & fluid temperature:
-
0~60℃
-
Nominal filtration rate:
-
25 M
-
Adjustable Pressure range:
-
0.15~1.2MPa
-
Body Material:
-
Aluminum Alloy
-
Flow rate(L/Min):
-
3400
-
After Warranty Service:
-
Video technical support

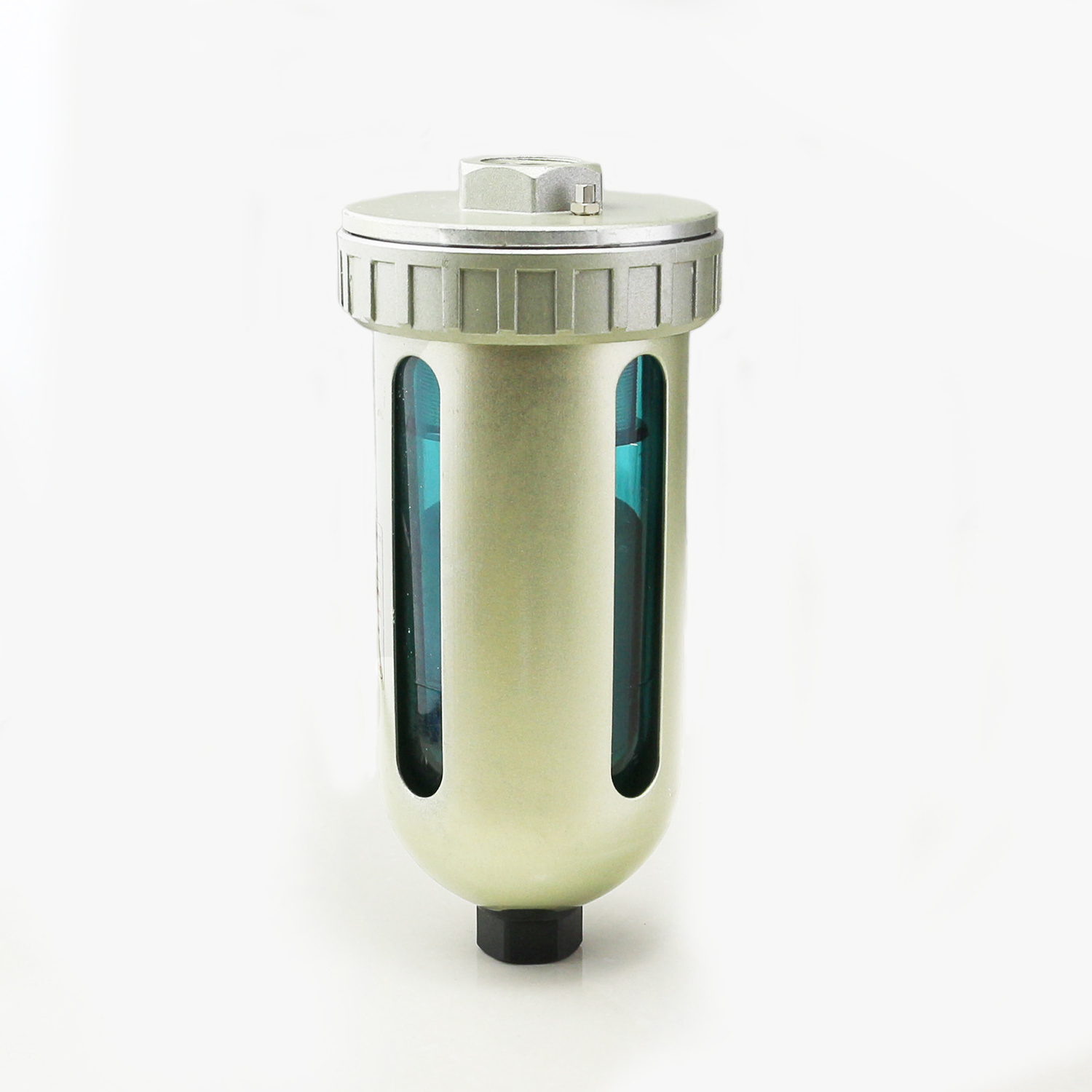

SMC Auto Drain Device 1/2 Inch AD402 Pneumatic Drain Air Compressor Water Trap Auto Drain Valve for Air Compressor
Ordering Code
AD - 402
Model Thread
Auto drainer 402 04:1/2''
Specification
| Model | AD402 | |
| Fluid | Air | |
| Proof pressure | 1.5MPa | |
| Max.operating pressure | 1.0MPa | |
| Operating pressure range | 0.1 to 1.0MPa | |
| Ambient and fluid temperature | -5 to 60℃(No freezing) | |
| Port size | 1/2 | |
| Drain port size | 3/8 | |
