Quick Details
-
Brand Name:
-
FCTEL
-
Model Number:
-
FCM-G8Q4
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
SFP Network Switch
-
Weight:
-
1.7kg/pcs
-
Power supply:
-
AC and DC
-
Size:
-
133mmx 120mmx 50.0mm
-
Working temperature:
-
-40°C ~ 85°C
-
Warranty:
-
3Years
-
Connector Type:
-
8 10/100/1000M RJ45 ethernet port,2* 100M/1000M SFP port,1Consoleport
-
MOQ:
-
1 PCS
-
OEM:
-
Yes
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
56G
-
Brand Name:
-
FCTEL
-
Model Number:
-
FCM-G8Q4
-
Place of Origin:
-
Zhejiang, China
-
Product name:
-
SFP Network Switch
-
Weight:
-
1.7kg/pcs
-
Power supply:
-
AC and DC
-
Size:
-
133mmx 120mmx 50.0mm
-
Working temperature:
-
-40°C ~ 85°C
-
Warranty:
-
3Years
-
Connector Type:
-
8 10/100/1000M RJ45 ethernet port,2* 100M/1000M SFP port,1Consoleport
-
MOQ:
-
1 PCS
-
OEM:
-
Yes
Product Description

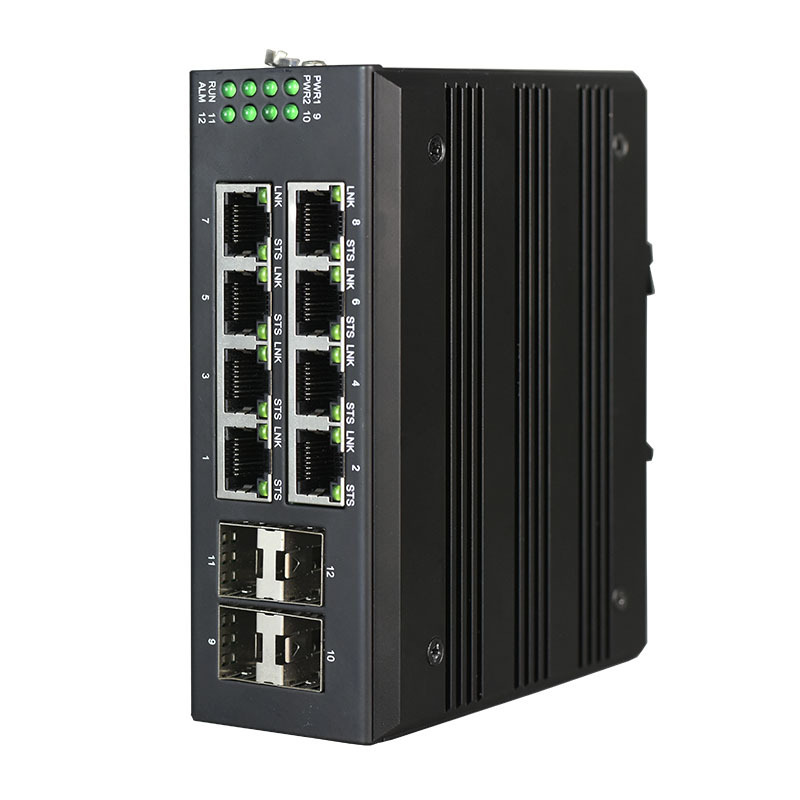

8GE+2SFP
8GE+4SFP
This series of products adopts industrial rail design, 8GE+4SFP network switch is a new generation of multi-service access network management Gigabit redundant Ethernet switch, with high integration, rich functions, simple and convenient, etc., representing the industry The highest level. It contains 8 Gigabit electrical ports and 4 Gigabit optical ports, which is especially suitable for occasions with large data streams such as video transmission. Support the two-layer management protocol required by the rich industrial switch applications, support the ITU G.8032 redundant ring network protocol, form a cascaded network, single ring, tangent ring network and other topological structures, self-healing time <20ms, guarantee The real-time and stability of the network. The switch adopts mature technology and open network standards, adapts to low temperature and high temperature, has strong anti-electromagnetic interference, anti-salt spray, anti-vibration and anti-shake, meets the harsh working environment requirements of industrial sites, and provides efficient, reliable and fast for the industrial Internet of Things solution;
Specification
|
Product number
|
FCM-G8Q4
|
|
Supported protocols
|
IEEE802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE802.1q、IEEE802.1p、IEEE802.1z、IEEE802.1d、IEEE802.1s、IEEE802.1w、IEEE802.1ax、
IEEE802.1ak |
|
Maximum frame length
|
10K
|
|
Port number
|
8*10/100/1000m RJ45 ports,4*100M/1000M optical interfaces with SFP, 1*Console port
|
|
Network media
|
1000Base-LX: Long wavelength laser (1310nm) is used to cross multi-mode and single-mode fiber. The maximum distance of multi-mode
fiber is 550m, and the single mode is 20-120km. 1000Base-SX: the maximum transmission distance of 62.5 m multi-mode fiber is 275m, and the maximum transmission distance of 50 m multi-mode fiber is 550 m. 10Base-T: UTP of class 3 or above; (The maximum transmission distance is 200m) 100Base-TX: class 5 UTP; (Supports maximum transmission distance of 100m) 1000Base-T: CAT-5E UTP or CLASS 6 UTP (supports maximum transmission distance of 100m) |
|
Vlans address table
|
4K
|
|
The MAC address table
|
8K
|
|
The cache
|
4Mbits
|
|
The back of bandwidth
|
56Gbit
|
|
Filtering and forwarding rates
|
10 mbps: 14880 pp
100 mbps: 148800 pp 1000 mbps: 1488000 pp |
|
Working environment
|
Storage temperature: -40℃ ~ 85℃; Storage humidity 0% ~ 90% does not coagulate
Operating temperature: -40℃ ~ 85℃; Working humidity 0% ~ 90% does not coagulate |
|
MTBF
|
＞100,000 hours
|
|
Power consumption
|
Power consumption: maximum 10W
|
|
Power supply
|
Redundant dual power input DC9-48V/AC9-48V, power consumption <15W
Overload protection: support; reverse connection protection: support; redundancy protection: support Access terminal: 4-core 5.08mm pitch plug-in terminal |
|
Product Size
|
Appearance structure: 133mm (length) x 120mm (width) x 50.0mm (height)
|
|
Weight
|
1.7Kg
|
Application
When there is a fiber optic fault, the system will rebuild the network link within 20ms to ensure the normal communication of the system and realize the self-healing protection function of bus signal transmission. The system will automatically recover after the network fault is eliminated.
Features
1.
Industrial guideway design, specially designed for harsh industrial environment;
2.
It can support 8-channel Gigabit eth port and 2 gigabit optical interface of SFP;
3.
Each electric port or optical port supports standard ERPs ring network protocol, and the self-healing time is less than 20ms;
4.
Support port bandwidth limit, port flow control, broadcast storm suppression;
5.
Support web, CLI and telnet management functions;
6.
Power failure alarm and loop alarm;
7.
Provide console debugging;
8.
It can support POE (POE +) equipment（optional））;
9.
Management function:
The management mode of CLI, web and SNMP is supported
It supports port speed limit based on inress / egress, half duplex back pressure flow control and 802.3x full duplex flow control
The storm suppression function based on broadcast, multicast and unknown unicast is supported
It supports IEEE 802.1Q 4K VLAN and QinQ
Support port image, syslog, ping command, etc
It supports cos, DSCP, 8 queues, WRR, SP, WFQ scheduling mode, and policy QoS
Support port traffic statistics and online upgrade
It supports STP / RSTP, MSTP, EAPs and ERPs
Support IGMP snooping V1 / V2 / V3 and GMRP
It supports manual aggregation and static / dynamic LACP protocol
It supports one way relay alarm, RMON management and trap alarm
It supports DHCP snooping, option 82 and 802.1x
It supports hierarchical user management and ACL access control list
It supports DDoS and port based MAC filtering / binding
10.
The Ethernet interface is provided with lightning protection, and the lightning protection meets the standard of GB / t17626.5 (iec61000-4-5) short-circuit current wave of 10 / 700 μ s and open circuit peak output voltage of 6kV;
11.
It supports wide range AC / DC input (9v-48v), internal isolation, redundant dual power input, overload protection and anti reverse connection protection;
12.
Meet the requirements of industrial class IV electromagnetic compatibility;
13.
Super lightning protection function: anti lightning, anti induction high voltage, anti surge, no fan, high efficiency heat dissipation, reduce repair time;
14.
IP40 shell protection grade, able to withstand the test of harsh environment, guide rail or wall mounted installation;
17.
Wide temperature type: working temperature - 40 ℃ ~ + 85 ℃;
