Quick Details
-
Brand Name:
-
JYM
-
Dimension(L*W*H):
-
Varies according to model
-
Weight:
-
10000 KG
-
Marketing Type:
-
New Product 2023
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
Advantage:
-
High Efficiency Low Energy
-
How many models:
-
7 models
-
Factory visit:
-
Arrange nearby
-
technical data:
-
Consult the store owner to obtain
-
Feeding size:
-
125-1020mm
Quick Details
-
Application:
-
for crushing all kinds of ores, stones and rocks
-
Capacity(t/h):
-
35-550t/h
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
JYM
-
Dimension(L*W*H):
-
Varies according to model
-
Weight:
-
10000 KG
-
Marketing Type:
-
New Product 2023
-
Test&Installation:
-
Senior Professional Engineers Assigned
-
Advantage:
-
High Efficiency Low Energy
-
How many models:
-
7 models
-
Factory visit:
-
Arrange nearby
-
technical data:
-
Consult the store owner to obtain
-
Feeding size:
-
125-1020mm
Products Description

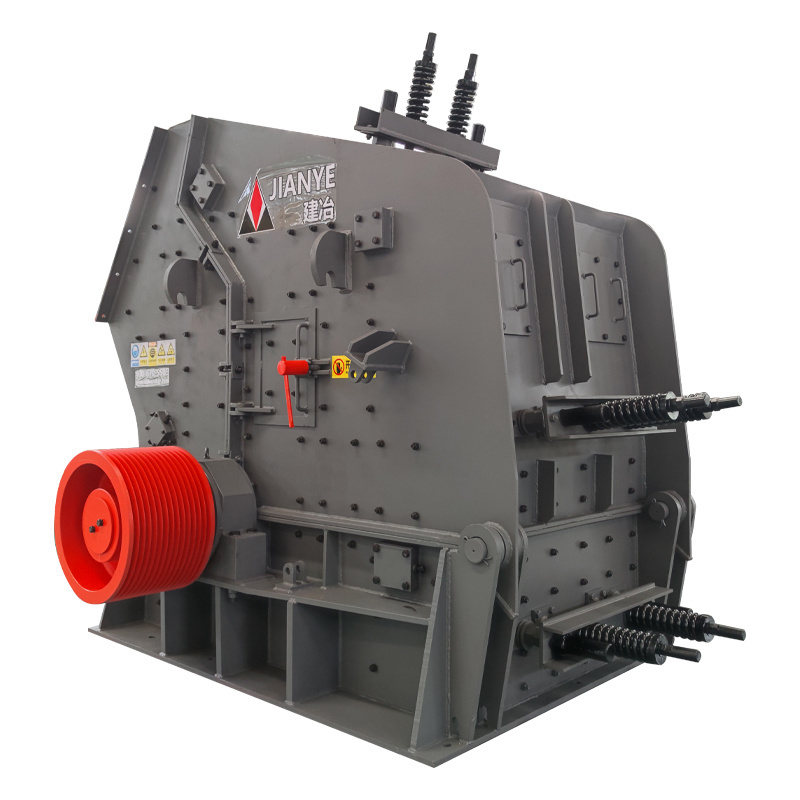

Impact crusher
The impact crusher can handle all kinds of materials with particle size less than 300 mm and compressive strength no more than 260 MPa. It has the characteristics of large crushing ratio, high crushing efficiency, cube shape and selective crushing. This series of products are divided into three categories: mining, cement and concrete industry. Crusher equipment is suitable for ore with various compressive strength.
Product Paramenters
Feeding size： <500mm
Capacity： 37-550T/h
Application field： Pf impact crusher metallurgy, mining, cement, chemical and ceramic industries, as well as highway
Capacity： 37-550T/h
Application field： Pf impact crusher metallurgy, mining, cement, chemical and ceramic industries, as well as highway
construction, water conservancy engineering, construction gravel, sand production and other fields.
Scope of application：The impact crusher is suitable for medium crushing and fine crushing of various soft and medium
Scope of application：The impact crusher is suitable for medium crushing and fine crushing of various soft and medium
hard ores, such as limestone, feldspar, calcite, talc, coal gangue, etc
It can crush more than 700 kinds of materials
Working principle
During operation, driven by the motor, the rotor of the impact crusher rotates at a high speed. After the material enters, it
collides with the plate hammer on the rotor, and then it is hit back to the lining plate to crush again, and finally discharged
from the discharge port. The stone directly falls into the high-speed rotating turntable from the upper part of the machine; under the action of high-speed centrifugal force, it collides with the flying stones around the turntable in an umbrella way, resulting in high-speed collision and high-density crushing. After hitting each other, the stones will form eddy current movement between the turntable and the shell, causing many times of mutual impact, friction and crushing, and discharge directly from the bottom. Form a closed-circuit multiple circulation, by the screening equipment control to achieve the required particle size
collides with the plate hammer on the rotor, and then it is hit back to the lining plate to crush again, and finally discharged
from the discharge port. The stone directly falls into the high-speed rotating turntable from the upper part of the machine; under the action of high-speed centrifugal force, it collides with the flying stones around the turntable in an umbrella way, resulting in high-speed collision and high-density crushing. After hitting each other, the stones will form eddy current movement between the turntable and the shell, causing many times of mutual impact, friction and crushing, and discharge directly from the bottom. Form a closed-circuit multiple circulation, by the screening equipment control to achieve the required particle size
Equipment advantage
1. The easily worn parts such as hammer, impact plate and liner of PF impact crusher are made of special hard and
wear-resistant materials, which are small in size, light in weight and easy to replace accessories.
2.The product shape of PF impact crusher is cubic, and the size of discharge granularity is adjustable.
3.Pf impact crusher has high crushing chamber, high hardness, large block size and less stone powder.
4.Pf impact crusher has novel and unique structure and stable operation.
wear-resistant materials, which are small in size, light in weight and easy to replace accessories.
2.The product shape of PF impact crusher is cubic, and the size of discharge granularity is adjustable.
3.Pf impact crusher has high crushing chamber, high hardness, large block size and less stone powder.
4.Pf impact crusher has novel and unique structure and stable operation.
5.Pf impact crusher has the advantages of low energy consumption, high output and high crushing ratio.
Product packaging
|
Model
|
Rotor specification (mm)
|
Inlet size (mm)
|
Feed size (mm)
|
Capacity(t/h)
|
Power (KW
|
Overall dimensions(mm)
|
|
PF-1007
|
Φ1000*700
|
400*730
|
≤300
|
35-50
|
37-55
|
2400*1560*2600
|
|
PF-1010
|
Φ1040*1000
|
400*1080
|
≤350
|
50-80
|
55-75
|
2440*2250*2650
|
|
PF-1210
|
Φ1250*1050
|
400*1080
|
≤350
|
60-120
|
110-132
|
2700*2340*2900
|
|
PF-1214
|
Φ1250*1400
|
400*1430
|
≤350
|
80-160
|
132-160
|
2700*2690*2890
|
|
PF-1315
|
Φ1300*1500
|
860*1520
|
≤350
|
120-180
|
180-260
|
3100*3280*2670
|
|
PF-1515
|
Φ1550*1500
|
900*1650
|
≤350
|
200-260
|
260-280
|
3400*3500*3280
|
|
PF-1520
|
Φ1500*2000
|
980*2040
|
≤350
|
300-550
|
355-400
|
3550*3700*3280
|
---------------------------
More Products
---------------------------
Jaw Crusher
Impact Crusher
Cone Crusher
Grinding Mill
Sand Making Machine
Mobile Crusher Plant
customer site
Our machine has been sold to Germany, Australia, Japan, Mexico, Philippines, Indonesia, Russia, Uganda, Uzbekistan, Poland, etc. and our products are well received by customers.
All machine has a 1-year quality assurance. As long as the machine has any problem (non-human factors) within one year, we will repair or change with new one for free. Please rest assured to buy and use!
