Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HONGXIN
-
Motor:
-
Honda / YAMAHA gasoline engine
-
Type:
-
Shaft/Belt transmission drive
-
Line speed:
-
slow 4m/min/ fast 24m/min
-
Pulling Force:
-
5 tons
-
Rope type:
-
wire rope
-
Power supply:
-
6HP 9HP 13HP
-
Drum:
-
single or double
-
Start mode:
-
hand pulling or hand cranking
-
Drive mode:
-
belt or axis
-
Package:
-
wooden case
Quick Details
-
Power:
-
710W, 1400W, 1200W
-
Application:
-
for tower erection, stringing in electric power line construction
-
Voltage:
-
120V, Other
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HONGXIN
-
Motor:
-
Honda / YAMAHA gasoline engine
-
Type:
-
Shaft/Belt transmission drive
-
Line speed:
-
slow 4m/min/ fast 24m/min
-
Pulling Force:
-
5 tons
-
Rope type:
-
wire rope
-
Power supply:
-
6HP 9HP 13HP
-
Drum:
-
single or double
-
Start mode:
-
hand pulling or hand cranking
-
Drive mode:
-
belt or axis
-
Package:
-
wooden case
Product Description

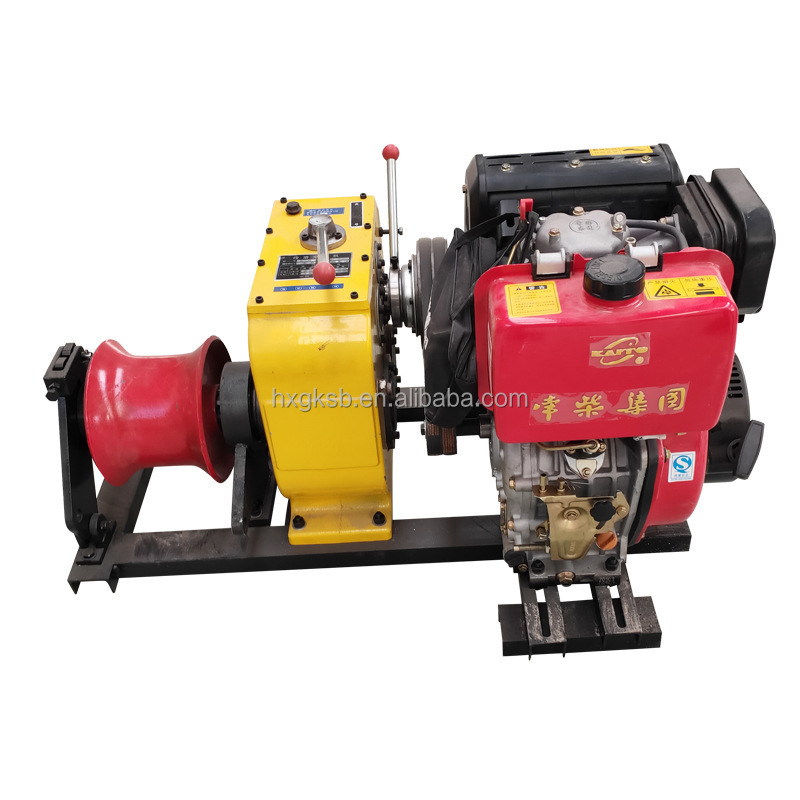

3T 5T 8T Belt Driven and Shaft driven Powerful Portable Cable Winch
Customizable Gasoline engine,Diesel engine and Electirc Motor
Product Parameters
| Core Grinding Winch(Belt Drive) | ||||||||
| Model | Rotation direction | Gear | Rotational speed(RPM) | Traction Speed(m/min) | Tractive force(T) | Power |
Outline Size
(mm) |
Weight
(kg) |
| JJQ-30 Gasoline engine | forwarder | slow | 9.0 | 11.0 | 3.0 | 6HP | 840x450x500 | 82 |
| fast | 16.0 | 6.6 | 1.8 | 780x450x500 | 85 | |||
| reversal | reverse | 7.5 | 3.3 | No Lifting | ||||
| JJC-30 170F Diesel engine | forwarder | slow | 11.5 | 5.0 | 3.0 | 4HP | 840x600x500 | 108 |
| fast | 21.0 | 9.0 | 1.8 | |||||
| reversal | reverse | 10.0 | 4.5 | No Lifting | ||||
| JJD-30 Electirc Motor | forwarder | slow | 8.5 | 4.0 | 3.0 | 3kW | 770x600x460 | 108 |
| fast | 10.5 | 6.5 | 1.8 | |||||
| reversal | reverse | 7.0 | 3.0 | No Lifting | ||||
Application
Engine powered winch is widely used in electric power, telecommunications, municipal engineering construction tight line group tower or mobile pay-off.
