Quick Details
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service
-
Brand Name:
-
JAC
-
Model:
-
CLW5160XLC5
-
Place of Origin:
-
Suizhou,Hubei ,China
-
Dimensions (L x W x H) (mm):
-
7000*2220*3400
-
Box Dimensions (L x W x H) (mm):
-
5050*2040*2050
-
Temperature Range:
-
-25℃ ~ -5℃
-
Name:
-
Refrigerated truck
-
Freeze:
-
fish,chicken,yoghourt,honey,fruit,ice cream
-
Drive system:
-
Left hand or right hand
-
Function:
-
Ice car delivery and storage
-
Refrigerated unit:
-
Thermo King,chinese brand
-
Van truck material:
-
fiberglass, steel plate,carbon steel
-
Truck color:
-
white,blue,red,black,yellow,green
-
Chassis brand:
-
Dongfeng,Foton,Howo,Jac,Jmc,Faw
-
Van truck wheelbase:
-
3360mm, 3308mm
-
Ms.Joyce:
-
+008613545915671
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
Euro 4
-
Gross Vehicle Weight:
-
11495
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service
-
Brand Name:
-
JAC
-
Model:
-
CLW5160XLC5
-
Place of Origin:
-
Suizhou,Hubei ,China
-
Dimensions (L x W x H) (mm):
-
7000*2220*3400
-
Box Dimensions (L x W x H) (mm):
-
5050*2040*2050
-
Temperature Range:
-
-25℃ ~ -5℃
-
Name:
-
Refrigerated truck
-
Freeze:
-
fish,chicken,yoghourt,honey,fruit,ice cream
-
Drive system:
-
Left hand or right hand
-
Function:
-
Ice car delivery and storage
-
Refrigerated unit:
-
Thermo King,chinese brand
-
Van truck material:
-
fiberglass, steel plate,carbon steel
-
Truck color:
-
white,blue,red,black,yellow,green
-
Chassis brand:
-
Dongfeng,Foton,Howo,Jac,Jmc,Faw
-
Van truck wheelbase:
-
3360mm, 3308mm
-
Ms.Joyce:
-
+008613545915671

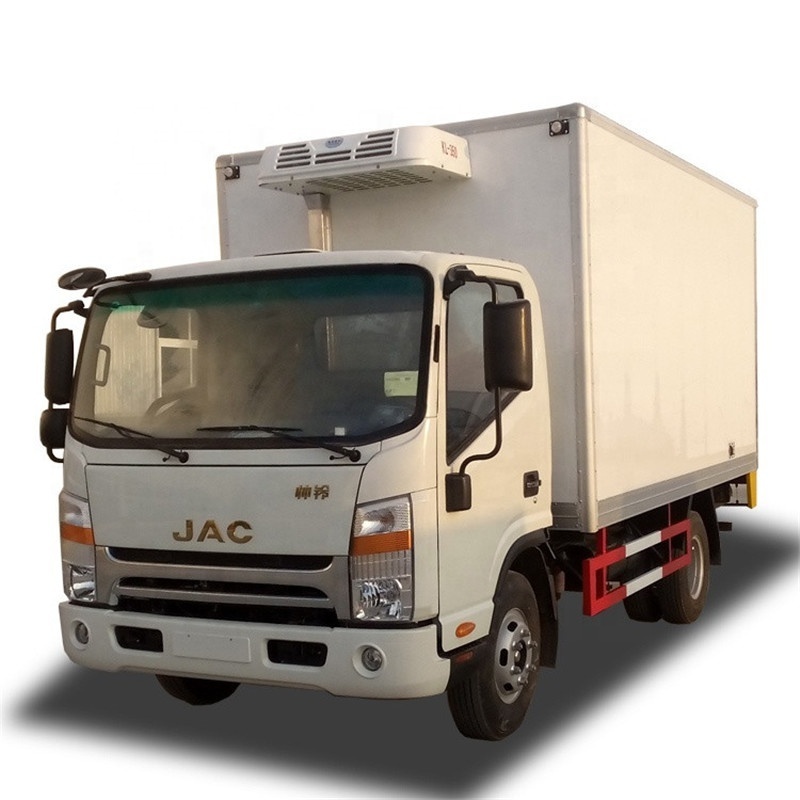

JAC Refrigerator Cooling Van,Mobile Cold Room,Refrigerated Truck For Sale!
Refrigerator truck / cold storage truck/ Rifrigerated cooling van / for sale.
Refrigerator box truck,refrigerated truck,refrigerator freezer truck,mobile cold storage room.
The character of Refrigerator cooling van, mobile cold room, refrigerated truck for sale .
Pls contact with Ms.Joyce by whatsapp : +86 13545915671
The advantages of Refrigerator cooling van, mobile cold room, refrigerated truck for sale :
1).high quality
2).low price
3).best configuration
4).low fuel consumption
5).excellent performance
The Specifications of Refrigerator cooling van, mobile cold room, refrigerated truck for sale :
| Main technical parameters | Name | refrigerator truck | Outline size(mm) | 7000x2220x3400 |
| Model | JAC | Gross weight(kg) | 11495 | |
| Engine model | CY4102-E3C | Loading weight(kg) | 7000 | |
| Emission/ ( ml/Kw) | 3856ml/70kw, 95hp | Curb weight(kg) | 4300 | |
| Engine type | Diesel, 6 Cylinders, Direct line, Turbocharge and water cooling | |||
| Fuel type | diesel | Wheelbase(mm) | 3800 | |
| Max speed(km/h) | 95 | Tire model / number |
8.25R20 / 6 Units |
|
| Operation control system | Electrically hydraulic | Transmission | 6 speed | |
| Traction system | 4x2 | Electric System | 24v | |
| Approaching angle(°) | 24 | Front / rear track(mm) | 1770/1640 | |
| Departure angle(°) | 12 | Front/rear hang(mm) | 1210/1990 | |
| Upstructure configuration | Transport medium | petrol/ diesel | Box material | glass fiber reinforced plastics |
| Tank available Capacity | 7 tons | Tank size: | 5050x2040x2050 | |
| Barrier material | Q235A | Air condition | yes | |
| Ground clearance | 450 mm | Temperature | -20℃ | |
| Steering mode | powe steel | Brake | oil/air | |
More Jac refrigerator truck Ice cream truck details :
This refrigerator truck can be widely applied tovarious types of transport refrigeration insulation needed goods, such as supermarkets, cold storage, food plants, pharmaceutical companies and so on.
Note :
1.mini ice cream van adop fully enclosed composite structure, inside and outside FRP, middle polyurethane foam heat insulation material, all-around is bonded together with high stength glue ,overall thickness is 10cm.(optional 20cm)
2. Appearance of smooth, flame retardant type insulation material , food-grade gelcoat, seamless whole panel
3. "CLW" seried refrigeration truck have features such as corrosion-resistant, good insulation properties, high strength ,light weight,good chemical stability, long life,etc.
4. Factory direct sale,professional, This Truck adop Forland 4*2 truck chassis with 88hp engine, economical, practical, Min temperature be dropped to -18°C
Remarks:
A. Refrigeration unit Brand Optioanl : American CARRIER ,THERMO KING, South Korea hanya, China Songhan, hanxue,etc.
B. Minimum temperature optional: -5 °C to -18 °C
C. The refrigeration units that we select have simple structure, convenient operation , reliable working, low energy consumption ,large refrigerating capacity, small noise , easy installation and maintenance and other advantages, it will sure you use safe!
