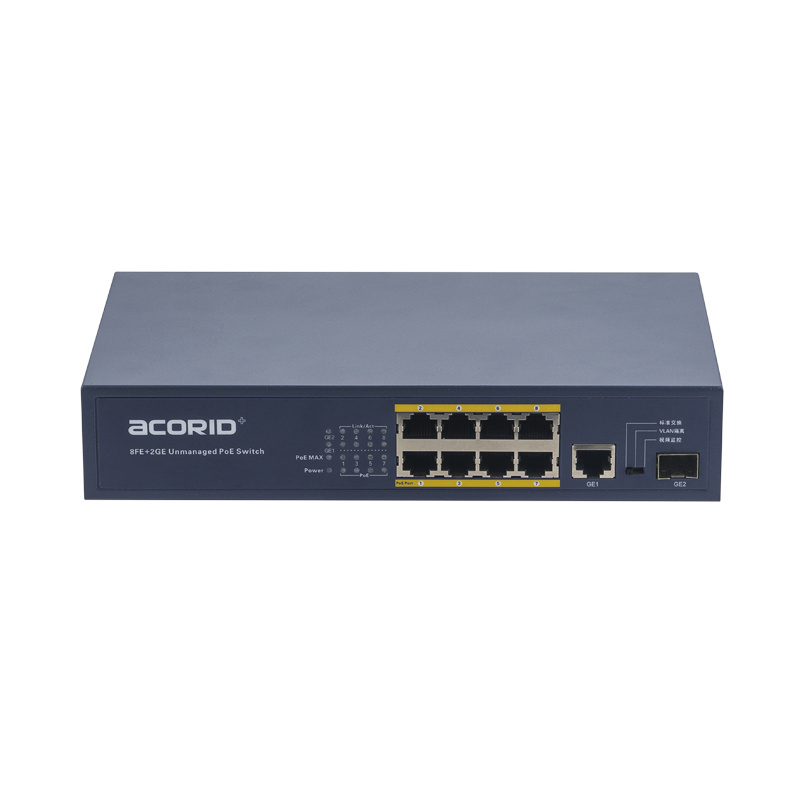

LS5110PGF,a 8-Port 10/100Mbps 802.3af/at Power over Ethernet+1-Port 10/100/1000Mbps+1-Port 1000M SFP Ethernet Switch,can be easily and quickly deployed for SOHO and home-use PoE application environment by any users as it is compact in size and simple to install.The LS5110PGF is definitely an ideal solution for SOHO and home users.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Acorid
-
Model Number:
-
LS5110PGF
-
Place of Origin:
-
Guangdong, China
-
Input volatage:
-
AC 200~240V 50/60Hz
-
Dimensions:
-
233mm(L) * 143mm(W) *45mm(H)
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Product Name:
-
8FE(PoE)+GE+SFP
-
Warranty:
-
1year
-
Color:
-
Blue
-
OEM:
-
Available
-
Total power consumption:
-
120W
-
Connector Type:
-
RJ45
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
5.6Gbs
-
Brand Name:
-
Acorid
-
Model Number:
-
LS5110PGF
-
Place of Origin:
-
Guangdong, China
-
Input volatage:
-
AC 200~240V 50/60Hz
-
Dimensions:
-
233mm(L) * 143mm(W) *45mm(H)
-
PoE Standard:
-
IEEE802.3af /IEEE802.3at
-
Product Name:
-
8FE(PoE)+GE+SFP
-
Warranty:
-
1year
-
Color:
-
Blue
-
OEM:
-
Available
-
Total power consumption:
-
120W
-
Connector Type:
-
RJ45
Product Description
8-Port 10/100Mbps 802.3af/at PoE + 1-Port 10/100/1000Mbps+1-Port 1000M SFP Ethernet Switch
|
Model
|
LS5110PGF
|
|
Feature
|
8-port PoE,96/120-watt PoE budget
|
|
|
One gigabit RJ45 & SFP
|
|
|
Data transmission up to 100m with VLAN Supported
|
|
|
Built-in 8 PoE Ports (Port 1 ~ Port 8)
|
|
|
Desktop and campact design
|
Total Power 96W/120W
The LS5110PGF, a new member in ACORID 802.3af PoE Fast Ethernet Switch family, is an 8-Port 10/100Mbps 802.3af Power over Ethernet + 1-Gigabit Port Switch+1 SFP with a total of 96/120 watts of PoE budget, which is an ideal solution to fulfilling the demand of sufficient PoE power for network applications with Fast Ethernet speed transmission.
| Ordering info | LS5110PGF-96W;LS5110PGF-120W |
| Ports description |
1-8 PoE ports:10/100M Auto-Negotiation RJ45 GE1,GE2 Uplink port: 10/100/1000M Auto-Negotiation RJ45 GE3,GE4 Uplink port: 1000M SFP fiber slot |
|
Total power consumption |
96W/120W |
| LED indicators |
PWR(Power indicator light), POE MAX(Power early warning lamp),
POE(POE indicator),Link/Act(Link / activity indicator) |
| Proccessing types | Store and forward |
| Transmission model | IEEE802.3X full-duplex and Backpressure half-duplex |
| Performance specification |
Backplane bandwidth: 5.6Gbps |
|
Packet forwarding rate: 4.17Mpps |
|
|
MAC address: 4k |
|
| Network standard |
IEEE802.3i 10 BASE-T IEEE802.3u 100 BASE-TX IEEE802.3x Flow Control IEEE802.3ab 1000 BASE-T IEEE802.3af Power over Ethernet IEEE802.3at Power over Ethernet IEEE802.3az EEE |
| Input volatage | AC 200~240V 50/60Hz |
|
Dimension |
233mm(L) * 143mm(W) *45mm(H) |
|
Cable requirements |
UTP cat5 or abover |
| Environment specification |
Operating temperature: -10℃~45℃,operating humidity: 10%~90% Storage temperature: -20℃~70℃,storage humidity: 5%~95% |
