Quick Details
-
Features:
-
Efficient, safe and labor-saving
-
Production Capacity:
-
Customized
-
Warranty:
-
1Year's warranty
-
Dimension(L*W*H):
-
2295*900*1240mm
-
Power:
-
AC220V 50/60HZ
-
Voltage:
-
AC220V
-
Weight (KG):
-
290
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
After Warranty Service:
-
Video technical support
-
Warranty Service:
-
Spare parts
-
Warranty Service After:
-
Field maintenance and repair service
-
Local service location:
-
United States
-
Local Service:
-
Viet Nam
-
Local Service Location:
-
India
-
Certification:
-
CE, TUV, ISO9001:2008
-
Body Material:
-
Plastic
-
Working Medium:
-
Air
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
KAIBOER
-
Application:
-
Factory, manufacturing machine take parts
-
Features:
-
Efficient, safe and labor-saving
-
Production Capacity:
-
Customized
-
Warranty:
-
1Year's warranty
-
Dimension(L*W*H):
-
2295*900*1240mm
-
Power:
-
AC220V 50/60HZ
-
Voltage:
-
AC220V
-
Weight (KG):
-
290
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
After Warranty Service:
-
Video technical support
-
Warranty Service:
-
Spare parts
-
Warranty Service After:
-
Field maintenance and repair service
-
Local service location:
-
United States
-
Local Service:
-
Viet Nam
-
Local Service Location:
-
India
-
Certification:
-
CE, TUV, ISO9001:2008
-
Body Material:
-
Plastic
-
Working Medium:
-
Air

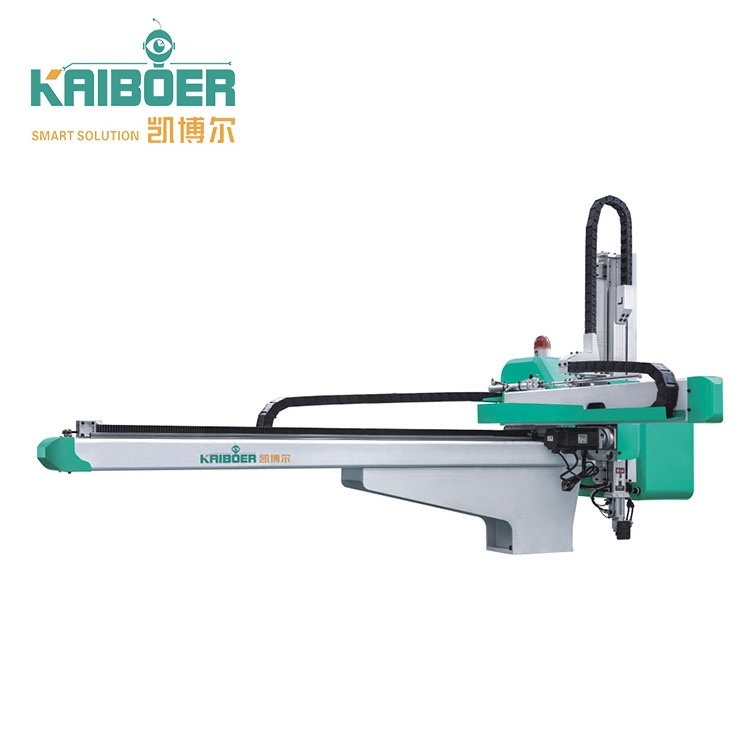

High-end Intelligent Automatic 3 Axis Industrial Plastics Ancillary Robot Arm
Product Description
| COMMON SPECIFICATIONS | |||||
| Power | Working pressure | Drive System | Posture(Air Cylinder) | Posture angle |
Maximum load
(including metallurgical) |
|
AC220V
50/60Hz |
4-7kgf/cm 2 | AC Servo Motor | Double 90 ° | Fixed | 8kg |
| GENERAL SPECIFICATIONS | ||||||||
| Model |
Vertical Stroke
(mm) |
Crosswise Stroke
(mm) |
Traverse Stroke
(mm) |
Dry Take Out Time
(sec) |
Empty cycle time
(sec) |
Air Consumption
(NL/cycle) |
Power consumption
(KVA) |
Net Weight
(kg) |
| KM-850S2 | PP:800 | P:250 | 1400 | 0.5 | 3.2 | 12 | 1.65 | 310 |
| KM-950S3 | P:900 | P:300 | 1400 | 0.6 | 3.8 | 12 | 1.65 | 340 |
| Product features | |
| Precision | Traverse movement is driven by heavy duty servo motor with cooperation of precise linear guide rails and high power V belts; Fast,silent, and precise. Wrist mechanism employs pneumatic driven rack and pinion system, which accomplishes smooth, stable and precise flipping motion. Vertical arm(s) with telescopic design efficiently minimizes the cycle time and height of the robot. |
| Safety | High efficient shock absorbers allow fast and precise pneumatic driven motion. Drop proof locking mechanism prevents accidences due to malfunction of pneumatic source. Position limit sensors and blocks effectively prevent mechanical and electrical malfunctions. Control board is designed to CE EMC test with short circuit and noise proof functions. |
| Conveni ence |
Vertical and kick displacements can be adjusted simply by changing the position limit blocks in easy directions. Control board fixtures are designed with flyer structure which provides benefit to maintenance. Cable drag chains help with cable management and ease for maintenance.
|
