Quick Details
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
-
Machine type:
-
Automatic steel rule bender
-
Application:
-
Packaging, Printing and Die making industries
-
Material:
-
Processing 2pt, 3pt thickness; 8 to 30mm heigh steel rule
-
Function:
-
Automatic bending, cutting, lip, bridge, automatic processing creasing
-
Deceleration system:
-
Three phase asynchronous motor gear reducer
-
Drive mode:
-
Panasonic servo motor system
-
Drawing software:
-
Auto CAD, Coreldraw software
-
Power supply:
-
3 phase 380v, 50 / 60 HZ
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TESIDE
-
Weight (KG):
-
450
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
-
Machine type:
-
Automatic steel rule bender
-
Application:
-
Packaging, Printing and Die making industries
-
Material:
-
Processing 2pt, 3pt thickness; 8 to 30mm heigh steel rule
-
Function:
-
Automatic bending, cutting, lip, bridge, automatic processing creasing
-
Deceleration system:
-
Three phase asynchronous motor gear reducer
-
Drive mode:
-
Panasonic servo motor system
-
Drawing software:
-
Auto CAD, Coreldraw software
-
Power supply:
-
3 phase 380v, 50 / 60 HZ
Products Description
|
Model No.
|

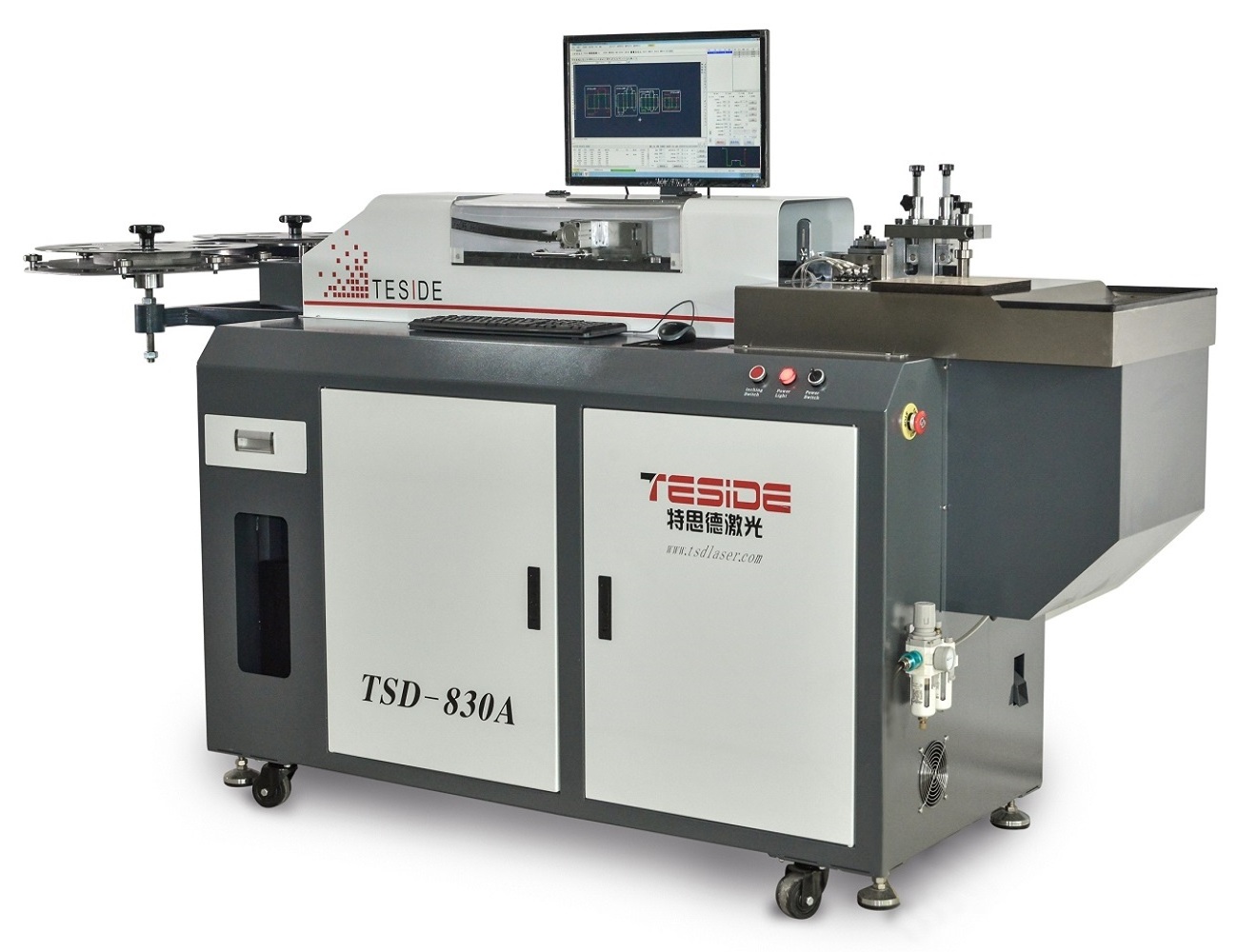

TSD-830A/TSD-830
|
TSD-850
|
|
|
Blade Thickness
|
Standard Size 0.71mm,Optional 0.45-1.05mm
|
Standard Size1.05mm,Optional 0.71-1.42mm
|
|
|
Blade Height
|
8-30mm
|
23.8-60mm
|
|
|
Max.Bending Angle
|
100°
|
100°
|
|
|
Min.ARC Radius of 90°
|
0.4mm
|
0.4mm
|
|
|
Front Min. Bending Size
|
1.5mm
|
2.5mm
|
|
|
Back Min.Cutting Size
|
1.0mm
|
1.0mm
|
|
|
Feeding Precision
|
±0.03mm
|
±0.03mm
|
|
|
Bending Flatness
|
±0.02mm
|
±0.2mm
|
|
|
Total Power
|
1.3KW
|
1.3KW
|
|
|
Machine Weight
|
500KG
|
500KG
|
|
|
Overall Dimension
|
2700*1050*1550mm(LxWxH）
|
2700*1050*1430mm（LxWxH）
|
|
|
Functions
|
Bending,Cutting,Inside Lipping,Bridge
|
Bending,Cutting,Outside Lipping,Bridge
|
|
Main Feature
1. Fixed laser path, ensure stable optical path.
2. Laser cutting head coming with automatic touching system, adapt to the jagged materials and keep cutting kerf precision.
3. Adopt Panasonic Servo Drive and Motor system, Taiwan HIWIN precision linear guide rail to keep high precision cutting.
4. Highly effective smoke-exhausting system coming with optimized dust collector device to create healthy environment for operator.
5. Automatic gas control system to ensure low energy consumption operation power consumption and gas consumption.
6. Software is easy to operate and simple, easy to understand.
7. Be equipped with the optical path gas compensation function that can avoid difference and divergence of the beam during the conduction process by gas disturbance, and can always maintain the positive pressure of clean gas in the optical cavity to prevent external smoke and enter in.
8. Be equipped with the full compensation device in optical path of autonomous developed, to ensure the consistency of the beam diameter and the constancy of the focus in the entire range of processing.
Why Choose Us
>>>>>>>>>>>>>>>>Why choose us?
We are professional dies machine manufacturer:
1.We only production co2 laser diecutting machine and its supporting die blade bending machine blade bending machine.
2. CE certificate, Reasonable price, machine stable, Experienced & Responsible QC that you can rely on.
3. We have exported our machine to Indonesia, Kosovo, Egypt, Sri Lanka, India, Philippines, Bengal, Vietnam, Kuwait, Algeria....etc.
4. Adequate supply capacity ( 50sets / month ), Punctual delivery time(2-3 Weeks) .
5. Home market: Guangdong, Jiangsu, Zhejiang, Fujian, Hunan, Jiangxi, Shandong, Sichuan, Henan, Shanxi, Shanxi, Beijing, Shanghai,Hebei, Inner Mongolia, Guangxi, HK ... Etc.
6. Our affiliates in the country: East Division, Office of Hebei, Hangzhou Office, Office of Fujian
