Quick Details
-
Brand Name:
-
JY
-
Dimension(L*W*H):
-
Depends Air Volume
-
Weight:
-
3500 kg
-
Product name:
-
Cartridge type dust collector for sand blast dust collection
-
Color:
-
Blue
-
Certification:
-
ISO9001
-
Application:
-
Dust Collect
-
Usage:
-
Clean Dust Air
-
Material:
-
Carbon Steel/stainless steel
-
Airflow:
-
12000cfm
-
Cartridge qty:
-
30pcs
Quick Details
-
Applicable Industries:
-
sand blasting
-
Minimum Particle Size:
-
0.5 Micron
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JY
-
Dimension(L*W*H):
-
Depends Air Volume
-
Weight:
-
3500 kg
-
Product name:
-
Cartridge type dust collector for sand blast dust collection
-
Color:
-
Blue
-
Certification:
-
ISO9001
-
Application:
-
Dust Collect
-
Usage:
-
Clean Dust Air
-
Material:
-
Carbon Steel/stainless steel
-
Airflow:
-
12000cfm
-
Cartridge qty:
-
30pcs

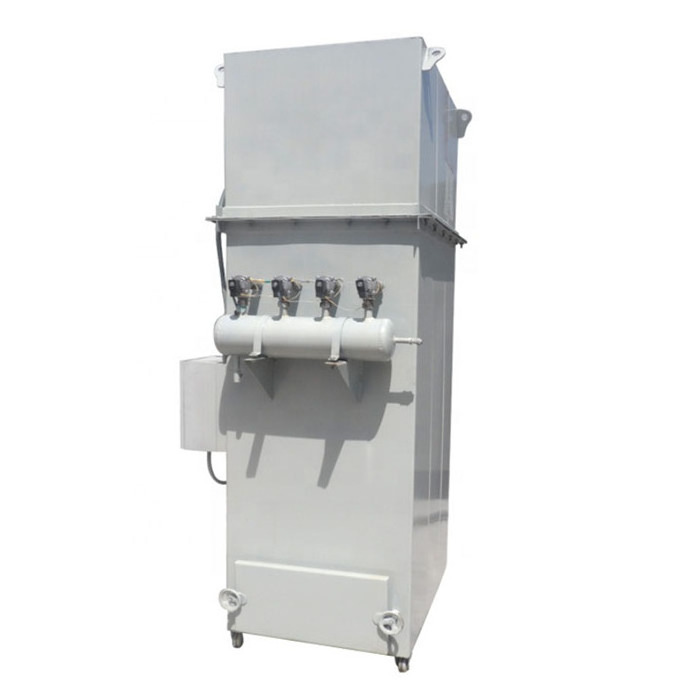

Cartridge Dust Collector
Product Description
Cartridge dust collection systems work for many applications. Because the filters can handle very small particles, cartridge filters work very well for applications like welding, laser, and plasma cutting fumes. They also excel in industries like grain
and feed dust, fine wood dust, fiberglass, and shot blasting.
Companies increasingly choose cartridge collectors instead of baghouses when they need a smaller, more compact dust collector. In addition, maintenance on a cartridge type dust collector is much easier. Instead of climbing inside the dirty baghouse and changing hundreds of bags, maintenance workers can pull cartridge filters out without ever getting inside the collector.
With proper venting and NFPA standard safety features, a cartridge type dust collector can be located inside a building if
necessary. Even a small baghouse will not usually fit indoors. For extreme or difficult applications, a cartridge collector can be fitted with special features to improve performance.
With proper venting and NFPA standard safety features, a cartridge type dust collector can be located inside a building if
necessary. Even a small baghouse will not usually fit indoors. For extreme or difficult applications, a cartridge collector can be fitted with special features to improve performance.
Mobile cartridge dust collector structure
Cartridge filter
Size: φ325*700mm length
Cartridge filters are made from a blend of polyester and cellulose. Manufacturers apply coatings to this material. Nanofiber coating increases filtration efficiency. Spunbond material offers improved durability under some harsh conditions.
Model Select Datas
Cartridge Collector vs. Baghouse
Cartridge collectors have the advantage of smaller size, increased filter surface area, and easy maintenance.
They handle most applications, especially small particles, very efficiently.
Baghouses have an advantage in their ability to tolerate harsher applications. Sticky or abrasive materials, or dust contaminated with oil or moisture, may work better with a baghouse.
Bags can also handle extreme high-temperature applications.
