- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Mingxin
-
Dimension(L*W*H):
-
Custom size
-
Weight:
-
0.2 KG
-
Working Temperature Range:
-
700 - 1450 ℃
-
Core Components:
-
sic heater
-
Brand name:
-
Mingxin silicon carbide rod price
-
Application:
-
Industrial Heating Parts
-
Advantage:
-
Anti-oxidation
-
Key word:
-
sic rod heater
-
Volume density:
-
5.5-5.6g/cm3
-
Porosity rate:
-
7.4%
-
Hot extensibility:
-
4%
-
Diameter:
-
8-120mm
-
Length:
-
50-4300mm
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
Adjustable
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Mingxin
-
Dimension(L*W*H):
-
Custom size
-
Weight:
-
0.2 KG
-
Working Temperature Range:
-
700 - 1450 ℃
-
Core Components:
-
sic heater
-
Brand name:
-
Mingxin silicon carbide rod price
-
Application:
-
Industrial Heating Parts
-
Advantage:
-
Anti-oxidation
-
Key word:
-
sic rod heater
-
Volume density:
-
5.5-5.6g/cm3
-
Porosity rate:
-
7.4%
-
Hot extensibility:
-
4%
-
Diameter:
-
8-120mm
-
Length:
-
50-4300mm
1650C diameter 10mm glow silicon carbide ceramic melting rod heater price
1800C Mosi2 heating element 1550C silicon carbide heating element

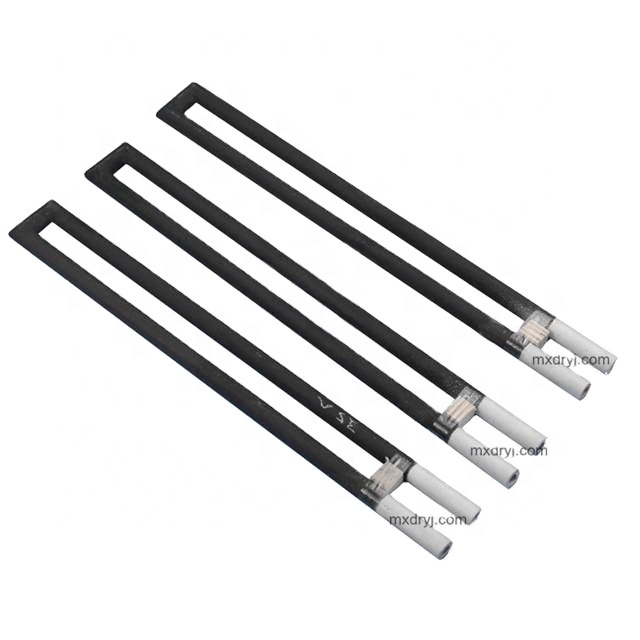

1. Iroduction for silicon carbide heating element
The SiC electrothermal element is a rod-shaped non-metallic thermoelectric element which is made of high quality green SiC as the main raw material through processing, high temperature silicification and recrystallization. Compared with metallic electric heating elements, this element has the characteristics of high operating temperature, oxidation resistance, corrosion resistance, long service life, small deformation, convenient installation and maintenance.
2.Feedback for gc type sic heating element
3.Marks for Silicon carbide heating element
When you enquiry, please tell us the following data
D1: Diameter of Hot Zone(mm)
D2: Diameter of Cold Zone(mm)
Le: Length of Hot Zone(mm)
Lu: Length of Cold Zone(mm)
A: Shank Spacing(mm)
4.Product Parameters
| Sic heating element Physical properties | |
| Density | 2.6-2.8g/cm³ |
| Hardness | >9MOH'S |
| Porosity Rate | <30% |
| Bending Strength | >300KG |
| Tensile Strength | >150kg/cm³ |
| Radinacy | 0.85 |
5.Details for silicon carbide heating element
6.Notice for using silicon carbide heating element
1
. Heater should be protected against damp during storing or installing to ensure the performance of the heater.
2. In order to be sure of well-distributed lod of each and groups, heater should be divided before assembling. The tolerance of the resistance of each one cannot exceed by 10% each other.
3. Heater is hard and brittle, please be careful when assembling and maintaining so as to avoid damage.
4. When operating the electric furnace at the beginning, the voltage should be increased slowly and cannot be fully loaded at once. Otherwise the larger current will be resulted in the damage of heater.
5. When heater is damaged and need to be changed, the resistance of new one should follow the increasing resistance. If many are damaged or resistance increased too much, heater should be changed.
7.Accessories for using silicon carbide heating element
It consists 1 piece of clamp and 2 pieces of straps
8.Package for silicon carbide heating element
Packaging Details: P acked with sponge and box case, and then put it into wooden case.
Port: Qingdao, Shandong
Lead Time: Shipped in 10 days after payment Transportation: Most by air.
