Quick Details
-
Blade Diameter:
-
800-1200mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YG
-
Model Number:
-
YG-1000
-
Max. Cutting Width:
-
300-500mm
-
Max. Cutting Depth:
-
300-500mm
-
Weight:
-
50kg
-
name:
-
wall saw
-
power:
-
22/25kw
-
Voltage:
-
380v
-
weight:
-
50kg
-
Product Keywords:
-
hydraulic wall concrete cutting machine
-
Usage:
-
Cutting Concrete
-
Function:
-
Wall Cutting Working
-
Cutting materials:
-
Wall
-
Blade Dia:
-
800-1200mm
Quick Details
-
Saw Type:
-
Circular Saw
-
Rated Voltage:
-
380-440V
-
Rated Input Power:
-
25KW
-
Blade Diameter:
-
800-1200mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YG
-
Model Number:
-
YG-1000
-
Max. Cutting Width:
-
300-500mm
-
Max. Cutting Depth:
-
300-500mm
-
Weight:
-
50kg
-
name:
-
wall saw
-
power:
-
22/25kw
-
Voltage:
-
380v
-
weight:
-
50kg
-
Product Keywords:
-
hydraulic wall concrete cutting machine
-
Usage:
-
Cutting Concrete
-
Function:
-
Wall Cutting Working
-
Cutting materials:
-
Wall
-
Blade Dia:
-
800-1200mm

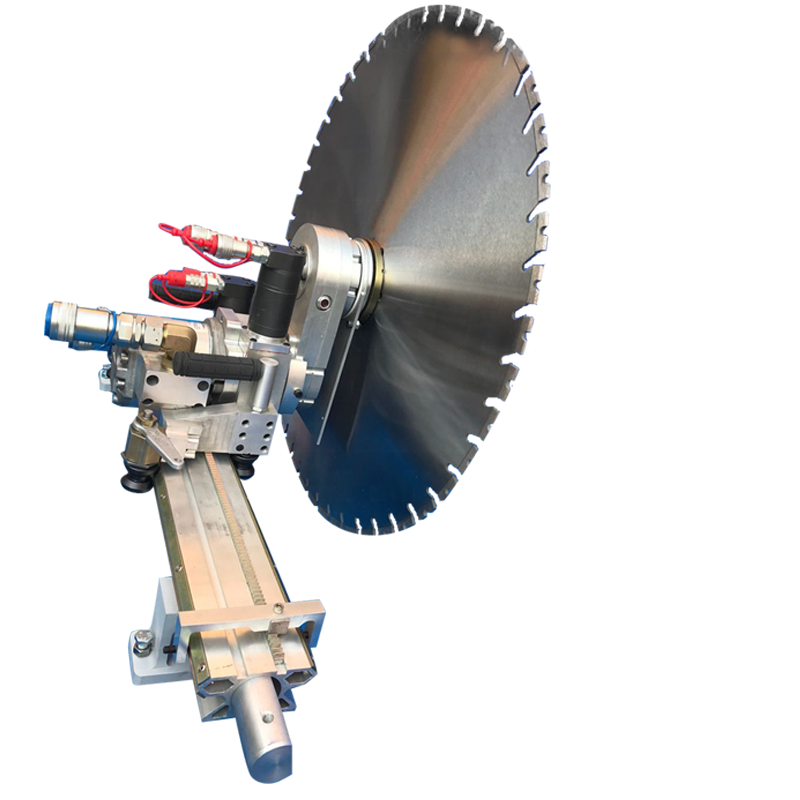

Hydraulic Electric Concrete Wall Saw
Concrete wall saw is mainly used for the cutting of reinforced concrete wall, brick wall and other stone materials, as well as the renovation and reinforcement of old buildings. It can also cut large-area walls, such as, door holes, windows or elevator holes.
Concrete wall saw can also be called wall cutting saw, concrete wall saw, wall cutting saw machine, which usually contains two types, hydraulic concrete wall and electric concrete wall saw according to the power.Hydraulic concrete wall saw is composed of power station and saw.
Technical P aramete of Hydraulic Concrete Wall Saw:
|
Hydraulic Concrete Wall saw |
Model |
YG-600 |
YG-700 |
|
Saw blade diameter range (mm) |
800-1200 |
800-1200 |
|
|
Cutting depth (mm) |
300-520 |
300-520 |
|
|
Max.working pressure (bar) |
180 |
200 |
|
|
Max.oil flow rate (L/min) |
100 |
100 |
|
|
Gearing |
gear |
gear |
|
|
Rotation speed (Rpm) |
450/950/1300 |
450/850/1200 |
|
|
Dimension ( mm ) |
400*420*400 |
400*420*400 |
|
|
Weight(kg) |
38 |
39 |
|
|
Hydraulic oir pump |
Max.power (kw) |
25 |
30 |
|
Motor cooling method |
Air cooling |
water cooling |
|
|
Rated voltatge |
380V 50HZ |
380V-420V 50HZ-60HZ |
|
|
Pressure stages |
3 |
3 |
|
|
Max.operating pressure (bar) |
200 |
210 |
|
|
Oil flow rate (L/min) |
30-80 |
40-100 |
|
|
Dimensions |
600*650*1050 |
500*520*1100 |
|
|
Weight(kg) |
220 |
140 |
Technical P aramete of Electric Concrete Wall Saw:
|
Model |
YG-800 |
YG-1000 |
YG-1200 |
|
Saw blade diameter(mm) |
800 |
1000 |
1200 |
|
Cutting depth(cm) |
30 |
40 |
50 |
|
Power(w) |
6150 |
6150 |
6150 |
|
Cutting efficiency(m/h) |
3-6 |
3-6 |
3-6 |
|
Semi-automatic additional servo motor: 1500w Fully automatic two sets of gear sets Two servo motors Remote control: 1500w |
|||
Product details :
Application :
1.
general reinforced concrete walls, board cutting, demolition or the door hole.
2. cutting surface required to be a smooth, straight, beautiful concrete cutting.
3. cutting depth according to the blade size adjustment, the current use.
4. 1600 mm blade which Maximum cutting depth up to 600mm.
1. Packaging:
1)Wrapped by protective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping:
By logistics; by automobile; by train; by shipping; by air etc.
