Quick Details
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-ZPX13F
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
4 Port IEEE802.3af poe extender
-
PoE Ports:
-
3*10/100Mbps PoE Ports
-
Uplink Ports:
-
1*10/100Mbps Uplink Ports
-
Power input Pin:
-
1/2(+),3/6(-);4/5(+),7/8(-)
-
Transmission Distance:
-
≤100m
-
POE standard:
-
IEEE802.AF/AT
-
Operating Temperature:
-
-20℃ ~ 50℃
-
Warranty:
-
2 years
Quick Details
-
Transmission Rate:
-
10/100Mbps
-
Communication Mode:
-
Full-Duplex & Half-Duplex
-
Switch Capacity:
-
1G
-
Brand Name:
-
SunSoont
-
Model Number:
-
SST-ZPX13F
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
4 Port IEEE802.3af poe extender
-
PoE Ports:
-
3*10/100Mbps PoE Ports
-
Uplink Ports:
-
1*10/100Mbps Uplink Ports
-
Power input Pin:
-
1/2(+),3/6(-);4/5(+),7/8(-)
-
Transmission Distance:
-
≤100m
-
POE standard:
-
IEEE802.AF/AT
-
Operating Temperature:
-
-20℃ ~ 50℃
-
Warranty:
-
2 years
Product Description

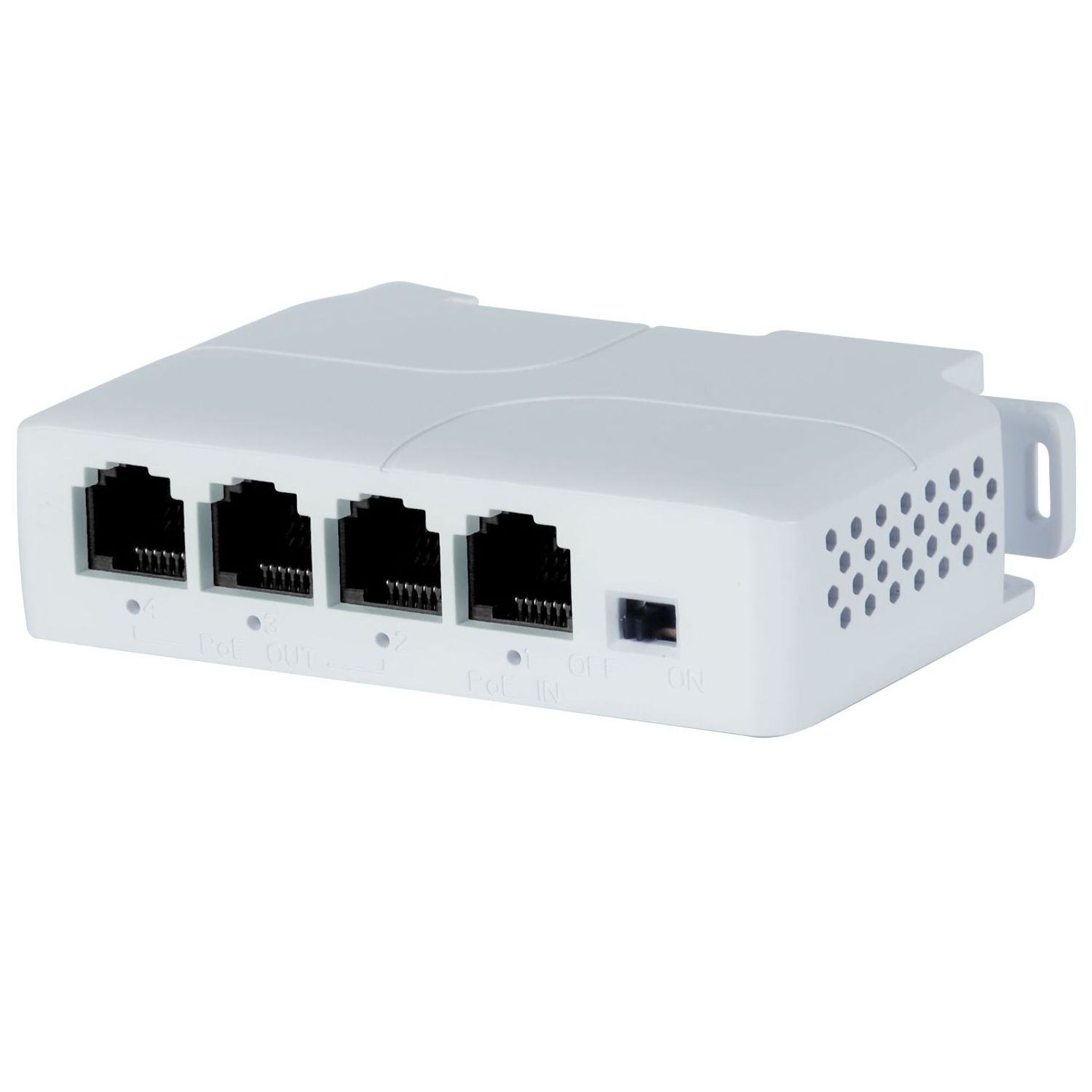

1 to 3 Port PoE Extender Passive Cascadable IEEE802.3af for IP Port Transmission Extender for POE Switch NVR IP Camera
Feature
* 3*10/100mbps POE port to output,1*10/100mbps port to input
* 100m Distance
* Support IEEE802.3AF/AT
* POE In:44V-57V/30W;
* POE Output (1-3) :44-57V /25W
* All port supported by MDI/MDIX auto flip and self negotiation
* Supply 4 10/100Mpbs adaptive high speed forwarding data
packet non-lost port. ² Each port max. power supply reached 8W.
* 100m Distance
* Support IEEE802.3AF/AT
* POE In:44V-57V/30W;
* POE Output (1-3) :44-57V /25W
* All port supported by MDI/MDIX auto flip and self negotiation
* Supply 4 10/100Mpbs adaptive high speed forwarding data
packet non-lost port. ² Each port max. power supply reached 8W.
Specification
|
Product
|
POE Extender
|
|
Model
|
SST-ZPX13F
|
|
POE Port
|
IEEE802.3AF/AT Standard
|
|
Output Power
|
8W/Per port
|
|
Power input Pin
|
1/2+、3/6- 、4/5+、7/8-
|
|
Power output pin
|
1/2+、3/6-
|
|
Whole Power
|
≤25W
|
|
POE Protocol
|
IEEE 802.3af/IEEE 802.3at
|
|
Power Distance
|
≤100m
|
|
Network Standard
|
IEEE 802.3、 IEEE802.3u、802.3x、802.3af/at
|
|
Network Medium
|
10/100BASE-TX:5 class and above non shielded twisted pair
|
|
Data Distance
|
≤100m
|
|
Switch Capability
|
1Gbps
|
|
Forwarding Rate
|
10BASE-tx:14880pps/port
100BASE-tx：14800pps/port |
|
MAC Address
|
MAC address table 1K
|
|
Port Function
|
Power priority mechanism, fast and forward, MAC automatic learning and aging
IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode |
|
Working Environment
|
Working temperature：-10°-- 55°C
|
|
Weight
|
0.055kg
|
|
Size
|
82mm*52mm*23mm(L*W*H)
|
