Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JINHAN
-
Model Number:
-
JDS2012S
-
Package:
-
Yes
Quick Details
-
Type:
-
Digital Oscilloscope
-
Warranty:
-
1 year
-
Customized support:
-
None
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JINHAN
-
Model Number:
-
JDS2012S
-
Package:
-
Yes

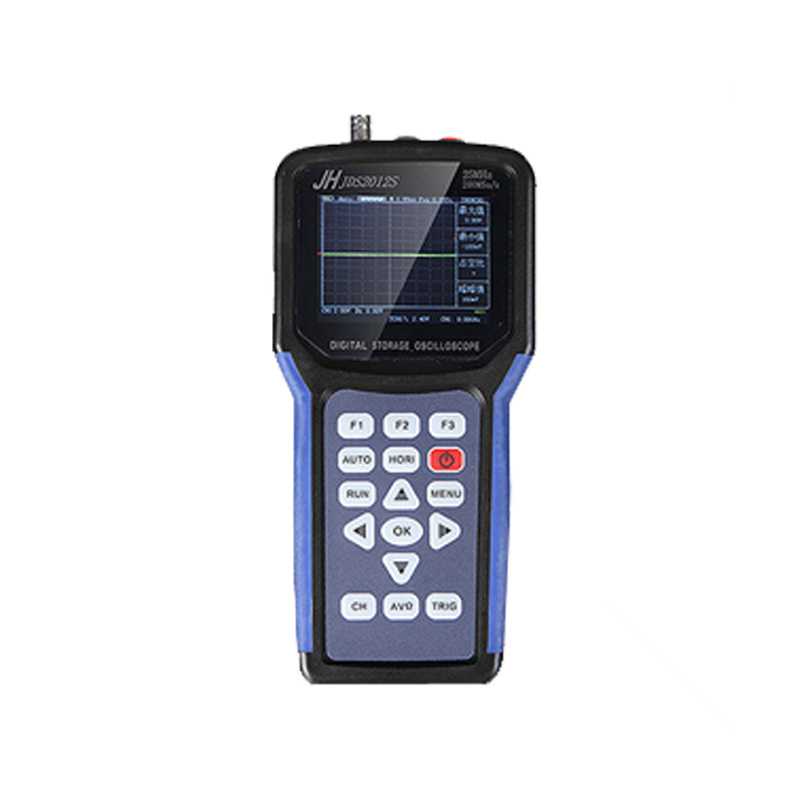

JDS2012S Handheld Digital Storage Oscilloscope 1CH 25mhz 200msa/s Scopemeter 4000 Count Digital Multimeter 3.2inch
Features
-New Ultra-thin appearance design, small volume, light weight, convenient carrying
- Color TFT LCD display, 320 * 240 resolution, waveform display more clear, stable
-Ultra Low power consumption, single battery can work for 5 hours
- Support USB storage device, waveform screenshot saved
Having the edge trigger function, can automatically detect support (50Hz - 40MHz)
-Support Time and voltage cursor
- Support, English menu display, select English button
-To Display a variety of styles: color, black and white display
-Support Automatic shutdown function and power saving mode: time can be set
- Backlight brightness adjustable
Specification
Input coupling : AC, DC
Channel: 1
Display mode: Y-T
The input impedance: 1MΩ 25pF
The maximum input voltage: 40V (Probe X1); 400V (Probe X1); 2000V (Probe X100)
Probe attenuation: 1X, 10X
Attenuation setting: 1X, 10X, 100X
Signal acquisition system
Sampling method: Real time sampling, random sampling
The storage depth: 2K
Acquisition mode: Sampling, peak detect
Vertical syste
Vertical sensitivity: 10mV-5V (Probe 1X) 100mV-50V (Probe 10X) (1,2.5,5 Stepping)
The vertical accuracy: +/- 3%
The vertical resolution: 8bit
Bandwidth: 25MHz
Horizontal system
The real-time sampling rate: 200 MSa / s
Horizontal scanning range: 10nS / div-5S / div
Triggering system
Trigger Mode: Automatic, normal and single
Trigger Type: The rising edge, falling edge
Automatic detection: Support (50Hz-40MHz)
Measurement system
Cursor measurement: Support time and voltage
Measuring method: Manual
Measurement: The peak to peak value and frequency
Equipment
Screen: 3.2 inch, 16 bit true color, TFT, 320 * 240
Battery: 2000 mAh Lithium battery (support 5 hours of continuous work)
size: 202 * 100 * 35 (mm)
Digital channel: 200 MSa / s
Signal generator Frequency: Sine wave (1Hz - 5MHz); the other (1Hz-1MHz)
Duty ratio: 0% - 100%
Range: 100mV - 4V
Offset: + (0V -2V)
