Quick Details
-
Model Number:
-
SR-MC101
-
heating style:
-
high refrequency heating
-
Working environment:
-
10-60℃,40%~90%
-
Application:
-
dual side soldering
-
Soldering indenter:
-
dual side soldering indenter
-
soldering method:
-
ultra high frequency heating
-
Soldering precision pitch:
-
0.4mm
-
Working pressure:
-
0.4-0.8Mpa
-
soldering knife:
-
customized
-
Power output:
-
1800w
-
Weight:
-
15kg
Quick Details
-
Use:
-
Soldering
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sinrad
-
Model Number:
-
SR-MC101
-
heating style:
-
high refrequency heating
-
Working environment:
-
10-60℃,40%~90%
-
Application:
-
dual side soldering
-
Soldering indenter:
-
dual side soldering indenter
-
soldering method:
-
ultra high frequency heating
-
Soldering precision pitch:
-
0.4mm
-
Working pressure:
-
0.4-0.8Mpa
-
soldering knife:
-
customized
-
Power output:
-
1800w
-
Weight:
-
15kg
Product Description

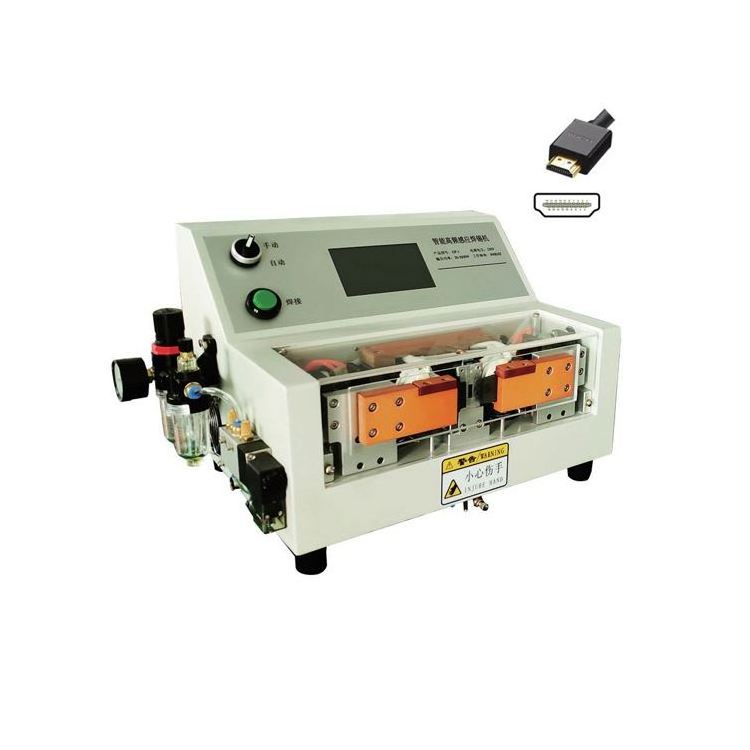

Product Introduction Of High Frequency HDM1 Cable Soldering Machine
Especial for HDM1, USB 3.0, DP, RGB,DVI, DMS,SATA high digital cable soldering.
| Technical Index | Tech-Parameters |
| Soldering knife | customized |
| Weight | 15KG |
| Power output | 1.8KW |
| Working Voltage | 220V AC 50-60HZ |
| Machine Dimensions(L*W*H) | 45*32*25cm |
| Working environment | 10-60℃,40%~90% |
| Working efficiency | 1000~1300pcs/H |
| Packing Size | 560*350*400mm |
Main Features
| 1.Especial for HDM1, USB 3.0, DP, RGB,DVI, DMS,SATA high digital cable soldering. | ||||
| 2. Adopt original Japan Mitsubishi big power pulse tube. | ||||
| 3.Soldering machine realized for metal contactless welding , will not heating damage for the plastic parts of non-metallic parts. | ||||
| 4.Solder operation is easy to operation, high speed and high efficiency, safe and practical, welding time is short, only 0.6 seconds to complete a plug welding (welding time 0.3 seconds, cooling time 0.3 seconds) greatly improve the welding operation, solder uniform and beautiful. | ||||
| 5.The welding temperature, welding time, cooling time, welding quantity can be adjusted base on cable. | ||||
| 6.One machine can be soldering many kinds of cable, only need to changed the plug fixture and the soldering knife is ok. | ||||
| 7.Soldering knife drive cylinder used Japan SMC high sensitivity cylinder, can be completed soldering under a very low pressure, protect the soldering knife lift effectively. | ||||
| 8.The plug fixture with quick-acting regulator, convenient for clients to adjusted/align the soldering position and change the fixture. Easy to changed the soldering fixture, can be finished in three minutes. | ||||
| 9.Adopt light sense switch to soldering automatically, high production efficiency. |
