Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
JIAYOU
-
Model Number:
-
NYBY / VV22
-
Size:
-
4x95mm2 3x16mm2 5x25mm2, 95mm/185mm/25mm/150mm/240mm
-
Product name:
-
flame retardant STA SWA armored electric power cable for underground
-
Conductor:
-
Copper
-
Insulation:
-
PVC
-
MOQ:
-
100 meters
-
Usage:
-
Construction / power station
-
Color:
-
Customer's Requirement
-
Standard:
-
IEC50502
-
Rated voltage:
-
0.6/1kV
-
tyoe:
-
swa cable
Quick Details
-
Insulation Material:
-
PVC
-
Application:
-
Construction
-
Conductor Material:
-
Copper / Aluminum
-
Jacket:
-
PVC
-
Place of Origin:
-
Guangxi, China
-
Brand Name:
-
JIAYOU
-
Model Number:
-
NYBY / VV22
-
Size:
-
4x95mm2 3x16mm2 5x25mm2, 95mm/185mm/25mm/150mm/240mm
-
Product name:
-
flame retardant STA SWA armored electric power cable for underground
-
Conductor:
-
Copper
-
Insulation:
-
PVC
-
MOQ:
-
100 meters
-
Usage:
-
Construction / power station
-
Color:
-
Customer's Requirement
-
Standard:
-
IEC50502
-
Rated voltage:
-
0.6/1kV
-
tyoe:
-
swa cable
Products Description

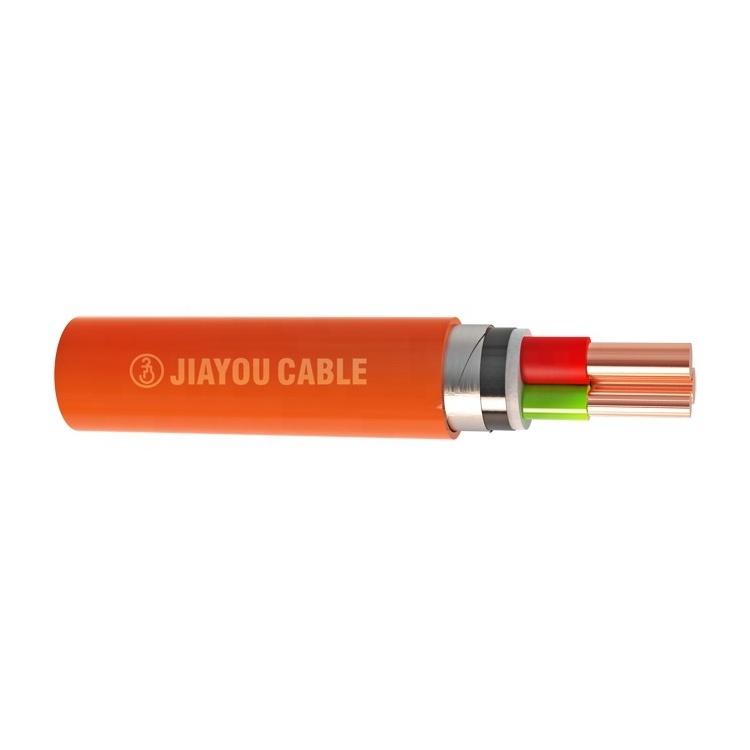

3 core 4 core 3x16mm2 5x25mm2 flame retardant STA SWA armored electric power cable for underground
APPLICATION:
These cables are intended for fixed installations, indoors and outdoors, in low voltage electricity systems. They are
normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial
plants, as well as in switchgears, in applications where there is a risk of mechanical damage.
normally used for the distribution of electrical energy in urban networks, power or switching stations, industrial
plants, as well as in switchgears, in applications where there is a risk of mechanical damage.
APPLICABLE STANDARDS:
IEC 60502-1 standard
CONSTRUCTION:
Conductor
Plain annealed stranded circular (rm) or sector shaped (sm) copper conductor (Class 2 to IEC 60228)
Insulation
Extruded layer of Polyvinyl Chloride (PVC) - Type (PVC/A) to IEC 60502-1.
Bedding
Extruded layer of Polyvinyl Chloride (PVC) - Type (ST1) to IEC 60502-1.
Armouring
Double layers of galvanized steel tapes.
Double layers of galvanized steel tapes.
Outer Jacket
Extruded layer of Polyvinyl Chloride (PVC) - Type (ST1) to IEC 60502-1.
Packing
In roll or in Drum. Customized packing is welcome.
Technical Date:
|
Nominal Cross sectional Area (mm2)
|
Max. Conductor Resistance
|
Continuous Current Ratings at 25℃
|
|
Approx. overall diameter (mm)
|
Approx. overall weight (kg/km)
|
|
|
|
DC at 20℃ (Ω/km）
|
In Air
|
In Ground
|
|
|
|
|
2x10
|
1.83
|
58
|
84
|
17.8
|
507.9
|
|
|
2x16
|
1.15
|
76
|
110
|
19.9
|
683.2
|
|
|
2x25
|
0.727
|
98
|
140
|
23.3
|
929.6
|
|
|
2x35
|
0.524
|
120
|
175
|
26.3
|
1242.8
|
|
|
2x50
|
0.3870
|
145
|
205
|
29.2
|
1585.1
|
|
|
2x70
|
0.268
|
185
|
255
|
32.8
|
2113.8
|
|
|
2x95
|
0.193
|
230
|
305
|
37.1
|
3080.8
|
|
|
2x120
|
0.153
|
265
|
350
|
40.1
|
3689.6
|
|
|
2x150
|
0.124
|
305
|
390
|
44.4
|
4489.6
|
|
|
2x185
|
0.0991
|
350
|
440
|
48.7
|
5406.2
|
|
|
2x240
|
0.0754
|
417
|
524
|
55.3
|
6844.2
|
|
|
2x300
|
0.0601
|
482
|
598
|
59.8
|
8234.4
|
|
|
2x400
|
0.047
|
567
|
700
|
67.3
|
10204.4
|
|
