Quick Details
-
Material:
-
Q235
-
Color:
-
Grey + Blue
-
Power:
-
None
-
Application:
-
Magnetic Field/Magnetic Materials/Magnets Testing and Measuring
-
Weight:
-
About 48.7 Kg
-
Dimension:
-
470*164*198 mm
-
Usage:
-
Magnetic Properties Testing and Measuring Tools/ Apparatus/Equipment
-
Direction of magnetic field:
-
Horizontal magnetic field
-
Variable air gap range:
-
0-80 mm
-
Diameter pole core:
-
50 mm
-
DC resistance at 20 ℃:
-
About 0.6 Ω
-
Insulation resistance:
-
Better than 500 MΩ
-
Cooling Method:
-
Air cooling
Quick Details
-
Warranty:
-
12 Months
-
Place of Origin:
-
Jilin, China
-
Brand Name:
-
YP
-
Material:
-
Q235
-
Color:
-
Grey + Blue
-
Power:
-
None
-
Application:
-
Magnetic Field/Magnetic Materials/Magnets Testing and Measuring
-
Weight:
-
About 48.7 Kg
-
Dimension:
-
470*164*198 mm
-
Usage:
-
Magnetic Properties Testing and Measuring Tools/ Apparatus/Equipment
-
Direction of magnetic field:
-
Horizontal magnetic field
-
Variable air gap range:
-
0-80 mm
-
Diameter pole core:
-
50 mm
-
DC resistance at 20 ℃:
-
About 0.6 Ω
-
Insulation resistance:
-
Better than 500 MΩ
-
Cooling Method:
-
Air cooling
Product Description
Outline Dimension
|
Accessories
|
|
|
|
|||
|
Description
|
|
Quantity
|
|
|||
|
Power Supply Cable
|
|
1
|
|
|||
|
Probe Holder
|
|
1
|
|
|||
|
User’s Manual
|
|
1
|
|
|||
|
Product Catalogue
|
|
1
|
|
|||
|
Certificate
|
|
1
|
|
|||
|
OPTIONAL PURCHASE LIST
|
|
|
|
|||
|
Description
|
|
Quantity
|
|
|||
|
Purity-Iron Pole Caps
|
|
1
|
|
|||
|
Electrical-Controlled Rotating Table
|
|
1
|
|
|||
|
Hand-Operated Rotating Table
|
|
1
|
|
|||
|
Closed-Loop Control System
|
|
1
|
|
|||

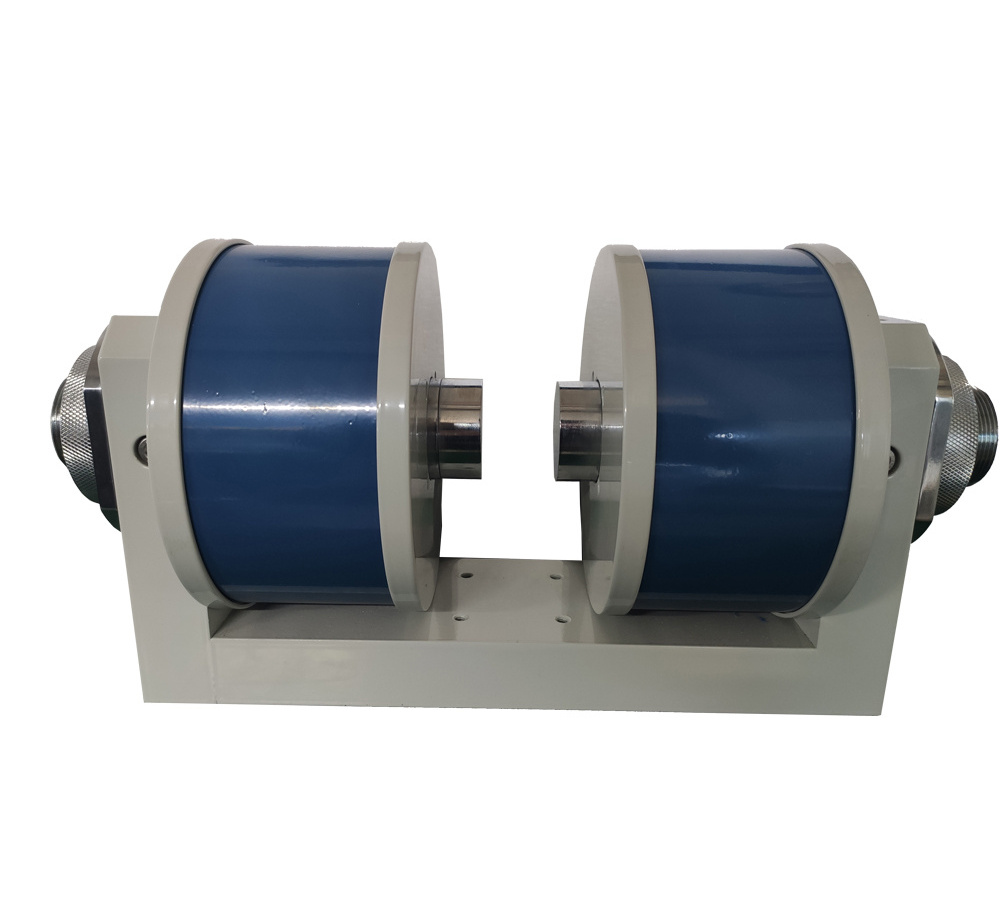

Images
FAQ
The founder Dr. Yupu Zhang and his team
Since 1956, Dr. Yupu Zhang and his research team have been engaged in magnetic measurement research in the laboratory of Jilin University, and in 1985, they developed the First Vibrating Sample Magnetometer in China and won the Third Prize of National Science Progress Award.
