Quick Details
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3300*1200*2505mm
-
Weight:
-
3800 kg
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
name:
-
pellet feed procudion line
-
type of pellet machine:
-
SZLH420
-
transmission type of pellet machine:
-
gear drive
-
size of the pellet fodder:
-
4-12mm
-
spare parts:
-
die, roller
-
application:
-
large feed plant or breeding farm
-
advantages:
-
automatic, and high efficiency
-
Related machine:
-
grinding, mixing, pelelting, cooling and packing system
-
Capacity:
-
1-20ton/h
Quick Details
-
Max. Capacity:
-
8-10 ton/h
-
Place of Origin:
-
China
-
Brand Name:
-
Henan Hengfu
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
3300*1200*2505mm
-
Weight:
-
3800 kg
-
Marketing Type:
-
New Product 2022
-
After-sales Service Provided:
-
Field installation, commissioning and training
-
name:
-
pellet feed procudion line
-
type of pellet machine:
-
SZLH420
-
transmission type of pellet machine:
-
gear drive
-
size of the pellet fodder:
-
4-12mm
-
spare parts:
-
die, roller
-
application:
-
large feed plant or breeding farm
-
advantages:
-
automatic, and high efficiency
-
Related machine:
-
grinding, mixing, pelelting, cooling and packing system
-
Capacity:
-
1-20ton/h
Factory Wholesale Food Processing Machinery Chicks Alfalfa Production Line Ring Die Pellet Machine
| Capacity | 1-20t/h |
| Production line classification | Manual production line, automatic production line |
| Main equipment | Feed hammer mill, feed mixer, Counter flow Cooler, pellet press |

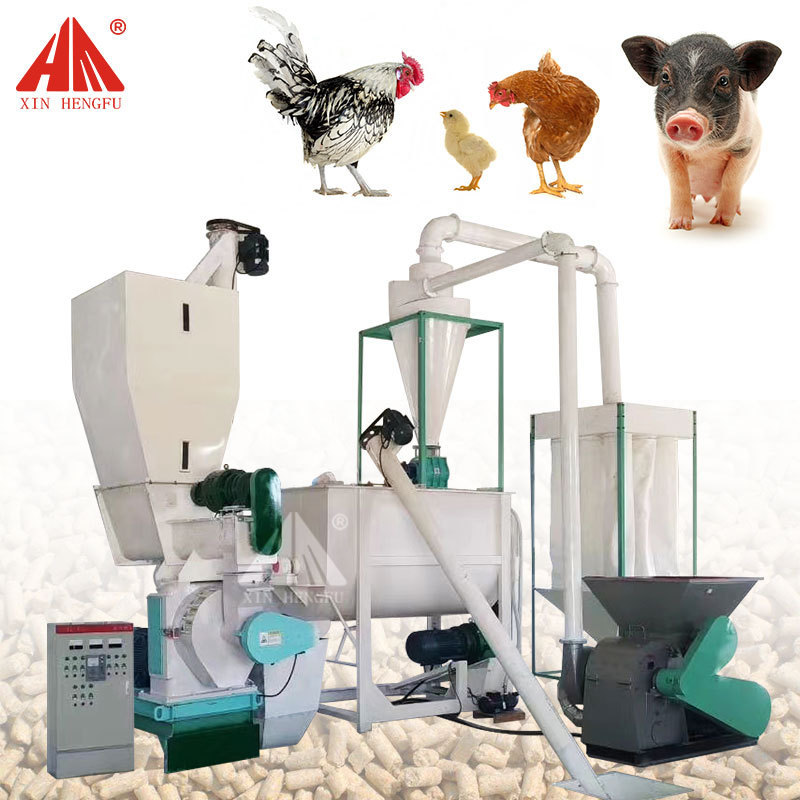

Main equipments picture
This pellet feed line are suitable for large and medium-size farms and medium-sized feed mill plant.
| ring die granular feed extruder pellet feed Processing Technology |
|
Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet Crushing → Screening & Grading → Pellet Packing
|
| Equipment Related to ring die granular feed extruder pellet feed Line |
|
Feeding pit →Feed Grinder →Feed Mixer → Feed Pellet Mill → Counter flow Cooler → Feed Pellets Crumbler → Feed Pellets Grading Sieve → Automatic Weighing and Packing Machine |
a. For pig, the pellet diameter is usually ø3.5-6.5mm.
b. For cattle, the pellet diameter is usually ø4.5-8mm.
c. For chicken, pellet diameter is usually ø3.2mm.
d. For fish, pellet diameter is usuallyø2.0, ø2.5, ø3.0mm.
e. For shrimps, pellet diameter is usually ø1.0-ø3.5mm.
Pellet length is customized.
Feed pellet press parameters
Automatic animal feed processing line consists of 6 sections
1. Crushing Section
When the thickness of the raw material is >5 mm, the raw materials must be used for size reduction before the feedstock is sent to the hammer mill (crusher) to reach a diameter of less than 3 mm.
2. Mixing Section
Two open doors structure, discharge rapidly, no leakage, no residue. Multiform liquid adding system and can be matched with compressed air jetting system Suitable for mixing premix, poultry feed, aquatic feed, additives and chemical and medicine industries, etc
3. Pelletizing Section
Acting as the heart part of the whole processing line, ring die pellet mill through adjusting the rotational speed of screw feeder axis to obtain the suitable flow of material, through the enforced feeder, enter the pressing room to pelletize finally.
4. Cooling Section
After the pelletizing process, the temperature of the feed pellet is about 60-80 degrees Celsius, with a moisture content of about 15%. A Cooler must then be used to reduce the moisture content of the wood pellets to about 3-4%, thereby making the feed pellets easier to store.
5. Classifying screen
It is applicable for screening and classifying of mash or pellet feed. It is also can be used for cleaning of raw materials and classifyingof semi finished products after second grinding.
by large and medium feed mills.
6. Packing Section
After cooling and screening, the feed pellet must be protected from moisture and other environmental conditions. For this there is the packing process, which is effectively handled by our Semi-Auto Packing Machine.
Pre-sale service:
1.Provide our client with investment guide for free.
2.Provide our client with evaluation investment scheme for free
3.Free visit to our factory.
4.Design of production line scheme is provided for free.
In-sale service:
1. Experienced workers are sent to provide track service when equipment is transported.
2. Experienced technicians or engineers will be sent for on-site installation, adjustment and technical devices according to clients' engineering requirement.
3. "Operating instruction manual", equipment assembly drawings and wearing parts list in duplicate will be provided for free.
Post-sale service:
1. On the premise that equipment is operated correctly and in warranty period, we accept repair, exchange, and return items.
2. We provide permanent favorable spare parts for our clients.
3. We provide permanent technology support and related help.
² Professional engineering design
² E arliest delivery ,high quality with best price
² Safe and efficient transport services
² Efficient installation guide can send video installation and operation
² One year guarantee for whole machine, except the wearing parts .
² We can provide engineers available to service machinery overseas.
² 24 hours technical support by E-mail or telephone.
