- Low iron tempered embossed glass.
- 3.2mm thickness, enhance the impact resistance of modules.
- Self- cleaning function.
- The bending strength is 3-5 times that of ordinary glass.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
25 years
-
Brand Name:
-
Jinko
-
Model Number:
-
JKM605-625N-78HL4-BDV
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2465*1134*30mm
-
Application:
-
Solar Power System
-

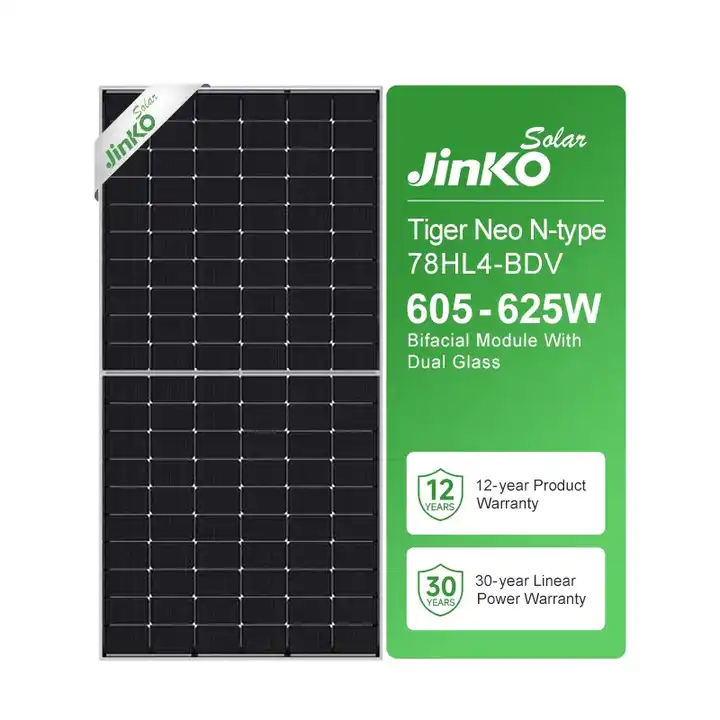

Product name:
-
Jinko Solar Panel 625W
-
Keyword:
-
Jinko Tiger Neo Solar Panel
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68 Rated
-
Weight:
-
34.6kg
-
Cell Type:
-
N-type Monocrystalline
-
Glass:
-
3.2mm Tempered Low Iron
-
Connector:
-
MC4 Compatible Connector
-
Solar cell:
-
Mono 210mm*105mm
Quick Details
-
Cell size:
-
210mmx210mm
-
Type:
-
N-TYPE
-
Panel Efficiency:
-
22.36%
-
Warranty:
-
25 years
-
Brand Name:
-
Jinko
-
Model Number:
-
JKM605-625N-78HL4-BDV
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
2465*1134*30mm
-
Application:
-
Solar Power System
-
Product name:
-
Jinko Solar Panel 625W
-
Keyword:
-
Jinko Tiger Neo Solar Panel
-
Frame:
-
Anodized Aluminium Alloy
-
Junction Box:
-
IP68 Rated
-
Weight:
-
34.6kg
-
Cell Type:
-
N-type Monocrystalline
-
Glass:
-
3.2mm Tempered Low Iron
-
Connector:
-
MC4 Compatible Connector
-
Solar cell:
-
Mono 210mm*105mm
Product Description
Electrical Data
|
SPEZIFIKATIONEN (STC)
|
|
|
|
|
|
|||||
|
Modul typ
|
JKM605-625N-78HL4-BDV
|
|
|
|
|
|||||
|
Maximale Leistung (Pmax)
|
605Wp
|
610Wp
|
615Wp
|
620Wp
|
625Wp
|
|||||
|
Maximale Leistungs spannung (Vmp)
|
45,42 V
|
45,60 V
|
45,77 V
|
45,93 V
|
46,10 V
|
|||||
|
Maximaler Strom Strom (Imp)
|
13.32A
|
13.38A
|
13.44A
|
13.50A
|
13.56A
|
|||||
|
Leerlaufs pannung (Voc)
|
55,17 V
|
55,31 V
|
55,44 V
|
55,58 V
|
55,72 V
|
|||||
|
Kurzschluss strom (Isc)
|
13,95 A
|
14.03A
|
14.11A
|
14.19A
|
14.27A
|
|||||
|
Modul effizienz STC (%)
|
21,64%
|
21,82%
|
22.00%
|
22.18%
|
22.36%
|
|||||
|
Betriebs temperatur (°C)
|
-40 °C ~ + 85 °C
|
|
|
|
|
|||||
|
Maximale Systems pannung
|
1500VDC (IEC)
|
|
|
|
|
|||||
|
Maximale Serien sicherungs bewertung
|
30A
|
|
|
|
|
|||||
|
Macht toleranz
|
0 ~ + 3%
|
|
|
|
|
|||||
|
Temperatur koeffizienten von Pmax
|
-0,30%/°C
|
|
|
|
|
|||||
|
Temperatur koeffizienten von Voc
|
-0,25%/°C
|
|
|
|
|
|||||
|
Temperatur koeffizienten von Isc
|
0,046%/°C
|
|
|
|
|
|||||
|
Nenn betriebs zellen temperatur (NOCT)
|
45 ± 2 °C
|
|
|
|
|
|||||
|
Siehe. Bifazialer Faktor
|
80 ± 5%
|
|
|
|
|
|||||
About Jinko Tiger Neo
Material
Tempered Glass
9BB mono solar cell
- Half cut mono solar cells, up to 22% efficiency.
- High-precision screen printing to ensure accurate grid position for automatic soldering and laser cutting.
- No color difference, outstanding appearance.
- High-precision screen printing to ensure accurate grid position for automatic soldering and laser cutting.
- No color difference, outstanding appearance.
Junction Box
- 2 to 6 terminal blocks can be set as needed.
- All connection methods are connected by quick plug-in.
- The shell is made of imported high-grade raw materials and has high anti-aging and UV resistance.
- IP67 & IP68 rate protection level.
- All connection methods are connected by quick plug-in.
- The shell is made of imported high-grade raw materials and has high anti-aging and UV resistance.
- IP67 & IP68 rate protection level.
Aluminum Alloy Frame
- Silver frame are optional.
- Strong corrosion and oxidation resistance.
- Strong strength and firmness.
- Easy to transport and install, even if the surface is scratched, it will not oxidize and will not affect performance.
- Strong corrosion and oxidation resistance.
- Strong strength and firmness.
- Easy to transport and install, even if the surface is scratched, it will not oxidize and will not affect performance.
EVA film
- Enhance the light transmission of the components.
- The cells are packaged to prevent the external environment from affecting the electrical performance of the cells.
- Bonding solar cells, tempered glass, TPT together, with a certain bond strength.
- The cells are packaged to prevent the external environment from affecting the electrical performance of the cells.
- Bonding solar cells, tempered glass, TPT together, with a certain bond strength.
