Ensure Color and Power Difference.
Ensure high yields,consistent performance and durability.
- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
10YEARS
-
Brand Name:
-

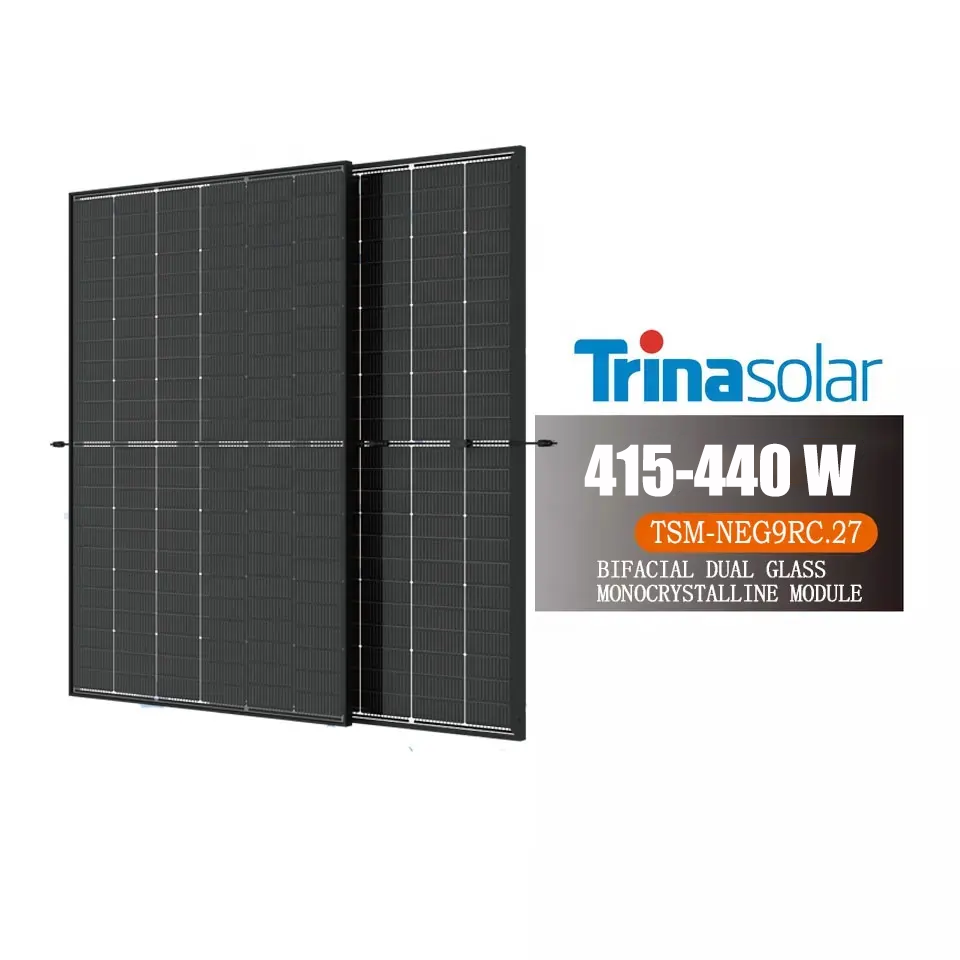

Trina
-
Model Number:
-
TSM-NEG9RC.27, TSM-NEG9RC.27
-
Place of Origin:
-
Anhui, China, Anhui-China
-
Panel Dimensions:
-
1762*1134*30 mm
-
No.of cells:
-
144
-
Solar cell:
-
Half Cut Cell
-
Cell Type:
-
Mono Crystalline
-
Junction Box:
-
IP68 Rated
-
Glass:
-
3.2mm,Anti-Reflection Coating,High Transmission,Tempered Glass
-
Frame:
-
Anodized Aluminium Alloy
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
Half Cell, Bifacial, Double-glass, All Black, MWT, N-TYPE
-
Panel Efficiency:
-
22.0%, 22.0%
-
Warranty:
-
10YEARS
-
Brand Name:
-
Trina
-
Model Number:
-
TSM-NEG9RC.27, TSM-NEG9RC.27
-
Place of Origin:
-
Anhui, China, Anhui-China
-
Panel Dimensions:
-
1762*1134*30 mm
-
No.of cells:
-
144
-
Solar cell:
-
Half Cut Cell
-
Cell Type:
-
Mono Crystalline
-
Junction Box:
-
IP68 Rated
-
Glass:
-
3.2mm,Anti-Reflection Coating,High Transmission,Tempered Glass
-
Frame:
-
Anodized Aluminium Alloy
|
Module Type
|
NEG9RC27_415
|
NEG9RC27_420
|
NEG9RC27_425
|
NEG9RC27_430
|
NEG9RC27_435
|
NEG9RC27_440
|
|||||
|
Maximum Power (Pmax)
|
415Wp
|
420Wp
|
425Wp
|
430Wp
|
435Wp
|
440Wp
|
|||||
|
Maximum Power Voltage (Vmp)
|
42.1
|
42.5
|
42.9
|
43.2
|
43.6
|
44.0
|
|||||
|
Maximum Power Current (Imp)
|
9.86
|
9.89
|
9.92
|
9.96
|
9.99
|
10.01
|
|||||
|
Open-circuit Voltage (Voc)
|
50.1
|
50.5
|
50.9
|
51.4
|
50.4
|
51.8
|
|||||
|
Short-circuit Current (Isc)
|
10.50
|
10.53
|
10.56
|
10.59
|
10.64
|
10.67
|
|||||
|
Module Efficiency STC (%)
|
20.8%
|
21%
|
21.3%
|
21.5%
|
21.8%
|
22%
|
|||||
|
Operating Temperature(ȭ)
|
-40℃~+85℃
|
|
|
|
|
|
|||||
|
Maximum system voltage
|
DC1500V (IEC/UL)
|
|
|
|
|
|
|||||
|
Maximum series fuse rating
|
25A
|
|
|
|
|
|
|||||
|
Power tolerance
|
0~+3%
|
|
|
|
|
|
|||||
|
Temperature coefficients of Pmax
|
-0.34%/℃
|
|
|
|
|
|
|||||
|
Temperature coefficients of Voc
|
-0.25%/℃
|
|
|
|
|
|
|||||
|
Temperature coefficients of Isc
|
0.04%/℃
|
|
|
|
|
|
|||||
|
Nominal operating cell temperature (NOCT)
|
43±2℃
|
|
|
|
|
|
|||||
Half Cut Technology
Under the same shadow condition, power loss of half-cell solar panel is less than that of full cell solar panel.
Multi Busbar Technology
MBB technology improves efficiency of modules, offers a better aesthetic appearance.
PERC Technology
The PERC cell has a passivated rear side and a laser grooving process, which significantly improves the cell efficiency.
100% Cells Sorting
100% EL Testing
Before and Following Lamination
Ensure "Zero" micro crack monitoring before final Inspection, Continuous line monitoring and video/photo record for each cell and
panel.
Ensure "Zero" micro crack monitoring before final Inspection, Continuous line monitoring and video/photo record for each cell and
panel.
100% module Inspection
Before and After Lamination.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
Most stringent acceptance criteria and tightest tolerance,
Intelligent alarm and stop mechanism in case of any deviation or errors.
