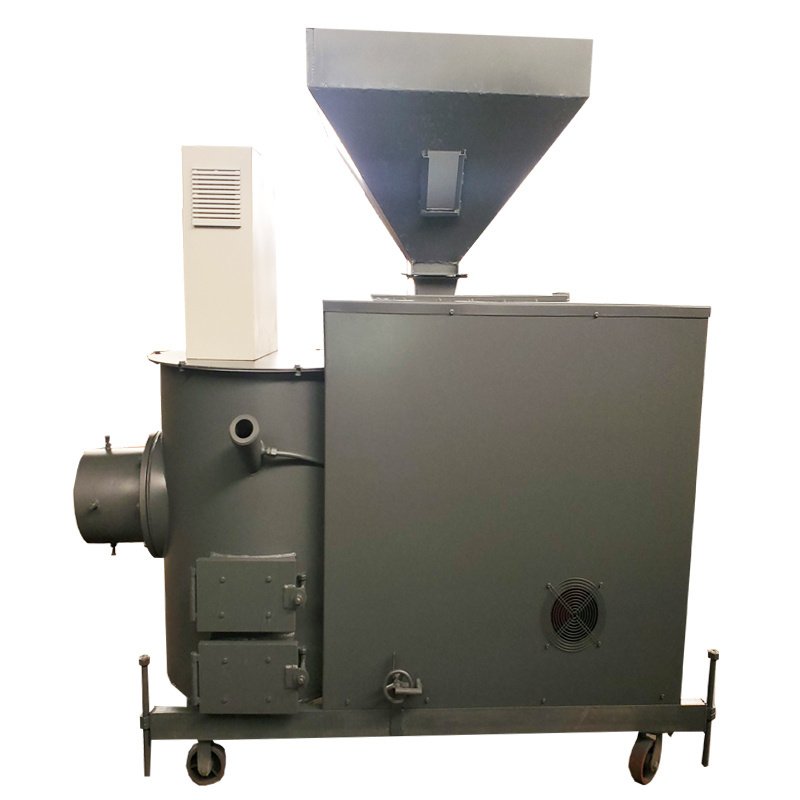

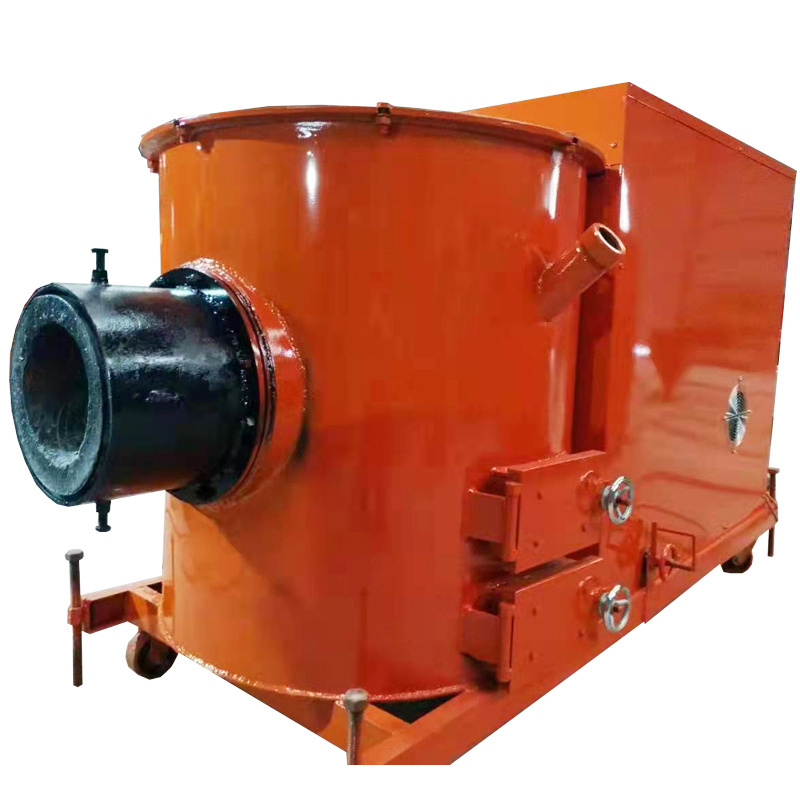

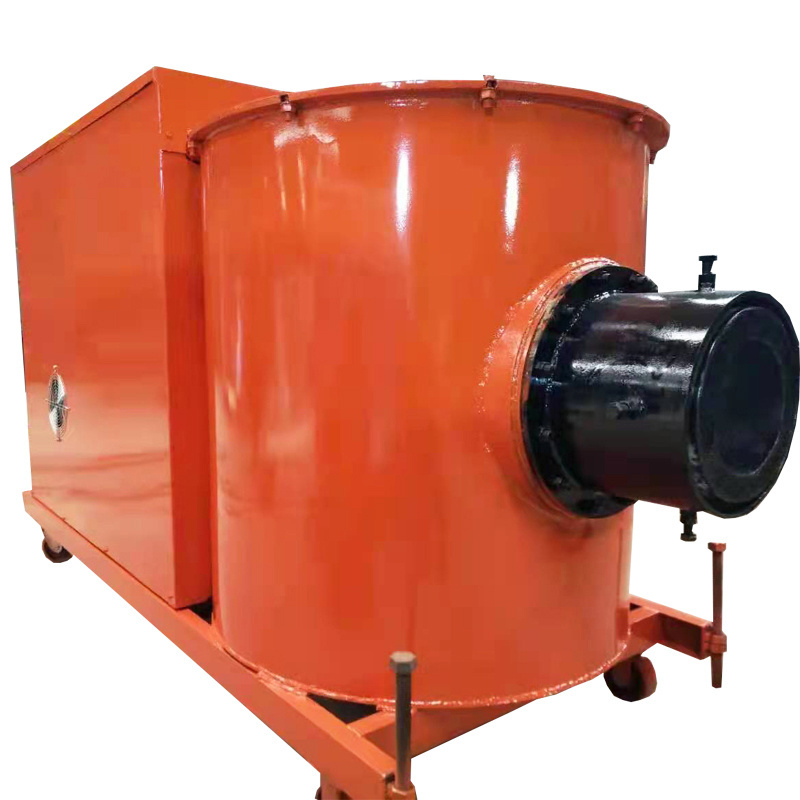

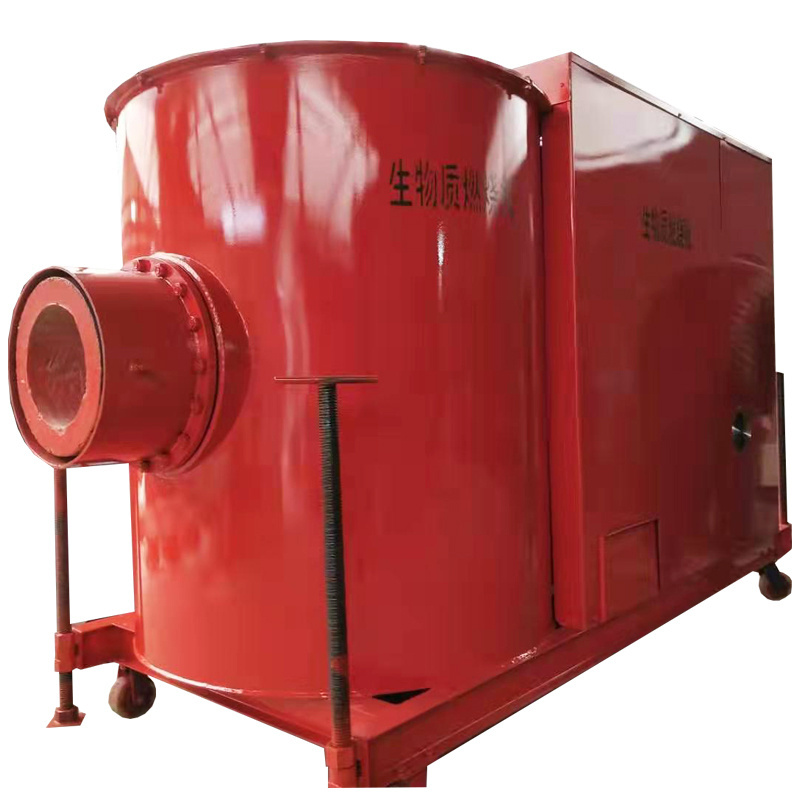

Biomass high temperature cracking multifunctional burner has good performance and can be customized according to the actual needs of customers, and can also be modified
f
or coal-fired, gas-fired and oil-fired boilers
that are now in operation. Biomass burners
are mainly used in steam boilers, hot water boilers, metallurgical industry, drying equipment, spraying equipment, ironing
equipment, industrial furnaces, asphalt heating equipment, centralized heating, etc.
- Product Details
- {{item.text}}
Quick Details
-
Core Components:
-
motor, Electric control box
-
Place of Origin:
-
China
-
Voltage:
-
380v50hz
-
Weight:
-
960 KG, 0.96-5.7t
-
Dimension(L*W*H):
-
1900*920*1850
-
Product Name:
-
Biomass Burner
-
material:
-
cold rolled steel
-
Application:
-
Industrial Boilers
-
Usage:
-
heater
-
Raw material:
-
wood pellets
-
Calorific Value:
-
450000-4800000kcal/h
-
Maximum fuel consumption:
-
100-1000kg/h
-
Function:
-
Heat Resource
-
Color:
-
Red Orange Grey Color
Quick Details
-
Warranty:
-
1 Year
-
Applicable Industries:
-
industrial heating, industrial annealing furnace, oil, gas, coal-fired large-tonnage boiler, coating line body, electroplating plant oven, boiler, small power station boiler, industrial kiln, incinerator, melting furnace,, die-casting machine, drying equipment,, kitchen equipment, food drying equipment, ironing equipment, baking equipment, road construction machinery, asphalt heating equipment,, heat-conducting oil boiler, hot water boiler, other industries
-
Marketing Type:
-
Hot Product 2021
-
Core Components:
-
motor, Electric control box
-
Place of Origin:
-
China
-
Voltage:
-
380v50hz
-
Weight:
-
960 KG, 0.96-5.7t
-
Dimension(L*W*H):
-
1900*920*1850
-
Product Name:
-
Biomass Burner
-
material:
-
cold rolled steel
-
Application:
-
Industrial Boilers
-
Usage:
-
heater
-
Raw material:
-
wood pellets
-
Calorific Value:
-
450000-4800000kcal/h
-
Maximum fuel consumption:
-
100-1000kg/h
-
Function:
-
Heat Resource
-
Color:
-
Red Orange Grey Color
Product Overview
Biomass Burner Introduction
Biomass burner, a biomass semi-gasification automatic control burner to biomass pellets, wood chips, wood flour, sawdust and other biomass as fuel biomass high temperature cracking burner, generally divided into two models of air-cooled burner and water-cooled
burner.
Biomass burner is suitable for coating line body, electroplating plant baking furnace, boiler, small power station boiler,industrial kiln, incinerator, melting furnace, die-casting machine, drying equipment, kitchen equipment, drying equipment, food drying equipment, ironing equipment, baking equipment, road construction machinery and equipment, industrial annealing furnace,fuel oil, gas, coal-fired large-tonnage boiler, asphalt heating equipment, heat-conducting oil boiler, hot water boiler and other industries.Simple operation; with intelligent control, automatic feeding, wind dust removal, reduce labor intensity, simpleoperation, easy maintenance, small workload, no need for manned.
Our Advantages:
1、Good thermal insulation performance of biomass pellet burner
Equipment can withstand more than 1000 ℃ high temperature at all times, mainly because of the special high temperature resistant materials as the core liner, up to 1300 degrees of high temperature, durable.
2、Automatic temperature control. Constant temperature control Intelligent setting, feeding speed, the size of the oxygen supply are used to control technology, a comprehensive response to a variety of combustion needs, digital operation. And according to the actual combustion temperature demand, flexible and free to set the temperature.
3、Pellet burner with high efficiency and fast fire The equipment adopts the streamline fire design, so that the burner has no resistance to fire, and the combustion efficiency is higher.
burner.
Biomass burner is suitable for coating line body, electroplating plant baking furnace, boiler, small power station boiler,industrial kiln, incinerator, melting furnace, die-casting machine, drying equipment, kitchen equipment, drying equipment, food drying equipment, ironing equipment, baking equipment, road construction machinery and equipment, industrial annealing furnace,fuel oil, gas, coal-fired large-tonnage boiler, asphalt heating equipment, heat-conducting oil boiler, hot water boiler and other industries.Simple operation; with intelligent control, automatic feeding, wind dust removal, reduce labor intensity, simpleoperation, easy maintenance, small workload, no need for manned.
Our Advantages:
1、Good thermal insulation performance of biomass pellet burner
Equipment can withstand more than 1000 ℃ high temperature at all times, mainly because of the special high temperature resistant materials as the core liner, up to 1300 degrees of high temperature, durable.
2、Automatic temperature control. Constant temperature control Intelligent setting, feeding speed, the size of the oxygen supply are used to control technology, a comprehensive response to a variety of combustion needs, digital operation. And according to the actual combustion temperature demand, flexible and free to set the temperature.
3、Pellet burner with high efficiency and fast fire The equipment adopts the streamline fire design, so that the burner has no resistance to fire, and the combustion efficiency is higher.
4、Automatic alarm system function Adopt automatic alarm system, lack
of fuel or improper operation, the system will automatically alarm, safe to use.
5、Stable performance of the electronic control system
6、Unique power link, anti jamming, anti tempering
7、Configuration of
refractory nozzle, the nozzle is made of special stainless steel or refractory materials, heat-resistant temperature up to 1100 ℃,long service life.
refractory nozzle, the nozzle is made of special stainless steel or refractory materials, heat-resistant temperature up to 1100 ℃,long service life.
8、Adopt three times to oxygen air distribution design, so that the combustion is more fully, reduce slag emissions, more environmentally friendly, more material saving.
|
Model
|
Heat output(kcal/h)
|
Motor(KW)
|
Corresponding boilers(T)
|
Max. fuel consumption
|
Size(mm)
|
Weight(t)
|
|
ML45
|
450000
|
2.05
|
0.5-0.75
|
100/h
|
1990*850*2100
|
0.96
|
|
ML90
|
900000
|
2.2+0.75
|
1-1.5
|
200/h
|
2280*920*1850
|
1.5
|
|
ML120
|
1200000
|
3+0.75
|
2
|
266/h
|
2450*1020*1980
|
1.86
|
|
ML180
|
1800000
|
3+0.75
|
3
|
400/h
|
2700*1190*2100
|
2.64
|
|
ML240
|
2400000
|
5.5+0.75
|
4
|
533/h
|
3050*1400*2300
|
3.1
|
|
ML300
|
3000000
|
7.5+0.75
|
5
|
667/h
|
3200*1600*2600
|
4.3
|
|
ML360
|
3600000
|
7.5+0.75
|
6
|
800/h
|
3850*1785*2720
|
4.8
|
|
ML420
|
4200000
|
11+0.75
|
7
|
933/h
|
4150*1900*2800
|
5.1
|
|
ML480
|
4800000
|
14
|
8
|
1066/h
|
4460*2068*2900
|
5.65
|
Widely used
PRODUCT CONFIGURATION
Power Distribution Boxes
Also called distribution cabinet, is the collective name of motor control center. Distribution box is according to the electrical wiring requirements of the switch gear, measuring instruments, protection appliances and auxiliary equipment assembled in the
closed or semi-enclosed metal cabinet or screen width, constituting a low-voltage power distribution device. Easy to manage, when the circuit failure is conducive to maintenance. Distribution boxes and distribution cabinets distribution panels distribution
with, etc., is the centralized installation of switches, instruments and other equipment sets.
closed or semi-enclosed metal cabinet or screen width, constituting a low-voltage power distribution device. Easy to manage, when the circuit failure is conducive to maintenance. Distribution boxes and distribution cabinets distribution panels distribution
with, etc., is the centralized installation of switches, instruments and other equipment sets.
Combustion chambers
1、Ensure that the pulverized coal airflow sent into the furnace can quickly and steadily catch fire and burn
2、Supply reasonable secondary wind, so that it can mix well with the primary wind in time to ensure high combustion efficiency.
3, the flame in the furnace chamber is filled with good degree, and will not rush the wall to avoid cinder.
4、Better combustion suitability and load adjustment range.
5、Smaller flow resistance, less pollutant generation.
Burner outlet
Equipped with refractory nozzle, the nozzle is made of special stainless steel or refractory materials, heat-resistant temperature
up to 1500 ℃, long service life.
up to 1500 ℃, long service life.
Burner view port
Adopt intelligent control, automatic feeding, wind dust removal, reduce labor intensity, simple operation, easy maintenance, small
workload, no need for manned duty
workload, no need for manned duty
SALES AND SERVICE NETWORK
Successful Project
Coal-fired boiler renovation
Paint booth
comprehensive renovation
SIMILAR PRODUCTS
Company Introduction
Jinan Minglun Machinery Co., Ltd. is a manufacturer specializing in the production of wood pellet burner, wood pellet machine,wood pellet stove. Accessories supply is complete, large, medium and small equipment models are complete. Committed to serving overseas customers, providing excellent after-sales service, professional technical team, complete accessories supply, and hope to cooperate with you for a long time.
Packing & Delivery
Fully enclosed wooden box packaging.
This fully enclosed box can effectively prevent dust, moisture, oil. And it is because of the fully closed state, can play a maximum role to protect the goods it is packed. And for some small volume of goods, will not appear because of the incomplete packaging fall. So there are still a lot of large goods, according to their own volume to use wooden box packaging. Also can effectively adapt to the volume of the means of transport, to make certain changes.
