Quick Details
-
Working hours:
-
601
-
Application:
-
Aggricultural Farm Work Machinery
-
After-sales Service Provided:
-
Overseas Service Provided
-
Implement:
-
Plough Harrow Cultivator Trailer
Quick Details
-
Year:
-
2021
-
Place of Origin:
-
USA
-
Weight:
-
1195 KG
-
Working hours:
-
601
-
Application:
-
Aggricultural Farm Work Machinery
-
After-sales Service Provided:
-
Overseas Service Provided
-
Implement:
-
Plough Harrow Cultivator Trailer

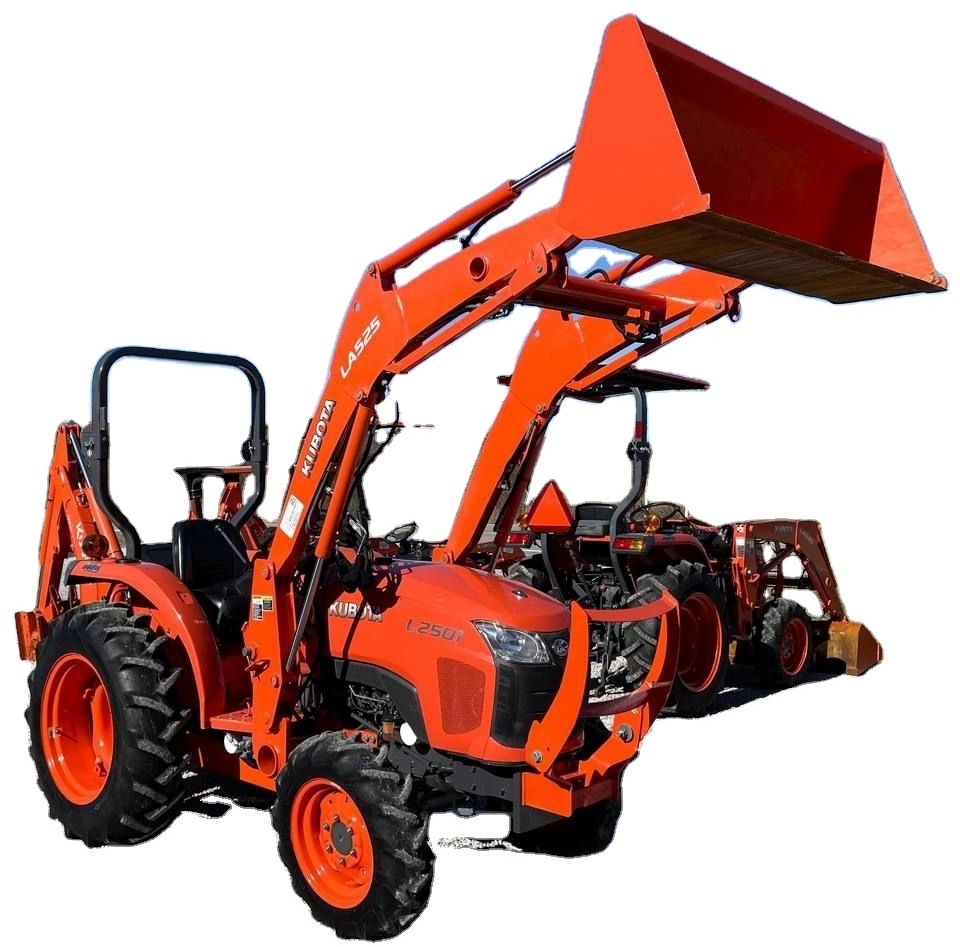

DETAILS OF 25HP KUBOTA L2501 TRACTOR
Dimensions
Overall Length
110.63 in
Width Outside Frame
4.6 ft in
Height To Top Of Cab
7.65 ft in
Wheelbase
63.39 in
Ground Clearance
13.39 in
Specifications
Engine
Number Of Cylinders
3
Engine Make
KUBOTA
Engine Model
D1703-M-DI-E4
Engine Type
Direct injection, Vertical, Water-Cooled 4 cycle diesel
Net Power
23.9 hp
Gross Power
24.8 hp
Pto Power
20.5 hp
Rated Speed
2200 rpm
Max Torque
70.3 lb ft
Displacement
100.5 cu in
Bore
3.5 in
Stroke
3.7 in
Operational
Fuel Capacity
10.1 gal
Operating Weight
2601.5 lb
Cooling System Fluid Capacity
1.6 gal
3 Point Hitch Type
Category 1
Turning Radius
8.3 ft in
3 Point Hitch Lift Capacity @ 24 Inches
1389 lb
Tire Size Front - 2wd / 4wd
7.2-16
Rear Tires Size 2wd/4wd
11.2-24
Alternator Supplied Amperage
40 amps
Operating Voltage
12 V
Lift Configuration
Position control
Transmission
Brakes
Wet disk type
Steering
Integral type power steering
Clutch, Wet/Dry
Dry type Single stage
Transmission Type
Manual Transmission - Gear shift
Number Of Forward Gears
8
Number Of Reverse Gears
4
Max Speed
10.8 mph
Hydraulic System
Implement Pump Flow Ps
3.2 gal/min
System Pressure
2205 psi
Pump Flow Capacity
5.2 gal/min
