Quick Details
-
Lift Speed:
-
3-8mmin
-
product name:
-
three phase construction hoist
-
power supply:
-
3 phase 380V 50Hz or design
-
control method:
-
remote control, pendent or design
-
Running Speed:
-
16-20mmin
-
Weight:
-
172-2590kg
-
work duty:
-
M3,M4
-
main electrical parts:
-
Siemens, Schneider
-
motor:
-
three-in-one motor
-
application:
-
workshop,warehouse
-
speed:
-
normal and low speed
-
Certification:
-
CE GOST ISO SGS
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
China (Mainland)
-
Brand Name:
-
WEIHUA
-
Lift Speed:
-
3-8mmin
-
product name:
-
three phase construction hoist
-
power supply:
-
3 phase 380V 50Hz or design
-
control method:
-
remote control, pendent or design
-
Running Speed:
-
16-20mmin
-
Weight:
-
172-2590kg
-
work duty:
-
M3,M4
-
main electrical parts:
-
Siemens, Schneider
-
motor:
-
three-in-one motor
-
application:
-
workshop,warehouse
-
speed:
-
normal and low speed
-
Certification:
-
CE GOST ISO SGS

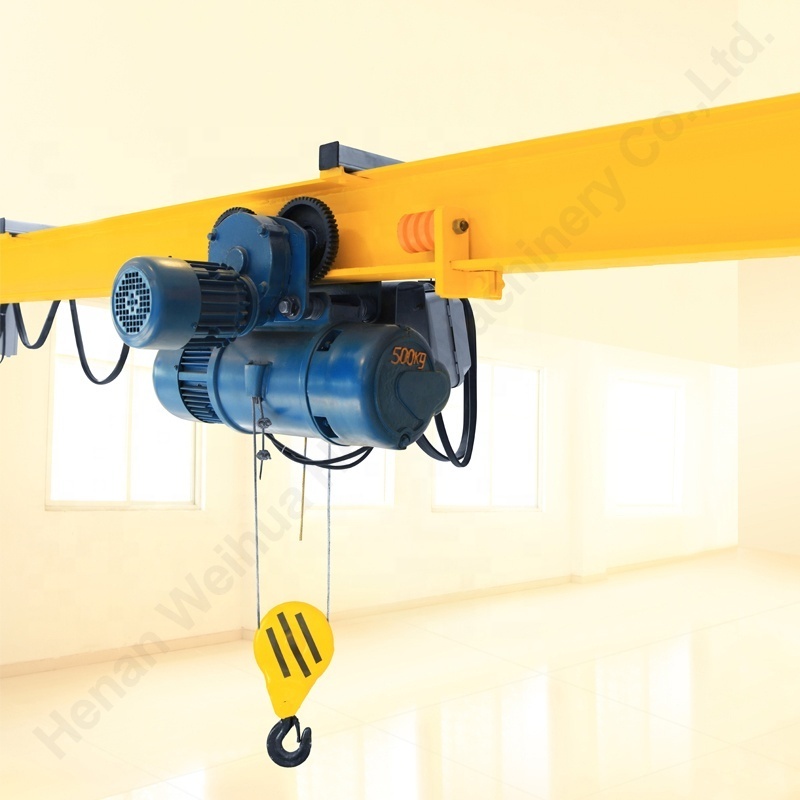

WEIHUA Electric Three Phase Construction Concrete Wire Rope Hoist Lift Machine 3 ton 5 ton 10 ton 16 ton
Lifting Weight: 0.25t-32t
Lifting Height: 6m-45m
Working Level: A4
Three phase construction hoist is a small-sized lifting equipment, which can be mounted on single beam crane, overhead crane, gantry crane and jib crane. With slight modification, CD1/MD1 wire rope electric hoist can be also used as winch.
Three phase construction hoist is widely used in factories, mines, harbors, warehouses, cargo storage areas and shops. Model CD1 hoist has only one normal speed, which can satisfy normal application. Model MD1 hoist has 2 working speeds: normal and low speed. At low speed, it can do precise loading and unloading, mounding of sand box, maintenance of machine tools.
Notes: If you want to ask any questions about this product directly with us, pls click here !
|
Model |
Lifting Weight |
Lifting Speed |
Running Speed |
Hoisting Motor |
Running Motor |
Weight |
||
|
t |
m/min |
m/min |
Model |
Power kW |
Model |
Power kW |
kgs |
|
|
CD 1T-12M |
1 |
8 |
20 |
ZD22-4 |
1.5 |
ZDY11-4 |
0.2 |
172 |
|
CD 3T-12M |
3 |
8 |
20 |
ZD41-4 |
7.5 |
ZDY12-4 |
0.8 |
597 |
|
CD 5T-12M |
5 |
8 |
20 |
ZD41-4 |
7.5 |
ZDY21-4 |
0.8 |
597 |
|
CD 10T-12M |
10 |
7 |
20 |
ZD51-4 |
13 |
ZDY21-4 |
0.8 |
1100 |
|
CD12T-12M |
12 |
3.5 |
18 |
ZD51-4 |
13 |
ZDY21-4 |
0.8 |
1200 |
|
CD 16T-12M |
16 |
3.5 |
18 |
ZD51-4 |
13 |
ZDY21-4 |
0.8 |
1200 |
|
CD 20T-12M |
20 |
4.2 |
14 |
ZD52-4 |
18.5 |
ZDY21-4 |
0.8 |
1930 |
|
CD 32T-12M |
32 |
3 |
16 |
ZDx62-6 |
18.5 |
ZDY22-4 |
1.5 |
2950 |
