Quick Details
-
Brick size:
-
400*150*200 mm, 240*115*90 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UNIQUE
-
Voltage:
-
220V/380V, 220V/380V
-
Dimension(L*W*H):
-
4750*2000*2950(mm)
-
Weight (KG):
-
8000 kg
-
Name:
-
Cement Brick Block Making Machine
-
Model:
-
QT8-15
-
Capacity:
-
hollow brick 4608-5760 pcs/8 hours
-
Power:
-
30kw
-
Cycle Time:
-
15-25s
-
rated pressure:
-
15 Mpa
-
Certification:
-
ISO
Quick Details
-
Type:
-
Hollow Block Making Machine, Interlock Block Making Machine
-
Brick Raw Material:
-
CONCRETE
-
Production Capacity (Pieces/8 hours):
-
12000 pcs/8hours
-
Brick size:
-
400*150*200 mm, 240*115*90 mm, 400*200*200 mm, 230*220*115 mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
UNIQUE
-
Voltage:
-
220V/380V, 220V/380V
-
Dimension(L*W*H):
-
4750*2000*2950(mm)
-
Weight (KG):
-
8000 kg
-
Name:
-
Cement Brick Block Making Machine
-
Model:
-
QT8-15
-
Capacity:
-
hollow brick 4608-5760 pcs/8 hours
-
Power:
-
30kw
-
Cycle Time:
-
15-25s
-
rated pressure:
-
15 Mpa
-
Certification:
-
ISO

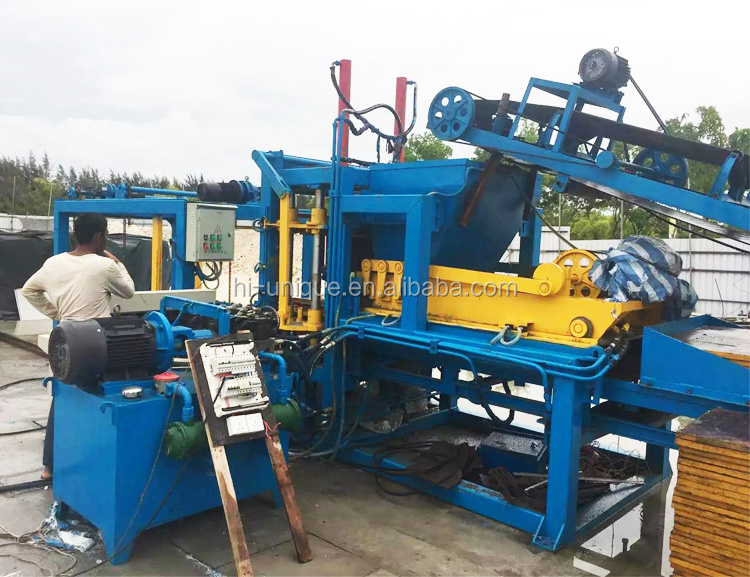

High Technology QT8-15 Autoclaved Aerated Concrete Block Making Machine Made in China
1. The description of autoclaved aerated concrete block making machine:
1. Since the moulds are changeable, the concrete equipment is able to produce different types of blocks/bricks, and this is a hydraulic machine can produces a stronger block, due to the greater pound pressure applied by the hydraulic system.
2. The block manufacturer can also realize substantial savings by using less cement. A ratio from 8:1 to 11:1 sand/cement can be achieved. This machine is designed for the manufacturer with a steady year turnover and with a certain number casher to make the factory running.
3. This machines can be equipped with an automatic elevator/skip for loading mix into hopper, agitator, an automatic pallet feeder, pallet ejector, brush for cleaning blocks and a run off conveyor (see above). It is suggested that you use a high capacity mixer of over 500 liters. A work force of 20 to 50 employees would keep this factory running at full capacity.
2. Main paramaters of autoclaved aerated concrete block making machine:
|
Hollow Block Capacity(390×190×190mm) |
8/module |
|
Solid Brick Capacity(240×115×53mm) |
45/module |
|
Holland Brick Capacity(240×115×90mm) |
22/module |
|
Main Dimension(L×W×H) |
4750×2000×2950(mm) |
|
Pallet Size(L×W×H) |
980×840×40(mm) |
|
Pressure Rating |
12~25Mpa |
|
Vibration |
50~90KN |
|
Vibration Frequency |
2900~5600r/min |
|
Cycle Time |
15-20(s) |
|
Power(Total) |
35kw |
|
Weight |
8000kg |
|
Hollow Block Capacity(390×190×190mm) |
11520-15360/8hours |
|
Solid Brick Capacity(240×115×53mm) |
60480-80640/8hours |
|
Holland Brick Capacity(200×100×60mm) |
30240-40320/8hours |
3. T
he advantages of
autoclaved aerated concrete block making machine:
1. Perfect humanization Electrical control system
Siemens PLC with Visualization touch screen provide you a Child operation machine.
2. Frequency Conversional Control Technology:
It guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency, and Power saving: 30%;
3. Hydraulic System. Make in China, world Quality , and we can provide you the hydraulic motor as you request .
4. Compulsory Feeding system make sure that the density and intensity of the products are guaranteed;
5. Various product scope:
It produces various color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
