Quick Details
-
Productivity:
-
130cbm/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Maxizm
-
Weight:
-
24500 kg
-
Dimension(L*W*H):
-
12000*2500*3900mm, 10190*2500*3700mm
-
Marketing Type:
-
New Product
-
Keyword:
-
Conveying Concrete Equipment
-
Model:
-
HB37A
-
Feature:
-
Easy Operation
-
Max. speed:
-
90km/h
-
Outline dimension:
-
10190*2500*3700mm
-
Chassis:
-
Sinotruk HOWO
-
Theoretical output:
-
100m³/h
-
Max.reach height:
-
29.6m
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
37m
-
Max. horizontal conveying distance:
-
33M
-
Productivity:
-
130cbm/h
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Maxizm
-
Weight:
-
24500 kg
-
Dimension(L*W*H):
-
12000*2500*3900mm, 10190*2500*3700mm
-
Marketing Type:
-
New Product
-
Keyword:
-
Conveying Concrete Equipment
-
Model:
-
HB37A
-
Feature:
-
Easy Operation
-
Max. speed:
-
90km/h
-
Outline dimension:
-
10190*2500*3700mm
-
Chassis:
-
Sinotruk HOWO
-
Theoretical output:
-
100m³/h
-
Max.reach height:
-
29.6m
Contact
Sales Manager
Smily Zhang
Maxizm Construction Machinery (Qingdao) Co., Ltd.
Wechat/ Mobile/ WhatsApp: 86 17860505276
Smily Zhang
Maxizm Construction Machinery (Qingdao) Co., Ltd.
Wechat/ Mobile/ WhatsApp: 86 17860505276
Products Description

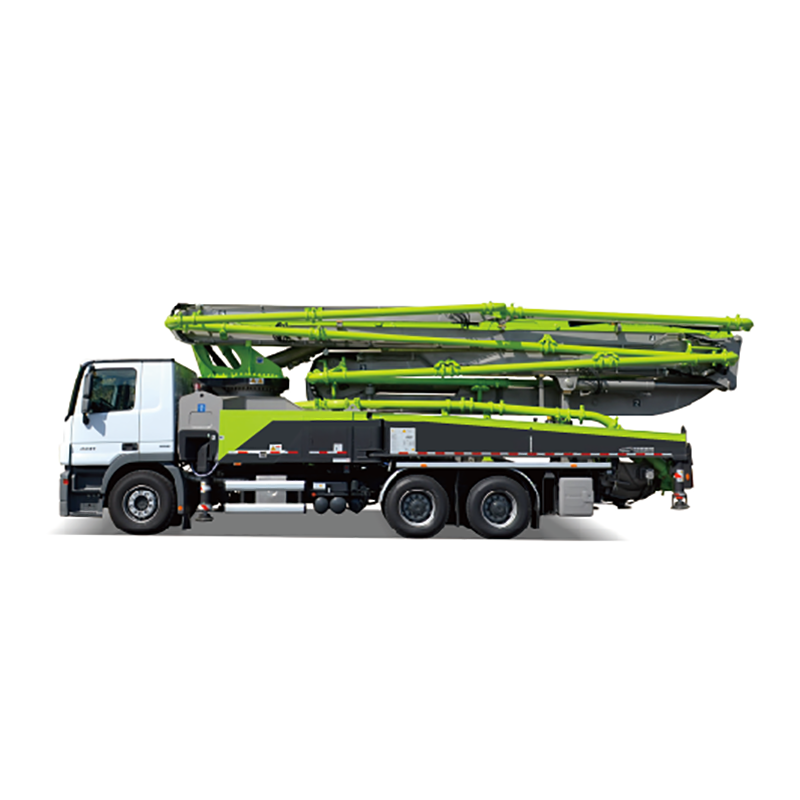

• Compact in design, 38m pump mounted on a 3-axle truck.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 5 arms with unfolding height 9.61m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual man machine interface system.
• PWM+CAN dual communication mode remote control.
• Efficient pump unit, ideal for long time use.
• Agile placing boom with 5 arms with unfolding height 9.61m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual man machine interface system.
• PWM+CAN dual communication mode remote control.
Product Paramenters
|
Category
|
Items
|
Unit
|
Parameters
|
|
Chassis
|
Model
|
|
FM400 64R B
|
|
|
Make
|
|
|
|
|
Max.speed
|
km/h
|
90.8
|
|
|
Max.gradeability
|
|
34.70%
|
|
|
Min.turning diameter
|
m
|
18.788
|
|
|
Brake distance
|
m
|
≤7
|
|
|
Axle base
|
mm
|
4900+1370
|
|
|
Wheelbase (front/rear)
|
mm
|
2019/1834
|
|
|
Approach/departure angle
|
°
|
18th.Oct
|
|
|
Min.ground clearance
|
mm
|
270
|
|
|
Tire
|
|
12.00R20
|
|
Engine
|
Model
|
|
D13
|
|
|
Output power
|
kw/(r/min)
|
294/1400-1800
|
|
|
Max.torque
|
N.m/(r/min)
|
2000/1050-1400
|
|
|
Displacement
|
L
|
12.8
|
|
|
Emission standard
|
|
China Ⅲ GBⅢ
|
|
Others
|
Dimension (L×W×H)
|
mm
|
11990×2500×3900
|
|
|
Overall weight
|
kg
|
28400
|
|
|
Fuel tank volume
|
L
|
410
|
|
|
Fuel consumption (100km)
|
L/100km
|
40
|
