Quick Details
-
Model Number:
-
XBY-01
-
Certificate:
-
ISO9001:2008/CE
-
Application:
-
Protective Construction
-
Feature:
-
Great Protection
-
Wire diameter:
-
1.6-3.2mm
-
Weight:
-
25-50kg/coil
-
Packing:
-
Pallet
Quick Details
-
Material:
-
Iron Wire
-
Place of Origin:
-
Hebei,China
-
Brand Name:
-
Xinboyuan
-
Model Number:
-
XBY-01
-
Certificate:
-
ISO9001:2008/CE
-
Application:
-
Protective Construction
-
Feature:
-
Great Protection
-
Wire diameter:
-
1.6-3.2mm
-
Weight:
-
25-50kg/coil
-
Packing:
-
Pallet
|

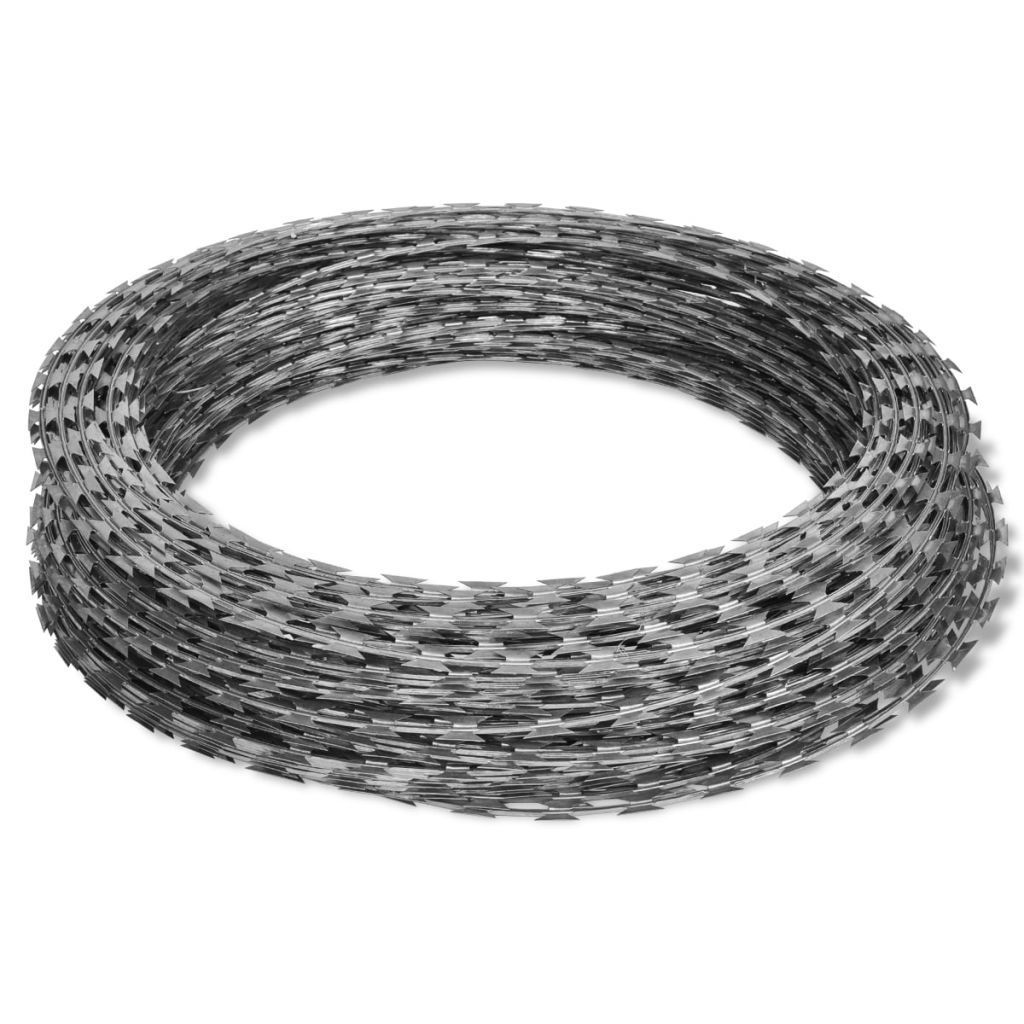

Razor wire description |
|
|
Material |
Hot Dipped Galvanized sheet Hot Dipped Galvanized Wire . |
|
Core Wire Diameter |
2.7 ± 0.1mm |
|
Razor Barbed sheet thickness |
0.5 ± 0.05mm |
|
Razor Loop Diameter |
300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm. 450mm(3 clips), 500mm(3 clips), 900mm(5 clips) are the usually sizes . |
|
Razor Barbed Wire per coil weight |
Be produced as customers requirements. (common weight is 7KG 10KG, 12kg, 14kg) |
|
Meters of per coil Razor Barbed Wire |
Razor Barbed Wire is a tensile products. The greater the stretch strength, the greater the distance between them. |
Product specification
|
Razor wire size specifications |
|||||
|
Peference Model |
Thickness (mm) |
Wire Diameter (mm) |
Barb Length (mm) |
Barb Width (mm) |
Barb Spacing ( mm ) |
|
BTO-12 |
0.5 ± 0.05 |
2.5 ± 0.1 |
12 ± 1 |
15 ± 1 |
26 ± 1 |
|
BTO-15 |
0.5 ± 0.05 |
2.5 ± 0.1 |
18 ± 1 |
15 ± 1 |
33 ± 1 |
|
BTO-22 |
0.5 ± 0.05 |
2.5 ± 0.1 |
20 ± 1 |
15 ± 1 |
34 ± 1 |
|
BTO-28 |
0.5 ± 0.05 |
2.5 ± 0.1 |
28 |
15 |
45 ± 1 |
|
CBT-30 |
0.5 ± 0.05 |
2.5 ± 0.1 |
30 |
18 |
45 ± 1 |
|
CBT-60 |
0.6 ± 0.05 |
2.5 ± 0.1 |
60 ± 2 |
32 ± 1 |
100 ± 1 |
|
CBT-65 |
0.6 ± 0.05 |
2.5 ± 0.1 |
65 ± 2 |
21 ± 1 |
100 ± 1 |
