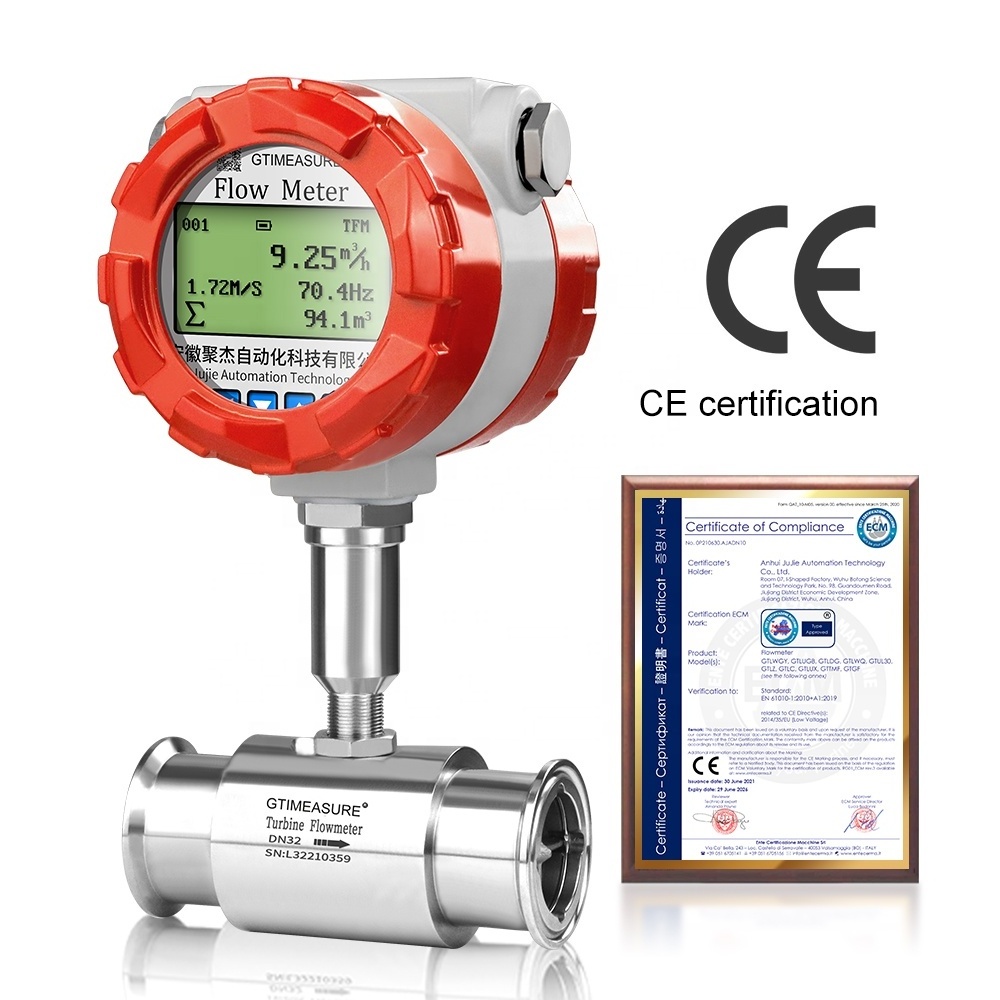

Pure Liquid Measurement Digital Flow Meter Diesel Fuel Oil Diesel Milk Flow Meter 4-20mA RS485  Flowmeter Water
Pure Liquid Measurement Digital Flow Meter Diesel Fuel Oil Diesel Milk Flow Meter 4-20mA RS485  Flowmeter Water
Pure Liquid Measurement Digital Flow Meter Diesel Fuel Oil Diesel Milk Flow Meter 4-20mA RS485  Flowmeter Water
Pure Liquid Measurement Digital Flow Meter Diesel Fuel Oil Diesel Milk Flow Meter 4-20mA RS485  Flowmeter Water
Pure Liquid Measurement Digital Flow Meter Diesel Fuel Oil Diesel Milk Flow Meter 4-20mA RS485  Flowmeter Water
Pure Liquid Measurement Digital Flow Meter Diesel Fuel Oil Diesel Milk Flow Meter 4-20mA RS485  Flowmeter Water
Pure Liquid Measurement Digital Flow Meter Diesel Fuel Oil Diesel Milk Flow Meter 4-20mA RS485  Flowmeter Water
Pure Liquid Measurement Digital Flow Meter Diesel Fuel Oil Diesel Milk Flow Meter 4-20mA RS485  Flowmeter Water

Pure Liquid Measurement Digital Flow Meter Diesel Fuel Oil Diesel Milk Flow Meter 4-20mA RS485 Flowmeter Water

FOB Reference Price: Get Latest Price
≥1 Cartons
US $260
≥20 Cartons
US $250
≥30 Cartons
US $160
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
GTIMEASURE
Model Number:
GTLWGY
Product Name:
Turbine flow meter
Material:
SS304/SS316L/PE
Display:
LCD
Power supply:
24VDC/3.6V lithium battery
Output signal:
Pulse/4~20mA/RS485
Connection:
Flange/Thread/Clamp
Pressure:
6.3MPa/2.5MPa/1.0MPa
Accuracy:
0.5%/1%
Medium temperature:
-20℃-80℃/150℃/180℃

Quick Details

Type:
Variable Area Water Flowmeters, Variable Area Oil Flowmeters
Warranty:
1year
Place of Origin:
Anhui, China
Brand Name:
GTIMEASURE
Model Number:
GTLWGY
Product Name:
Turbine flow meter
Material:
SS304/SS316L/PE
Display:
LCD
Power supply:
24VDC/3.6V lithium battery
Output signal:
Pulse/4~20mA/RS485
Connection:
Flange/Thread/Clamp
Pressure:
6.3MPa/2.5MPa/1.0MPa
Accuracy:
0.5%/1%
Medium temperature:
-20℃-80℃/150℃/180℃
Product Description
Specification
Product Parameters
Precision
DN4-DN10: ±1.0%R ;  DN15-DN100: ±0.5%R  ; DN125-DN200: ±1.0%R
Ratio of Measuring Range
1:10
Instrument Material
Sensor:SS304 (SS316)  ; Impeller: 2Cr13 ; Guide: SS304 ; Bearing: YS8 Alloy (special
material can be  customized)
Conditions of use
Environment temperature: -30℃—60℃
Medium temperature: -20℃—80℃(120℃/150℃ Customizable)
Pressure Level
Threaded connections:6.3MPa(High pressure can be customized)
Flange connections :4.0MPa(High pressure can be customized)
Clamp connections :1.0MPa
Power Supply
3.6V lithium battery (can be used continuonsly for 2 years) /12-24VDC
Power Consumption
≤1W
Signal Output
Pulse  / 4-20mA  /  RS485(Modbus-RTU)
Signal Interface
Internal thread M20*1.5(NPT1/2, etc needs to be customized)
Protection Level
IP65 (IP68 can be customized)
Explosion-proof Level
ExdllCT6 Gb (Optional)
Display
LCD Display: Instantaneous flow , Accumulative flow
Anhui Jujie Automation Technology Co., Ltd. is a research and development, production, sales in one of the automation instrument high-tech enterprises.Company have experienced team of professional sales engineers and high-quality products to ensure better process control solutions for clients! Our main products include: turbine flow meter, electromagnetic flow meter, vortex flow meter, compression vortex flow meter, ultrasonic flow meter, digital pressure gauge, pressure transmitter, liquid level gauge, data recorder and other products
FAQ
1.Are you a manufacturer or a trading company? We are the source manufacturer of flow meters and recording instruments. 2.Can you offer OEM/ODM product? Yes, OEM and ODM are both welcome. 3.What is your minimum order quantity? There are no minimum order quantity, welcome to order according your need. 4.How long about your Warranty? One year warranty and Long-term technical support. 5.How about the quality? We have professional equipment and QC staffs to strict control the quality. 6.What is the standard of package? Export standard package(Cartons or wooden cases)
