Quick Details
-
Production Capacity:
-
35-150bag/min
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XINBAOLONG
-
Dimension(L*W*H):
-
L4200mm *W1000mm*H1520mm
-
Name:
-
Flow packing machine
-
Packing speed:
-
35-150bag/min
-
Bag size:
-
L(140-400)mm* W(30-220)mm* H(5-100)mm
-
Max width of roll film:
-
500mm
-
Packing material:
-
OPP/CPP,PT/PE,KOP/CPP,ALU-FOIL
-
Dimension:
-
L4200mm *W1000mm*H1520mm
-
Rated voltage:
-
220V / 380V
-
Total power:
-
3.2kw
-
Overall weight:
-
750kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Certification:
-
CE/ISO9001
Quick Details
-
Function:
-
Labeling, Sealing, SLITTING, Wrapping, FILLING
-
Packaging Type:
-
Bags, Film, Pouch, Stand-up Pouch
-
Packaging Material:
-
Plastic
-
Production Capacity:
-
35-150bag/min
-
Voltage:
-
220V
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XINBAOLONG
-
Dimension(L*W*H):
-
L4200mm *W1000mm*H1520mm
-
Name:
-
Flow packing machine
-
Packing speed:
-
35-150bag/min
-
Bag size:
-
L(140-400)mm* W(30-220)mm* H(5-100)mm
-
Max width of roll film:
-
500mm
-
Packing material:
-
OPP/CPP,PT/PE,KOP/CPP,ALU-FOIL
-
Dimension:
-
L4200mm *W1000mm*H1520mm
-
Rated voltage:
-
220V / 380V
-
Total power:
-
3.2kw
-
Overall weight:
-
750kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Certification:
-
CE/ISO9001
Product Description
Technical parameters:
|
Model
|
XBL-100A
|
|
Packing speed
|
35-225bag/min
|
|
Bag size
|
L(65-160)mm* W(35-120)mm* H(5-35)mm
|
|
Film width
|
90-250mm
|
|
Packing material
|
OPP/CPP,PT/PE,KOP/CPP,ALU-FOIL
|
|
Dimension
|
(L)3900mm *(W)850mm*(H)1500mm
|
|
Heating power
|
2.1kw
|
|
Motor power
|
0.55+0.75kw
|
|
Total power
|
3.4kw
|
|
Overall weight
|
550kg
|
Scope of application:

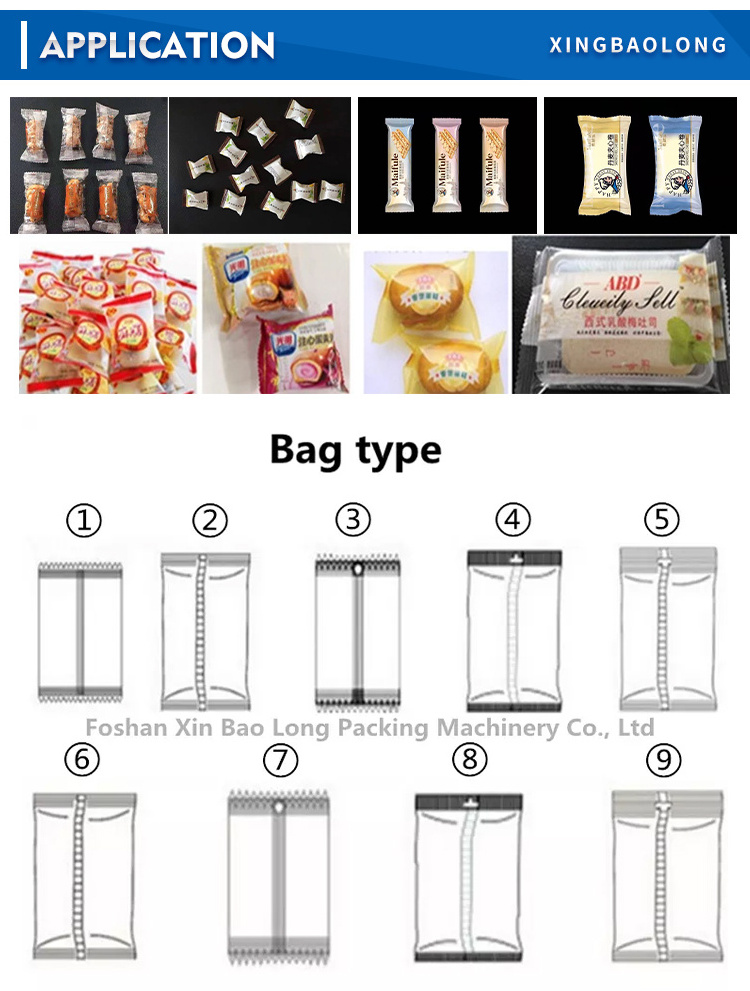

Applicable for packing various regular objects, such as biscuits, pie, chocolate, bread, instant noodle, ice cream, moon cake, candy, medicine, hardware, paper boxes, plates, etc.
Technical characteristics:
1. The bag length is free of manual setting, the equipment automatically detect and set the length.
2. Simplified mechanic gearing, easy to maintain, little vibration, little wear, and long life.
3. The main control circuit takes the single chip developed by our own company, digital screen display and controlled by transducer. Perfect interface between operator and machine, convenient operation.
4. Dual frequency conversion control, bag length can be set and cut on one step, saving time and film.
5. High sensitivity photoelectric eye tracking automatically and accurately.
6. Independent temperature control for each sealer to make sealing more beautiful and stable, suitable for variety of flexible packing material.
Machine Parts:
We do the strict
100% detection
to all the spare parts which come and out of our factory, some main parts like electrical components, transmission parts and seal parts are all imported. Our machine feature:Steady Performance, Low Fault-rate, Qualified for High-speed and constant working.
