Quick Details
-
Model Number:
-
FTDM-81
-
Name:
-

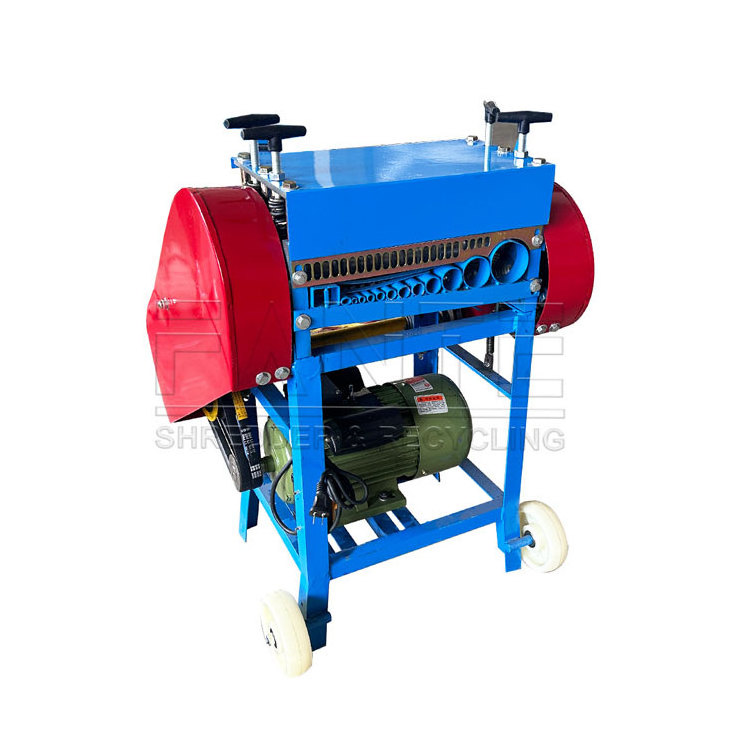

Scrap Wire Stripping Machine
-
Function:
-
Stripping Wire
-
Application:
-
Stripping Cable Wires
-
Product name:
-
Wire Cable Stripping Machine
-
Advantage:
-
Long Service Life
-
Wire range:
-
OD 1-65mm (customizeable)
-
Keywords:
-
Wire Stripping Cutting Machine
-
Type:
-
Electrical Appliance Machinery
-
Warranty:
-
1 Year
-
Feature:
-
Stripping Cutting Machine
Quick Details
-
Use:
-
cutting and stripping wire
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Fante
-
Model Number:
-
FTDM-81
-
Name:
-
Scrap Wire Stripping Machine
-
Function:
-
Stripping Wire
-
Application:
-
Stripping Cable Wires
-
Product name:
-
Wire Cable Stripping Machine
-
Advantage:
-
Long Service Life
-
Wire range:
-
OD 1-65mm (customizeable)
-
Keywords:
-
Wire Stripping Cutting Machine
-
Type:
-
Electrical Appliance Machinery
-
Warranty:
-
1 Year
-
Feature:
-
Stripping Cutting Machine
◼︎
Single blade model: It can cut a surface of the line, manually separate the wire core, or perform another operation.
◼︎
Double blade model: upgraded discharge port with two additional shafts, stronger extrusion pressure, fast wire stripping speed, and large diameter wire stripping holes that can be simultaneously peeled with two blades up and down.
Features:
1. Precision Stripping: The cable stripping machine is equipped with precision blades that ensure the clean and accurate stripping of cable insulation without damaging the conductor within.
2. Versatile Design: Our machine supports a wide range of cable types, including single-core, multi-core, round, flat, and armored cables, making it suitable for various applications.
3. Adjustable Cutting Depth: The cutting depth of the blades can be easily adjusted, allowing for precise control to accommodate different cable sizes and insulation thicknesses.
4. High Stripping Speed: With its efficient motor and innovative design, our cable stripping machine offers high stripping speed, improving productivity and reducing labor costs.
5. Easy Operation: The user-friendly interface and intuitive controls make it simple for operate the machine with minimal training.
6. Durability and Reliability: Constructed with high-quality materials and components, the cable stripping machine is built to withstand heavy-duty usage, providing long-term reliability and stability.
7. Environmental Friendly: Our machine promotes eco-friendly practices by optimizing the recycling process, reducing waste, and minimizing environmental impact.
|
Model
|
FTDM-81
|
FTDM-85
|
FTDM-86
|
||
|
Type
|
Two rolls with 8 knives
|
Four rolls with
|
Four rolls with
|
||
|
Power
|
1.5kw
|
2.2kw
|
3kw
|
||
|
Voltage
|
220v single PH/380v 3PH
|
|
|
||
|
Applicable Scope
|
⌀1mm-⌀30mm
|
⌀1mm-⌀40mm
|
⌀1mm-⌀65mm
|
||
|
Speed
|
30m/min
|
|
|
||
|
Application
|
Peel off plastic skin and metal core wrapped around wires and other materials
|
|
|
||
|
Dimension
|
550*510*840
|
600*580*840
|
680*580*840
|
||
|
Weight
|
60kg
|
90kg
|
110kg
|
||
Adjust according to the thickness of the cable and automatically adjust the depth of the blade pressing down.
Adopting quenching heat treatment, high strength, wear-resistant, and high friction without slipping.
Fast heat dissipation, strong power, low noise, and stable operation.
According to the diameter of the wire, select the appropriate wire entry hole for wire stripping treatment.
