Quick Details
-
Vibrating Amplitude:
-
adjustable
-
Length of Flexible Shaft:
-
Requirement
-
Voltage:
-
220v,380v,415v
-
Weight:
-
250kg
-
Dimension(L*W*H):
-
Customer requirement
-
plate thick:
-
20mm
-
vibrating force:
-
20KN*2
-
material:
-
arbon steel
-
unction:
-
changing the powder to particle
-
vibrating source:
-
vibrating motor
-
Applied field:
-
LFC&concrete
-
color:
-
as your requirement
-
spring:
-
air spring,steel spring or rubber spring
-
motor (sets):
-
2-6
-
service:
-
24hours online service
-
Certification:
-
CE ISO
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GouFeng
-
Frequency:
-
50/60HZ
-
Vibrating Amplitude:
-
adjustable
-
Length of Flexible Shaft:
-
Requirement
-
Voltage:
-
220v,380v,415v
-
Weight:
-
250kg
-
Dimension(L*W*H):
-
Customer requirement
-
plate thick:
-
20mm
-
vibrating force:
-
20KN*2
-
material:
-
arbon steel
-
unction:
-
changing the powder to particle
-
vibrating source:
-
vibrating motor
-
Applied field:
-
LFC&concrete
-
color:
-
as your requirement
-
spring:
-
air spring,steel spring or rubber spring
-
motor (sets):
-
2-6
-
service:
-
24hours online service
-
Certification:
-
CE ISO

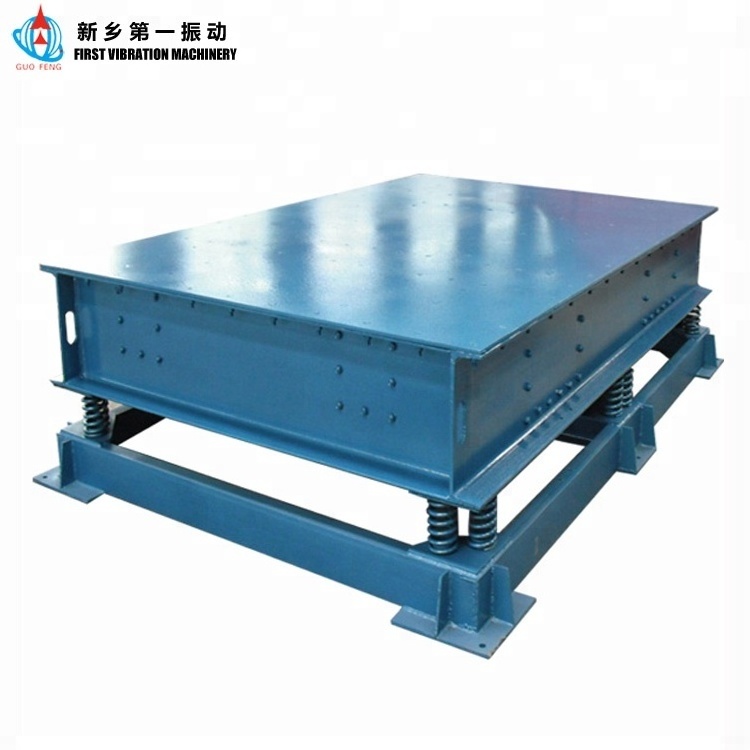

Electric concrete vibrator /concrete mould vibration table price
|
After years of research and development of our company, we have developed various of vibration tables ,they are divided into three types ,two-dimensional vibration automatic control , three-dimensional vibration of self-control , three-dimensional FM shock (for pipeline equipment) . It is suitable for precision casting, Pressure molding. And it is a stable machine with low consumption and low noise. |
| Carbon steel vibrating platform able is mainly composed of four parts.They are bracket, countertops, vibration, shock absorption institutions . Rubber springs and 2~8 vibrating motors are used together to vibrate materials from all directions (up and down, left and right, front and rear),leading to the effect of two or three-dimensional shake) |
| Type | Dimension(mm) | Motors(sets) | Exciting force(KN) | Power(kw) |
| ZP-2 | 500*500 | 2 | 5 | 0.5 |
| ZP-4 | 800*800 | 4 | 20 | 1.6 |
| ZP-6-1 | 1000*1000 | 6 | 30 | 2.4 |
| ZP-6-2 | 1200*1200 | 6 | 30 | 2.4 |
| ZP-8-1 | 1600*1200 | 8 | 40 | 3.2 |
| ZP-8-2 | 1600*1400 | 10 | 40 | 3.2 |
| ZP-10-1 | 2000*1600 | 10 | 50 | 4.0 |
| ZP-10-2 | 2000*1800 | 10 | 60 | 6.0 |
| ZP-12-1 | 3000*2000 | 12 | 80 | 7.5 |
ZP vibrating platform
is widely used in metallurgy, abrasive, food, chemical industry, building material,coal, electricity and so on,used for cast steel, cast iron, bronze, cast aluminum, different structure of various types of castings.
| Standard export containers. Bare main machine, motors and small parts are packed in wooden cases.We can also pack them according to your requirement. |
|
Established in 1999,Xinxiang First Vibration Machinery Factory CO.,LTD owns 9.6 million fixed assets, 26000m2 floor area (which including 12600 m2 production workshop), 68 sets of manufacturing equipment, 110 staffs that includes 42 staffs talent professional in vibrating machine manufacturing industry. Relying on professional level, mature technology and high quality, our company rise rapidly in vibration machinery industry. |
