Quick Details
-
Size:
-
15000X2500X1650
-
Place of Origin:
-
Shandong, China
-
manufactury:
-
Liangshan Juyuan special vehicle manufacturing Co., Ltd
-
Axle:
-
13 Ton Fuwa Brand
-
Suspension:
-
Leaf Spring Suspension
-
Tire:
-
Triangle Brand
-
Function:
-
Transport 20ft 40ft Container
-
OE NO.:
-
Juyuan Trailer
-
Certification:
-
ISO9001, 3C, BV, SGS
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
30-100mm
-
Brand Name:
-
AOTONG
-
Size:
-
15000X2500X1650
-
Place of Origin:
-
Shandong, China
-
manufactury:
-
Liangshan Juyuan special vehicle manufacturing Co., Ltd
-
Axle:
-
13 Ton Fuwa Brand
-
Suspension:
-
Leaf Spring Suspension
-
Tire:
-
Triangle Brand
-
Function:
-
Transport 20ft 40ft Container
-
OE NO.:
-
Juyuan Trailer
-
Certification:
-
ISO9001, 3C, BV, SGS

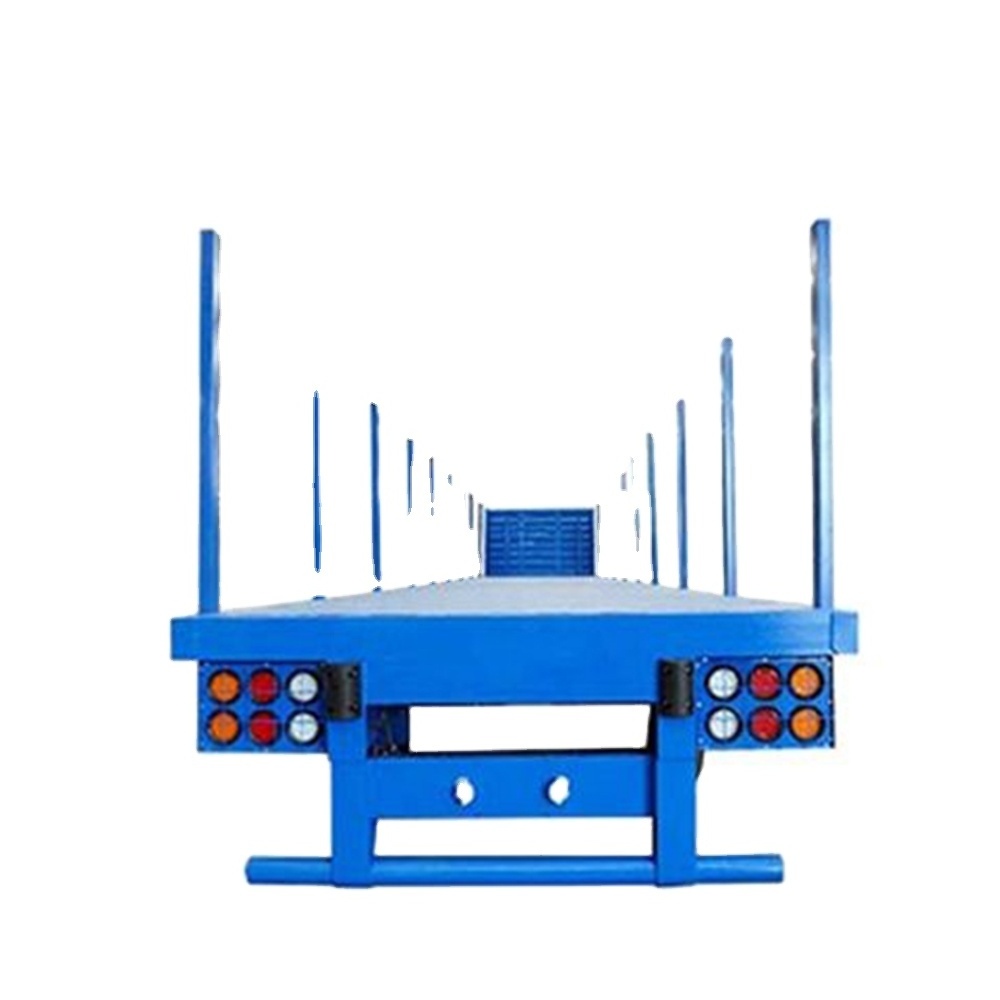

Hot sale Light Weight 40 MT Loading Capacity Timber Log Trailer In Truck Semi Trailer Or 40ft flatbed Semi-trailer for sale
1. Product Name: container semi trailer
2. Outside Dimension: 12450X2450X1550 mm for 40ft container (also we can design 20ft, 45ft,48ft cntainer semi trailer)
3. payload: 20-60 ton
4. material: Q235 and Q345
5. Axle: FUWA brand 13ton
6. tyre: 825R20, 9.00R20, 10.00R20,11.00R20 also can accroding to your request.
more detailed
|
Type: |
3 Axles Container Semi Trailer |
||
|
Model: |
LAT9400XXYDY |
||
|
Dimension: |
|
||
|
|
Size : |
12,500 *2500*1500mm |
|
|
Weight: |
|
||
|
|
Payload: |
40,000kg |
|
|
|
Tare weight: |
Approx. 7,500kg |
|
|
|
G.V.W.R.: |
Approx. 47,500kg |
|
|
Frame & Structure: |
|
||
|
|
Main beam: |
Material Q345B. Fabricated “H” beam height 500mm, Top flange thickness 12mm, Middle web thickness 6mm, Bottom flange thickness 14mm |
|
|
|
Side beam: |
14# channel steel |
|
|
|
Platform: |
2.5mm thick chequer plate with supporting channel |
|
|
|
Cross beam: |
80*40mm square tube |
|
|
|
Kingpin: |
JOST 2”SAE Kingpin, bolted in type |
|
|
|
Twist lock: |
12 sets twist locks |
|
|
|
Welding standard: |
All welding are to be done by qualified welder per applicable national standard |
|
|
|
Painting: |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime r , twice coats of final paint | |
|
Running gear: |
|
||
|
|
Suspension: |
mechanical suspension, leaf spring 13mmx90mm, China |
|
|
|
Axle: |
FUWA 150x150 square beam axle, 3pcs*13 ton capacity, China |
|
|
|
Brake system: |
Dual line pneumatic brake, SAE hose and connector |
|
|
|
Brake chamber: |
4 units T30/30 spring brake chambers, 2 units T30 brake chambers |
|
|
|
Emergency relay valve: |
Wabco relay valve |
|
|
|
Tire: |
Triangle brand, 12R22.5, 12 pcs. China |
|
|
|
Rim: |
9.00*22.5 steel disc wheel, 10 holes ISO, 12 pcs. China |
|
|
|
Landing gear: |
JOST C200 two speed telescopic manual landing gear |
|
1.B y bulk cargo or roro shipment
2. put into containers shippment
