Quick Details
-
Voltage:
-
180V--430V or others
-
Power:
-
1.5KW, 1.5 kW
-
Weight:
-
variable as volume
-
Dimension(L*W*H):
-
variable as volume
-
Product name:
-
The flow-through rotary airlock valve
-
Brand name:
-
CHEEGERS
-
Model name:
-
TGFY--12L
-
Product material:
-
Nodular cast iron/stainless steel/carbon steel
-
Media:
-
Powder or granule
-
Capacity:
-
6.05 T/h--8.64 T/h
-
Rotate speed:
-
<40 R/min
-
Motive power:
-
SEW motor
-
Certification:
-
ISO9001:2008
Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Cheegers
-
Production Capacity:
-
6.05--8.64 T/h
-
Voltage:
-
180V--430V or others
-
Power:
-
1.5KW, 1.5 kW
-
Weight:
-
variable as volume
-
Dimension(L*W*H):
-
variable as volume
-
Product name:
-
The flow-through rotary airlock valve
-
Brand name:
-
CHEEGERS
-
Model name:
-
TGFY--12L
-
Product material:
-
Nodular cast iron/stainless steel/carbon steel
-
Media:
-
Powder or granule
-
Capacity:
-
6.05 T/h--8.64 T/h
-
Rotate speed:
-
<40 R/min
-
Motive power:
-
SEW motor
-
Certification:
-
ISO9001:2008

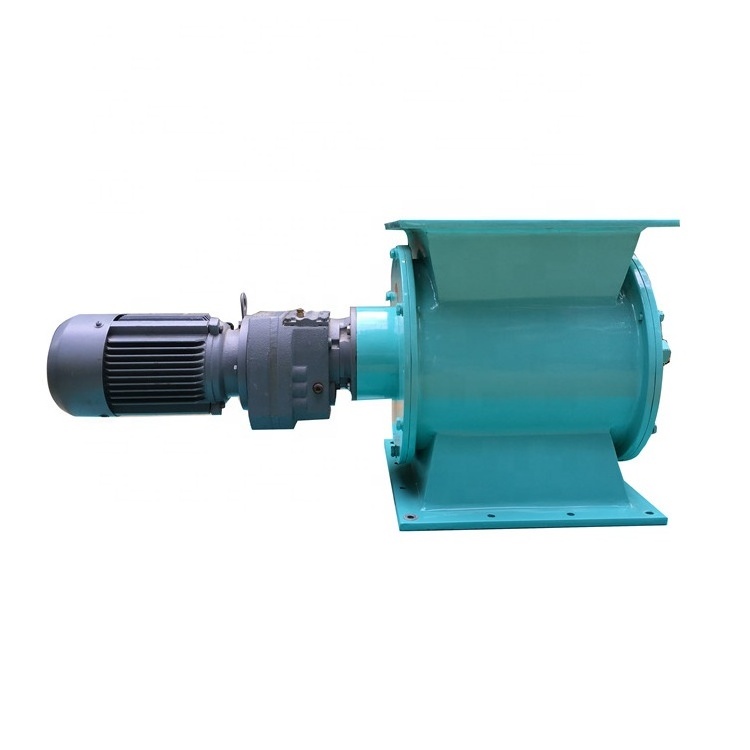

Rotary Air lock Valve
Applications: Silo emptying, cyclone discharging, dust collection systems, etc.
Used as the red circle, material will go through the valve without stopping machine and discharge material from cyclone or silo .
Product Details
1. Rotary airlock valve is for pneumatic conveying and dust removal.
2. Rotary airlock valve is to unload the material from discharger or dust collector
3. Prevent the outside air from entering the discharger or dust collector.
Rotary airlock can handle materials like Flour ,Wooden chips ,Plastic ,Animal feed ,Sugar ,Cement ,Dust , Etc
Product Drawing
|
Type |
External dimension |
Inlet |
Outlet |
Install size |
Shaft |
||||||||||
|
A |
B |
H |
E |
F |
D1 |
D2 |
e |
f |
h |
g |
m |
D |
d |
k |
|
|
TGFY- 5L |
410 |
300 |
435 |
250 |
170 |
222 |
152 |
180 |
150 |
160 |
220 |
130 |
200 |
35 |
50 |
|
TGFY- 7L |
420 |
310 |
435 |
260 |
180 |
250 |
162 |
182 |
160 |
160 |
230 |
140 |
220 |
35 |
50 |
|
TGFY- 9L |
470 |
310 |
435 |
260 |
230 |
270 |
192 |
182 |
210 |
160 |
230 |
190 |
240 |
40 |
50 |
|
TGFY- 12L |
520 |
370 |
530 |
320 |
238 |
288 |
208 |
240 |
218 |
190 |
290 |
200 |
260 |
40 |
50 |
|
TGFY- 16L |
570 |
370 |
530 |
320 |
280 |
330 |
250 |
240 |
260 |
190 |
290 |
240 |
300 |
40 |
50 |
( for more models,please contact me!)
Professional Company
1. CHEEGERS Machinery Manufacture Co., Ltd. is a professional supplier of airlock, rotary valve
2. CHEEGERS is rebuilt in 2003 from the revolution of china government factory CHIQI which built in 1958
3. We have been in airlock for 55 years and are specialized in producing all kinds of Rotary Airlock Valve.
4. At present, our products have been exported to Thailand, Canada, Indian, Morocco, Switzerland, Australia, Africa and others.
5. We have established long-term, stable and good business relationships with many manufacturers (Buhler) and wholesalers around the world.
To get your inquiry , answer the questions :
- What’s the material you convey?
- How many tons/H?
- What is it under cyclone or hopper or silo?
