Quick Details
-
Product name:
-
Mucking Loader
-
Application:
-
Ore
-
Keywords:
-
High Efficiency
-
Type:
-
Diesel Engine Scooptram
-
Color:
-
Customer's Request
-
Usage:
-
Mining Core
-
Name:
-
Eletrolytic Tank
-
Function:
-
Dumping Mining Materials
-
Capacity:
-
1/2/3m3
-
Max Height:
-
3500
Quick Details
-
Weight (KG):
-
80000
-
Place of Origin:
-
jiangsu
-
Brand Name:
-
maxizm
-
Product name:
-
Mucking Loader
-
Application:
-
Ore
-
Keywords:
-
High Efficiency
-
Type:
-
Diesel Engine Scooptram
-
Color:
-
Customer's Request
-
Usage:
-
Mining Core
-
Name:
-
Eletrolytic Tank
-
Function:
-
Dumping Mining Materials
-
Capacity:
-
1/2/3m3
-
Max Height:
-
3500

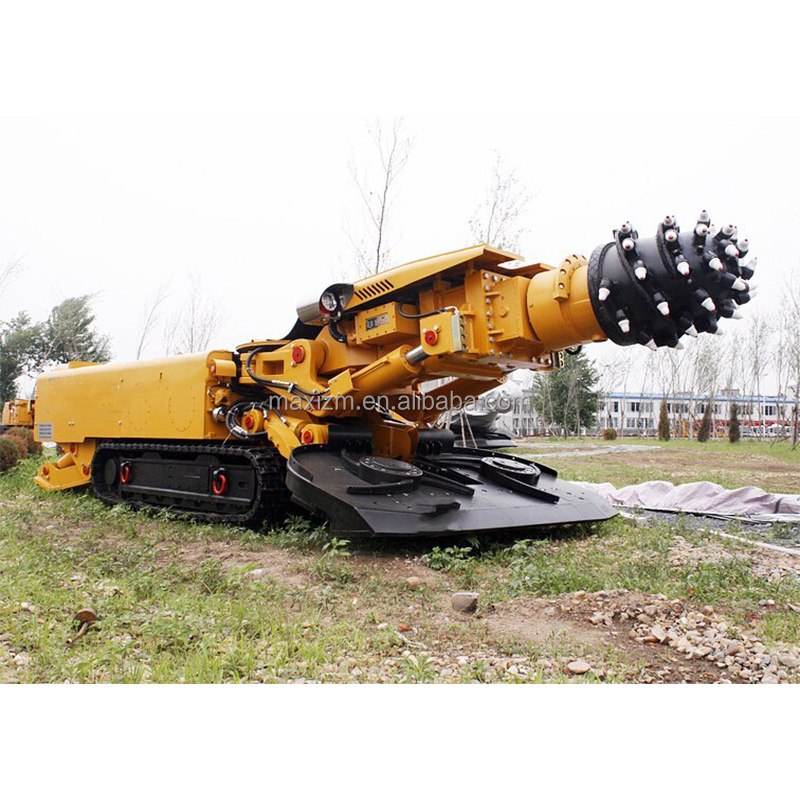

Roadheader tunneling machine EBZ230 with good performance
Contact way
Products Description
EBZ230 roadheader is designed as compact structure, low body, low center of gravity. easy operation, good working performance.1.
Electric control systemEBZ230 roadheader adolts flame proof and intrinsically safe switch box and control box with small size,
light weight, flexible operation, which is safety and reliable: main controller is installed in a closed casing that can
effectively block out electromagnetic interference; working condition is shown with LCD screen, menu mode is used for operating
interface with flexible and safe parameter setting; it is equipped with functions such as overvoltage, motor overload, open-phase,
short circuit, over temperature and earth leakage lockout.2. Hydraulic systemThe hydraulic system of EBZ230 roadheader adopts
transfer case, several pumps control, with main hydraulic components coming from international brands.3. Spraying systemSpraying
system of EBZ230 roadheader include inside and outside spray systems, of which the front is after-pick spraying which is used to
strength outside spraying, the latter is reasonable in design and equipped with leakage detection function.4. First freighter
Straight structure is adopted for first freighter, which can achieve smooth lapping with hauler bed and transportation.5.
Traveling mechanismThe traveling mechanism is a high integration of internationally advanced motor and reducer, whose big output
torque can adapt to operations with large dip angle. If there is limit for weight or total weight during transportation, it can be
disassembled for transportation.
Performance Parameters
|
Item
|
Unit
|
Parameter
|
|
Overall dimension
|
|
|
|
Overall weight
|
t
|
80
|
|
length
|
mm
|
11470
|
|
Width
|
|
|
|
Shovel plate
|
mm
|
3200
|
|
Main body
|
mm
|
2700
|
|
Height
|
|
|
|
Cutting head is laid horizontally on the highest point
|
mm
|
2345
|
|
Main body
|
mm
|
1940
|
|
Undercut depth
|
mm
|
225
|
|
Ground clearance of machine
|
mm
|
220
|
|
Range of positioning cutting
|
|
|
|
Height
|
mm
|
4800
|
|
Width
|
mm
|
6040
|
|
Area
|
m^2
|
29
|
|
gantry height
|
mm
|
400
|
|
Grade ability
|
°
|
±18
|
|
Travelling speed
|
m/min
|
7
|
|
Ground pressure
|
MPa
|
0.15
|
|
Gross power
|
kW
|
377
|
|
Power of Cutting motor
|
kW
|
230/150
|
|
Power of electric pump motor
|
kW
|
132
|
|
Input voltage
|
V
|
AC1140
|
|
Input frequency
|
Hz
|
50
|
|
Rotation speed of cutting head
|
r/min
|
46/23
|
|
Stretch
|
mm
|
/
|
|
Loading capacity
|
|
|
|
Star wheel type
|
m³/min
|
4.3
|
|
Crawler width
|
mm
|
650
|
|
Out. width of crawlers
|
mm
|
2700
|
|
Tensioning style
|
/
|
Cylinder tensionning and snap-gauge locking
|
|
Water pressure of spraying
|
|
|
|
Water pressure of outside spraying
|
MPa
|
≥4
|
|
Water pressure of inside spraying
|
MPa
|
≥2
|
|
Max. non-removable parts size
|
m
|
3.68×1.39×1.48
|
|
Max. non-removable parts mass
|
kg
|
8500
|
