Quick Details
-
Weight:
-
22KG
-
Product name:
-
UPS Power Supply
-
Color:
-
Black Ups System
-
Dimensions:
-
40*75*101mm
-
Wave Form:
-
Pure Sine wave
-
Temperature range:
-
-10~40oC
-
Waveform:
-
Pure Sine Wave
-
Output Frequency:
-
50/60Hz±5%
-
Standards Communication:
-
RS232, Network monitoring card, dry contact, MODBUS monitoring card
Quick Details
-
Place of Origin:
-
GUA
-
Brand Name:
-
WTHD
-
Model Number:
-
WTHD-U11-C1KR
-
Weight:
-
22KG
-
Product name:
-
UPS Power Supply
-
Color:
-
Black Ups System
-
Dimensions:
-
40*75*101mm
-
Wave Form:
-
Pure Sine wave
-
Temperature range:
-
-10~40oC
-
Waveform:
-
Pure Sine Wave
-
Output Frequency:
-
50/60Hz±5%
-
Standards Communication:
-
RS232, Network monitoring card, dry contact, MODBUS monitoring card

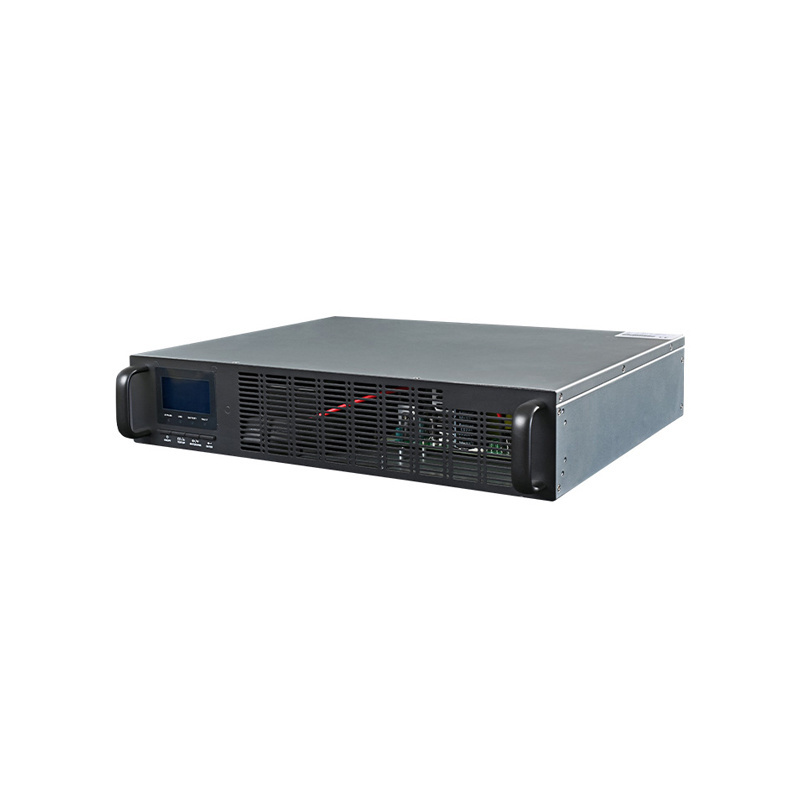

WTHD High Frequency
Online UPS
Single phase input and single phase output 1KW 2KW 3KW
Technical Parameters
Feature：
Zero Transfer time
True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues.
DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with
perfectsine wave AC power supply Ultra Wide Input Mains range Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 60V~145V, 40~70Hz,dramatically reduce battery discharge , prolong battery life
Best Loading Capability Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application .
High Input power factor
Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion.
Open to customization
Based on powerful controller and open architecture, the product is able to be customized to match need of integration of
automatic system or intelligent supervisory system.
Zero Transfer time
True Double Conversion Online UPS, Provide most comprehensive protect mission critical equipment from wide range power quality issues.
DSP Digital Control Based
Advance DSP base digital control bring high performance of high input Power factor, low distortion , supply the load with
perfectsine wave AC power supply Ultra Wide Input Mains range Strong compatible with ultra with electric environment, stay well with ultra wide range mains of 60V~145V, 40~70Hz,dramatically reduce battery discharge , prolong battery life
Best Loading Capability Up to 0.9 Output Power Factor , 50/60 Hz Automatically adapting, selectable voltage , perfectly match all kind of application .
Genset Compatible
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.
Capable of work with wide range of Genset, isolate fluctuation and noise from Genset , provide stable and clean power supply to the user equipment.
High Input power factor
Thanks to digital controlled PFC Technology, >0.99 input power factor, effectively avoid power pollution , save energy expense for customer
Reliable design
Made with strong Glass fiber base (FR4) double side PCB, company with large span component, greatly improve reliability in harsh environment, Well designed ventilation and conformal coating , avoid dust accumulation ,improve resistant to corrosion.
Open to customization
Based on powerful controller and open architecture, the product is able to be customized to match need of integration of
automatic system or intelligent supervisory system.
|
DATASHEET
|
|
|
|
|
|
|
|
|||||||
|
Model
|
|
WTHD-U11-C1KR
|
|
WTHD-U11-C2KR
|
|
WTHD-U11-C3KR
|
|
|||||||
|
Rated power
|
VA/W
|
1kVA/800W
|
|
2kVA/1.6kW
|
|
3kVA/2.4kW
|
|
|||||||
|
Topology
|
|
Double Conversion Online UPS
|
|
|
|
|
|
|||||||
|
Phase
|
|
Single Phase Input Single Phase Output
|
|
|
|
|
|
|||||||
|
AC
Mains
Input
|
Wiring
|
1 Phase 3 Wires(L/N+PE)
|
|
|
|
|
|
|||||||
|
|
Rated Voltage
|
110/220V AC
|
|
|
|
|
|
|||||||
|
|
Frequency Range
|
40Hz-70Hz
|
|
|
|
|
|
|||||||
|
|
Input Power Factor
|
≥0.99 |
|
|
|
|
|
|||||||
|
AC Output
|
Wiring
|
1 Phase , L/N+PE
|
|
|
|
|
|
|||||||
|
|
Output Voltage
|
110/220V AC
|
|
|
|
|
|
|||||||
|
|
Waveform
|
Pure Sine Wave
|
|
|
|
|
|
|||||||
|
|
Distortion
(THDV%) |
<2%(Linear Load)
|
|
|
|
|
|
|||||||
|
|
|
<7%(None-Linear Load)
|
|
|
|
|
|
|||||||
|
|
Over load
capability |
1Min@105%~125%Rated Load
30Sec.@125%~150%Rated Load 0.5Sec.@>150%Rated Load |
|
|
|
|
|
|||||||
|
Efficiency
|
AC/AC Mode
|
89%
|
|
|
|
|
|
|||||||
|
|
DC/AC Mode
|
87%
|
|
|
|
|
|
|||||||
|
HMI
|
LCD DISPLAY
|
Input Mains Voltage, Frequency, Load level, Operation Mode, Health Status
|
|
|
|
|
|
|||||||
|
|
Standards
Communication Interface |
1. RS232 PORT
|
|
|
|
|
|
|||||||
|
|
Optional Extension Card
|
2. NMC Card: Support remote monitor the UPS via Smart Phone APP, Web page, PC Monitor Software , Support Server / NAS shutdown
3. CMC MODBUS Card, 4. USB Card Relay Card (Needs assembly according to order request before shipping) |
|
|
|
|
|
|||||||
|
Operating Environment
Endurance
|
Temperature range
|
-10~50oC
|
|
|
|
|
|
|||||||
|
|
Relative Humidity
|
0-98%（Non-condensing）
|
|
|
|
|
|
|||||||
|
|
Acoustics Noise
|
<55dB @ 1 meters
|
|
|
|
|
|
|||||||
Product Features
Advanced design
More intelligent
Flexible power supply mode
Comprehensive protection measures
Strong environmental adaptability
Flexible monitoring mode
Application field
Industrial application protection
Transportation, electricity, medical care, venues, etc.
Small data room
Communication network management center
Office automation
Experimental instruments and equipment
Our core products includes UPS, remote supply power and solar power inverter, with international product qualifications like ISO, CE, FCC and Tell, mainly applying in industry application protection, communication network center, data center, big-scale energy storage, family energy storage and so on. In addition, we also offer OEM and ODM service with competitive and fast product research and development speed.
