Quick Details
-
Brand Name:
-
Yongxing
-
Model Number:
-
KW15
-
Max. Current:
-
16A
-
Operating Temperature:
-
-25~+125
-
Protection Level:
-
IP40
-
Product name:
-
250v ac micro switch t105 5e4 micro switch dg4 t85
-
Color:
-
Black , Gray
-
Certification:
-
CQC CE ENEC
-
Current:
-
3A~16A
-
Contact Resistance:
-
≤50mΩ
-
Insulation Resistance:
-
≥100mΩ
-
dielectronic strength:
-
1,500V
-
electronic life(cycles):
-
50,000
-
operating temperature:
-
-25℃~+125℃
-
IP:
-
IP40 , IP65
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250VA
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Yongxing
-
Model Number:
-
KW15
-
Max. Current:
-
16A
-
Operating Temperature:
-
-25~+125
-
Protection Level:
-
IP40
-
Product name:
-
250v ac micro switch t105 5e4 micro switch dg4 t85
-
Color:
-
Black , Gray
-
Certification:
-
CQC CE ENEC
-
Current:
-
3A~16A
-
Contact Resistance:
-
≤50mΩ
-
Insulation Resistance:
-
≥100mΩ
-
dielectronic strength:
-
1,500V
-
electronic life(cycles):
-
50,000
-
operating temperature:
-
-25℃~+125℃
-
IP:
-
IP40 , IP65

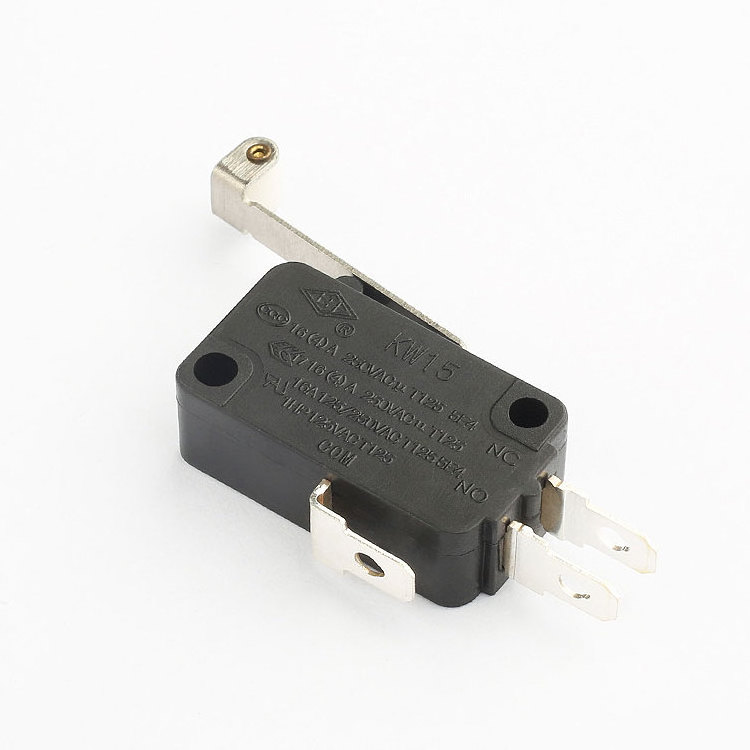

Wholesale switch factory KW15 SPDT mini roll lever flexible micro switch
Product Description
If you have enough quantity, we can
customize the micro switch
to meet your requirements. Our company has independent plant, injection workshop and advanced experimental equipment. It has more than 60 senior engineers, and all workshops have reached 5S and 5m management standards.
