Quick Details
-
Optical Resolution:
-
/
-
Scan Speed:
-
One Second
-
Brand Name:
-
QS
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
smart phone barcode scanner
-
Fetures:
-
3G, WIFI, NFC,GPS, blue tooth, camera, thermal printer,barcode scanner
-
Touch screen:
-
4 inch
-
Blue tooth:
-
BT 4.0
-
Network:
-
3G(WCDMA UMTS900/2100 and GMS
-
Camera:
-
8MP
-
PSAM:
-
PSAM card slot
-
RFID:
-
13.56Mhz
-
OS:
-
Android 6.0
-
Warranty:
-
1 Year
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Max Paper Size:
-
Scanning Width: 54mm
-
Optical Resolution:
-
/
-
Scan Speed:
-
One Second
-
Brand Name:
-
QS
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
smart phone barcode scanner
-
Fetures:
-
3G, WIFI, NFC,GPS, blue tooth, camera, thermal printer,barcode scanner
-
Touch screen:
-
4 inch
-
Blue tooth:
-
BT 4.0
-
Network:
-
3G(WCDMA UMTS900/2100 and GMS
-
Camera:
-
8MP
-
PSAM:
-
PSAM card slot
-
RFID:
-
13.56Mhz
-
OS:
-
Android 6.0
-
Warranty:
-
1 Year

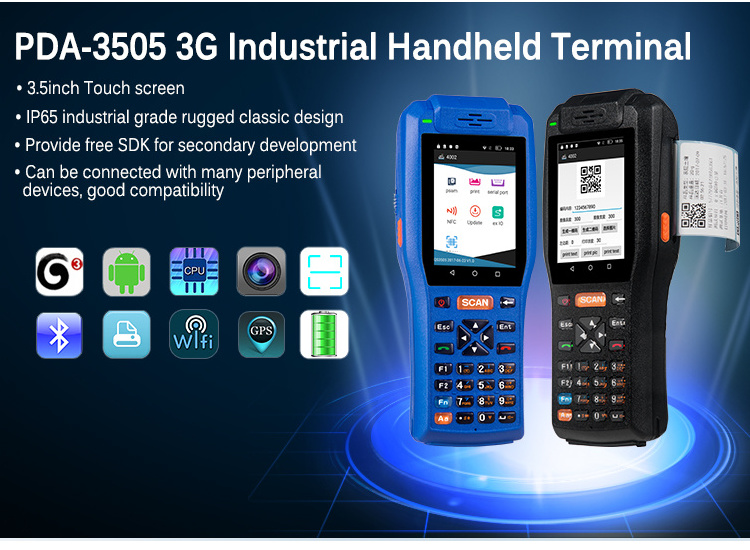

Android 6.0 OS portable industrial pda wireless terminal smart phone barcode scanner

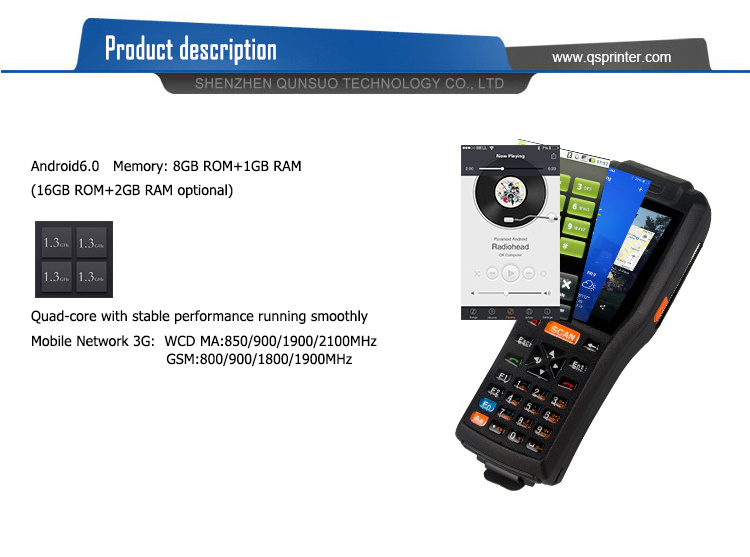

Product Features smart phone barcode scanner
1.Android 6.0 device with 3G,wifi ,NFC,GPS,blue tooth ,camera,58mm thermal printer (1D laser /2D imager barcode scanner optional)
2.IP65 industrial grade rugged classic design
3.With large capacity battery(3400 Mah)
4.Can be connected with many peripheral devices,good compatibility.
5.Provide free SDK for secondary development
Applications files smart phone barcode scanner
Supermarket cashless payment, inventory management,logistics tracking, mobile communications, business data management, service and other fields
| PDA3505 Specifications | smart phone barcode scanner |
| Mechanical | |
| Demensions | 220*85*59mm |
| Weight | 570g |
| System Architecture | |
| Processor | 28nm ARM7 Quad-core cortex A53 @1.3GHz |
| RAM/Memory | 2GB |
| Storage | 16GB |
| Display |
4 inch 480*320 With Industrial touch panel |
| Keypad | 29 physical Keyboards |
| Camera | Rear AF 8.0M |
| Battery | Recharge 7.4v 3400mAh |
| Interface | Micro SIM*1/PSAM*2/TF card *1/RS232*1 |
| Extended | Fingerprint/IC chip card |
| O.S Platform | android 6.0 |
| Printer | 58mm thermal printer 60mm/sec |
| Communicate (4G network for optional) | |
| Mobile netowrk(3G) | GSM 850/900/1800/1900MHz |
| UTMS 850/2100Mhz | |
| Wi-Fi | IEEE 802.11 b/g/n |
| Blue tooth | BLE4.0 |
| GPS | Integrated GPS and AGPS |
| NFC | standard ISO 14443A/B |
| Working status | |
| Battery status | LED light |
| Data Collection | |
| Barcode engine | Laser : Symbol Se955 |
| 2D scanner | CCD engine: support LCD scanner |
|
PDF417/ MicroPDF417/ Composite/ TLC-39
Datamatrix/ QR/ code/ Micro/ QR/ code,etc |
|
| Environmental | |
| Operating Temperature | -10° to 50°C (14° to 122°F) |
| Storage Temperature | -20° to 70°C (-13° to 158°F) |
| Environmental Sealing | Independently certified IP65 standards |
| Certificate | |
| Certificate |
CE,Rohs,IP65 certificates |
