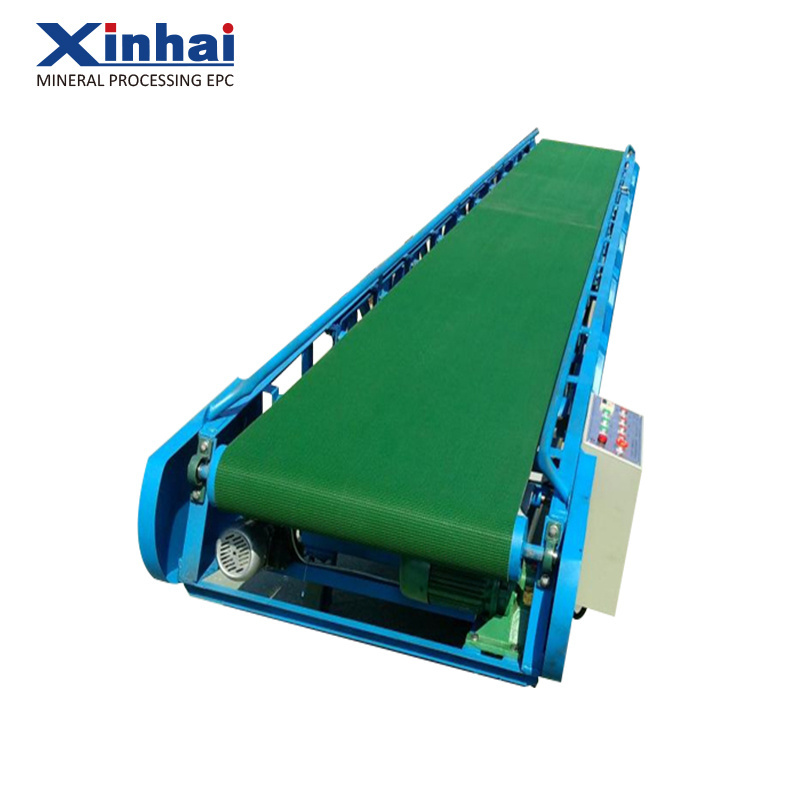

[Introduction]:A general stationary belt conveyor.
[ Capacity ]:78-2995 t/h
[Improvement]:Equipped backstop device Selections of electric drum, electric drum with external motor or electric reducer according to the working condition
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
xinhai
-
Voltage:
-
1000v
-
Dimension(L*W*H):
-
1210*960*850
-
Marketing Type:
-
New Product
-
Weight (KG):
-
200 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts
-
Application:
-
Mining
-
Keyword:
-
Low Cost Screw Conveyor
-
Color:
-
Costomized
-
Belt material:
-
POM
-
Feature:
-
Simple Operation
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
None
-
Certification:
-
ISO:9001
Quick Details
-
Power:
-
5.5kw
-
Warranty:
-
1 Year
-
Width or Diameter:
-
800mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
xinhai
-
Voltage:
-
1000v
-
Dimension(L*W*H):
-
1210*960*850
-
Marketing Type:
-
New Product
-
Weight (KG):
-
200 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts
-
Application:
-
Mining
-
Keyword:
-
Low Cost Screw Conveyor
-
Color:
-
Costomized
-
Belt material:
-
POM
-
Feature:
-
Simple Operation
-
After Warranty Service:
-
Spare parts
-
Local Service Location:
-
None
-
Certification:
-
ISO:9001
Product Description
Our belt conveyor has been sold to all over the world.You can give us your requirement,then we will give you a perfect project.What's more,We are a professional manufacturer of belt conveyor systems. This series of belt conveyor have the characteristics of simple structure, reliable operation and economical operation, and are welcomed by old and new customers.
Advantages
Rubber or plastic bands with oil resistance, acid and alkali resistance are adopted for materials with special properties. The head of conveyor belt with vulcanized linkage prolongs the service life greatly. Stable conveying, no relative movement between materials and conveyer belt Large capacity, simple structure, convenient maintenance, low operation cost and wide application.
Product Structure
Belt conveyor is mainly composed of two end rollers and the closed belt which tightly set on it. The one driving the conveyor belt is named as the driving roller; the other one only used for changing the motion direction of the conveyor belt is named as the bend roller. The driving roller is drived by the motor through the reducer while the conveyor belt is dragged by the friction between the driving roller and the conveyor belt. The driving roller is generally installed on the discharging side to increase the traction and convenience to drug.
Technical Parameters
|
|
Belt Width B (mm)
|
|
|
|
|
|
|
||||||
|
Carrying Idler Type
|
Belt Speed (m/s)
|
500
|
650
|
800
|
1000
|
1200
|
1400
|
||||||
|
|
Conveying Capacity Q (t/h)
|
|
|
|
|
|
|
||||||
|
|
0.8
|
78
|
131
|
---
|
---
|
---
|
---
|
||||||
|
|
1
|
97
|
164
|
278
|
435
|
655
|
891
|
||||||
|
|
1.25
|
122
|
206
|
348
|
544
|
819
|
1115
|
||||||
|
|
1.6
|
156
|
264
|
445
|
696
|
1048
|
1427
|
||||||
|
|
2
|
191
|
323
|
546
|
853
|
1284
|
1748
|
||||||
|
|
2.5
|
232
|
391
|
661
|
1033
|
1556
|
2118
|
||||||
|
|
3.15
|
|
|
824
|
1233
|
1858
|
2528
|
||||||
|
|
4
|
|
|
|
|
2202
|
2995
|
||||||
Successful case
In a copper concentrator in northeast of China, the machines among different stages are far apart, the material composition of different stages is also different, through on-the-spot investigation, Xinhai specially added wear-resisting rubber that is researched and developed independently by Xinhai for the belt conveyor, which can convey spare parts with 500-2500 kg/m3 loose density and finished products, carry high temperature materials with 120˚, transport acid-base and oily material
