Quick Details

Model Number:: Keyway Broach

Product Name:: Keyway Broaching Tool

Material:: HSS

Hardness:: 63-65 HRC

Usage:: Broaching Hole

COLOR:: Silver

Length of Cut(mm):: 6-150 mm

Application:: bordering and groove processing

Packing:: Customized Standard

Quick Details

Type:: Keyway Broach

Place of Origin:: Henan, China

Brand Name:: RZ

Model Number:: Keyway Broach

Product Name:: Keyway Broaching Tool

Material:: HSS

Hardness:: 63-65 HRC

Usage:: Broaching Hole

COLOR:: Silver

Length of Cut(mm):: 6-150 mm

Application:: bordering and groove processing

Packing:: Customized Standard

Products Description

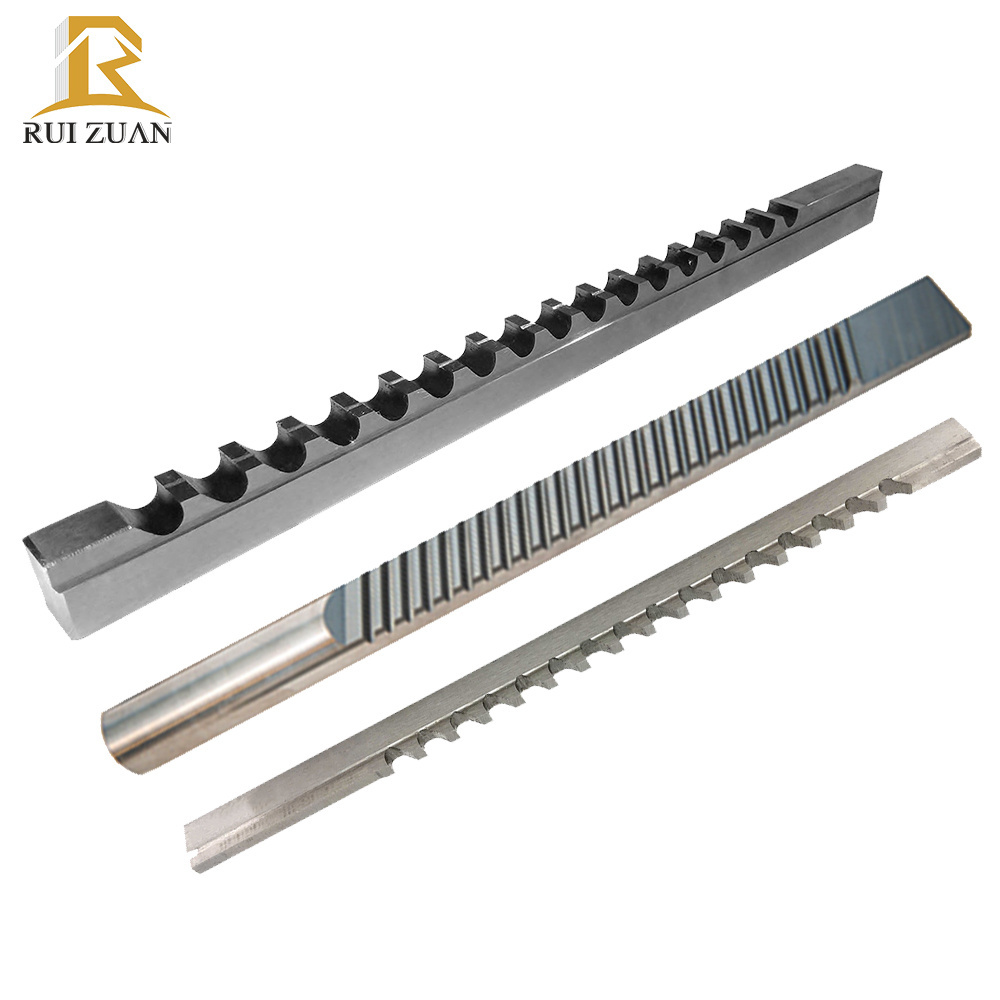

Keyway Broaching Tool

Keyway broaches are essential tools used in machining and shaping operations. They are specifically designed to create
keyways,which are grooves or slots that allow keys or other mating parts to fit into a shaft, hub, or other mechanical component.
These broaches are commonly used in industries such as automotive, aerospace, manufacturing, and construction.
Keyway broaches come in various shapes, sizes, and styles to fit different applications. The most common types include standard
broaches, push type broaches, and pull type broaches. Each type has its own unique design and methodology for removing material
and creating keyways.

BROACH SIZE	SIZE IN MM	TOLERANCE	BROACH TOTAL LENGHT	KEYWAY DEPTH	SHIMS	NO.OF CUTS	LENGHT OF CUT IN STEEL 50 (min and max)	MAX PRESSURE
1/16”-A	1,5875 mm	0	127 mm	0.70 mm	-	1	6-30 mm	176 kg
3/32”-A	2,3813 mm	0.047244094	127 mm	0.90 mm	-	1	6-30 mm	353 kg
1/8”-A	3,175 mm	0.200787402	127 mm	1.30 mm	1	2	6-30 mm	294 kg
3/32”-B	2,3813 mm	0.047244094	172 mm	0.90 mm	-	1	8-42 mm	421 kg
1/8”-B	3,175 mm	0.200787402	172 mm	1.30 mm	1	2	8-42 mm	326 kg
5/32”-B	3,9688 mm	0.149606299	172 mm	1.70 mm	1	2	8-42 mm	598 kg
3/16”-B	4,7625 mm	0.0051/ +0.0254	172 mm	2.00 mm	1	2	8-42 mm	843 kg
3/16”-C	4,7625 mm	0.0051/ +0.0254	299 mm	2.00 mm	1	2	10-64 mm	698 kg
¼”-C	6,35 mm	0.0051/ +0.0254	299 mm	2.80 mm	1	2	10-64 mm	1143 kg
5/16”-C	7,9375 mm	0.0051/ +0.0254	299 mm	3.50 mm	1	2	10-64 mm	1796 kg
3/8”-C	9,525 mm	0.5	299 mm	4.10 mm	2	3	10-64 mm	1968 kg
5/16”-D	7,9375 mm	0.200787402	353 mm	3.50 mm	1	2	25-150 mm	3628 kg
3/8”-D	9,525 mm	0.5	353 mm	4.10 mm	2	3	25-150 mm	3175 kg
7/16”-D	11,1125 mm	0.5	353 mm	4.70 mm	2	3	25-150 mm	4263 Kg
½”-D	12,7 mm	0.598425197	353 mm	5.40 mm	3	4	25-150 mm	4445 kg
9/16”-D	14,2875 mm	0.598425197	353 mm	6,10 mm	4	5	25-150 mm	4036 kg
5/8”-E	15,875 mm	0.5	394 mm	6.80 mm	4	5	25-150 mm	4354 kg
¾”-E	19,05 mm	0.6	394 mm	8.10 mm	5	6	25-150 mm/p>	5397 kg
7/8”-F	22,225 mm	0.6	515 mm	9.60 mm	6	7	25-150 mm	4445 kg
1”-F	25,400 mm	0.6	515 mm	10.90 mm	7	8	25-150 mm	5034 kg

Product Features

Using a keyway broach provides several advantages. It allows for precise and accurate keyway creation, ensuring a proper fit between mating parts. It also eliminates the need for secondary machining operations, saving time and reducing costs.

Additionally, keyway broaches are versatile and can be used on a wide range of materials, including metals, plastics, and composites. When working with keyway broaches, it is important to follow proper safety procedures, such as wearing protective eyewear and gloves. Regular maintenance and sharpening of the broaches are also essential to ensure optimal performance and longevity.
