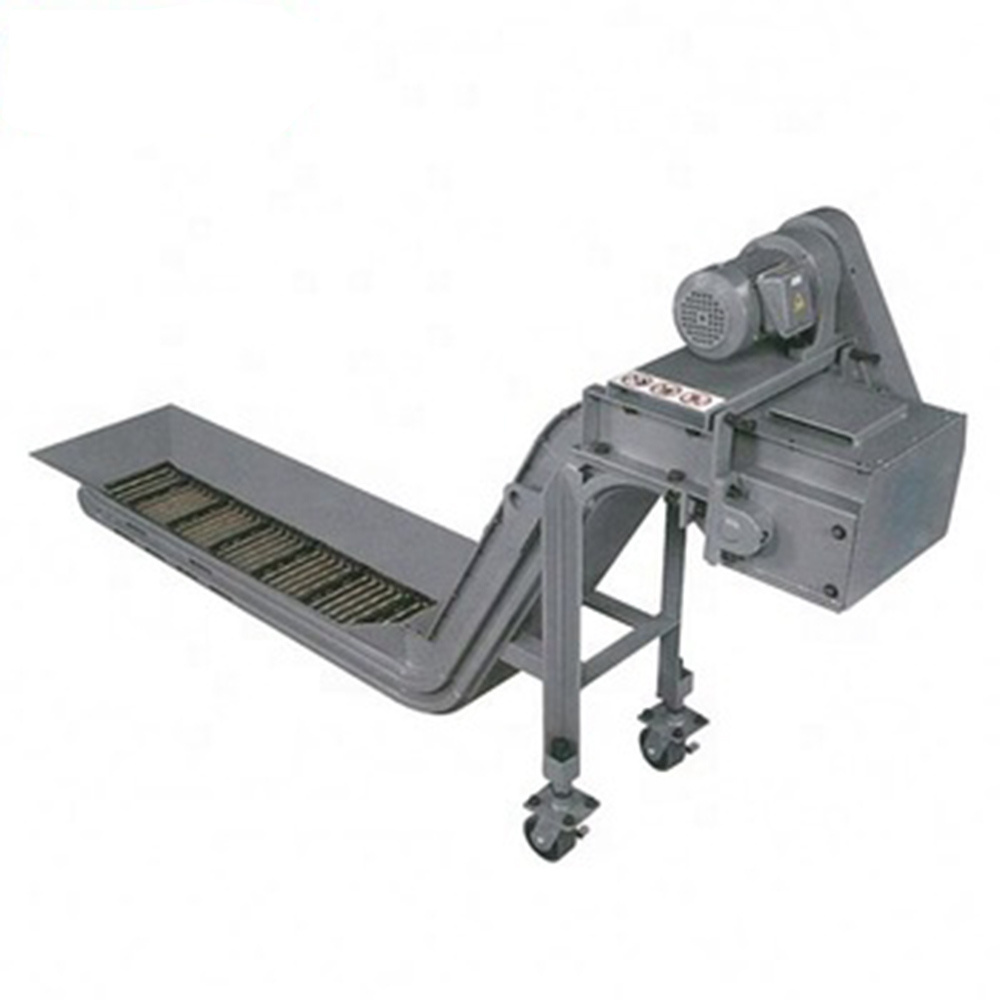

High quality gray color cnc chip conveyor chain machine
High quality gray color cnc chip conveyor chain machine
High quality gray color cnc chip conveyor chain machine
High quality gray color cnc chip conveyor chain machine
High quality gray color cnc chip conveyor chain machine
High quality gray color cnc chip conveyor chain machine
High quality gray color cnc chip conveyor chain machine
High quality gray color cnc chip conveyor chain machine

High quality gray color cnc chip conveyor chain machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $800
≥5 Sets
US $750
≥10 Sets
US $700
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
JINAO
Voltage:
220V 380V
Dimension(L*W*H):
200*80*200CM
Certification:
ISO9001,CE
Product name:
customized cnc chip conveyor
Keyword:
cnc chip conveyor
Application:
Transportation
Belt material:
Metal
Color:
Customers' Request
Frame Material:
SUS304/Carbon Steel
Belt Types:
Flat Steel Belts
Function:
Transferring Material
Size:
Accept Customized Sizes

Quick Details

Power:
1.5KW
Warranty:
1 Year
Place of Origin:
Hebei, China
Brand Name:
JINAO
Voltage:
220V 380V
Dimension(L*W*H):
200*80*200CM
Certification:
ISO9001,CE
Product name:
customized cnc chip conveyor
Keyword:
cnc chip conveyor
Application:
Transportation
Belt material:
Metal
Color:
Customers' Request
Frame Material:
SUS304/Carbon Steel
Belt Types:
Flat Steel Belts
Function:
Transferring Material
Size:
Accept Customized Sizes
Product Description

Chip Conveyor
Widely used in various types of machining centers and flexible production lines and other highly automated machine tools, can be used as stamping, cold pier machine tool small parts conveyor.

It is also the main chip removal function component of the combined machine coolant processing system. It plays the role of improving the operating environment, reducing labor intensity, and increasing the degree of automation of the whole machine.
Pitch Specifications
31.75mm pitch steel conveyor belt (chip conveyor chain plate) single row ultimate tensile load 22KN, suitable for small machinery or short distance transportation.
The single-row ultimate tensile load of 32KN (38.1mm) chip conveyor chain (steel conveyor belt) is suitable for short-distance transportation.
50.8mm pitch steel conveyor belt single row ultimate tensile load 58KN, high mechanical strength, suitable for large and medium-sized machinery and long-distance transmission.
101.6mm pitch steel conveyor belt single row ultimate tensile load 226.8KN, high mechanical strength, suitable for large and medium-sized machinery and long-distance transmission.
Size Information
Number
Chain pitch
Chain width
Scrap length
Scrap height
Chain center distance
Inner section width
Baffle height
Roller diameter
Through shaft diameter
1
31.75
100.150.200.250.300.350.400
Width-50
30
Width+18
9.45
19
19.05
5
2
38.1
100.150.200.250.300.350.400.450.500


Width+23
12.57
20
22.23
8
3
50.8
150.200.250.300.350.400.450.500.550.600


Width+29
15.75
25
28.58
10
4
63.5
200.250.300.350.400.450.500.550.600.700.800


Width+35
18.90
35
39.67
12
5
100
200.250.300.350.400.450.500.550.600.700.800.900.1000


Width+50
31.75
50
57.15
14
