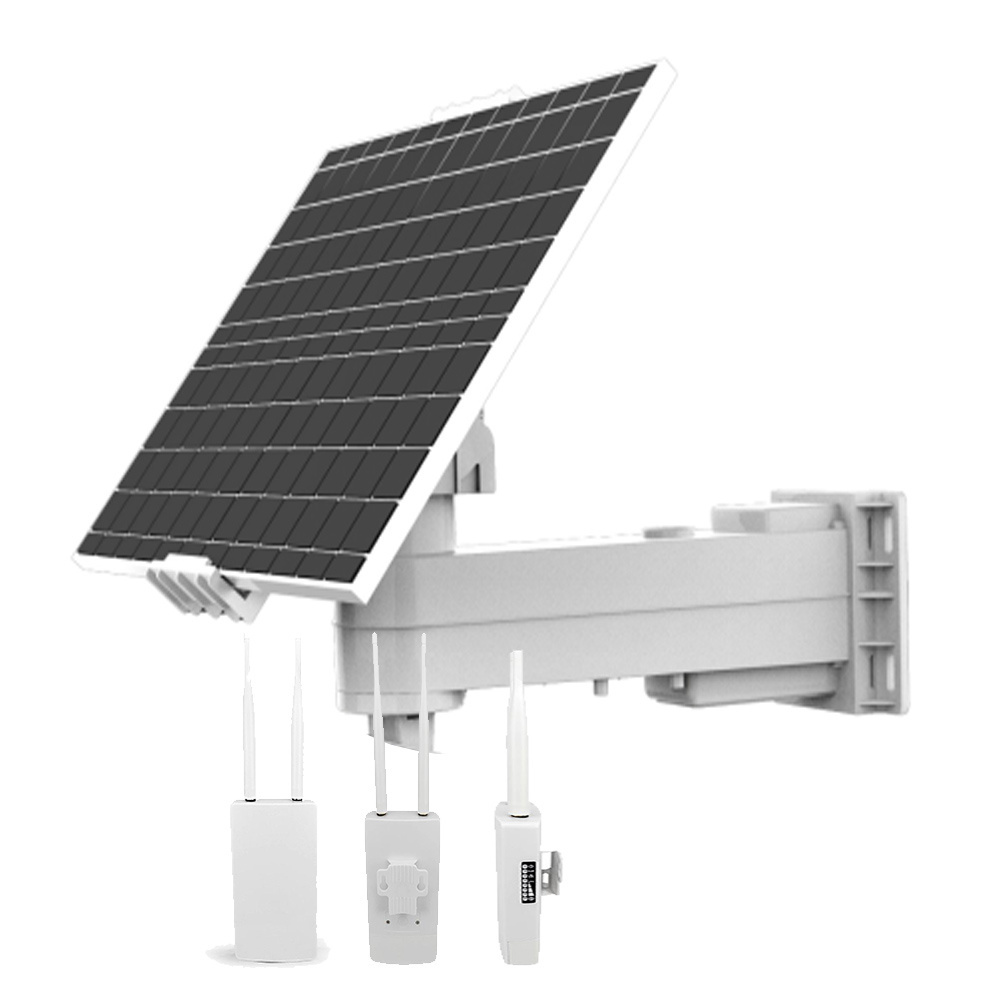

Outdoor 4G LTE CPE Solar 4G Router 30W Solar panel kit with waterproof 4G router Ethernet port output with SIM card slot

Appearance

Dimension (L × W × H)

155*85*28mm

Weight

180g

Hardware Platform

HW_VER

CPF905－V1.0

MTK Chipset

MT6735WM

Memory

4GByte EMMC+512MByte DDR2

Band

FDD operating band B1,B3,B5,B7,B8,B20

TDD operating band B38,B39,B40,B41

WCDMA:B1,B5 ,B8

EVDO BC0

GSM:900/1800MhZ

Diversity Band

FDD operating band B1,B3,B5,B7,B8,B20

TDD operating band B38,B39,B40,B41

WCDMA:B1,B5 ,B8

EVDO BC0

Optional BAND

3GPP

3GPP R9 Cat.4

3GPP R9 Cat.4

3GPP R7&R8 HSDPA Cat.24(64QAM) HSUPA Cat.7(16QAM)

3GPP2

NA

Transfer rate

up to 150Mbps DL up to 50Mbps UL

up to 150Mbps DL up to 50Mbps UL

HSDPA up to 42.2Mbps DL HSUPA up to 11.5Mbps UL

3.1Mbps DL

NA

Wi-Fi Chipset

MT6625L

Wi-Fi

IEEE 802.11b/g/n

Wi-Fi Transfer rate

UP to 150Mbps

Encryption

Wi-Fi Protected Access™ (WPA/WPA2)2

Antenna

External antenna *2 1*WIFI 1*LTE

SoftSIM

esim or softsim

ODM

Intelligent system,strong ODM ability

LED

LED indication

Appearance

SIM

2FF SIM

USB

USB TYPE A (5V 1A IN)

DC

12V 1A IN

RJ45

1* WAN/LAN

Internet

Wi-Fi

Wi-Fi AP，max.10 users

WIFI SSID

4G-CPE-XXXX（IMEI last 4 digits）

WIFI password

1234567890

Working environment

Working temperature

-20° - 75°C

Working height

up to 3000 M (10,000 inches)

Operation system

PC Users: A PC with Windows XP (SP3), Windows Vista (SP1), Windows 7,or Windows 8 WIN10

MAC Users: A Mac with OS X v10.5.7,OS X Lion v10.7.3 or later

IPAD Uers: An iPhone, iPad, or iPod touch with iOS 5 or later

Android Uers: An mobile Phone or Tablet PC with Android 2.3 or later

Operation Browser

Internet Explorer 8.0 ,Mozilla Firefox 40.0 ,Google Chrome 40.0 ,Safari

Software Platform

System

Android 6.0

WEB

Gateway

http://192.168.199.1

Login

Default(user&pasword)：admin

Status

Network connection status; ANP information; IP information; Signal strength; Connection time; Number of WiFi client connections

Networks

APN configuration: international roaming switch, APN, user name, password, authorization type modification; Add a new APN and
restore the default APN parameters; Pin code &puk code input; Flow statistics: flow speed limit: limit the speed according to the
set rate after the cumulative flow reaches the set value

Wifi

WLAN configuration: modify SSID, encryption method and encryption password. Set the maximum number of connections

WiFi connection list: view the list of terminals connected to the device, and view the MAC address, IP address and host name; You
can choose to disable Internet access and resume Internet access

Ethernet mode

Dynamic /ppoe/lan

System Manage

Login password management: user name and password modification are supported. System operation: device restart and shutdown are
supported, Restore the system information of factory settings: check the software version, MAC address of WLAN, IMEI date time
zone setting: set the time update method of the device: network time or GPS time. Default network time zone: automatically update
the time zone, Custom time zone phonebook settings: add, modify, find, and delete contacts

SMS Management

SMS read, delete, send

OTHER

SIM card lock

SIM card locking and unlocking

SIM card compatibility

Europe,Asia,US and others ,Bands optional
