Quick Details
-
Model Number:
-
Digital Tire Pressure Gauge for Automobile
-
color:
-
black,orange,green
-
pressure range:
-
0~30/60/100/200psi
-
sensor type:
-
silicon semiconductor sensor
-
Display unit:
-
Psi, Bar, Kgf/cm 2, KPa
-
weight:
-
475mg
-
package:
-
carton
-
MOQ:
-
100UNITS
-
company profile:
-
manufacturer
-
production place:
-
ningbo
-
Display:
-
digital with LED backlight
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MingRui
-
Model Number:
-
Digital Tire Pressure Gauge for Automobile
-
color:
-
black,orange,green
-
pressure range:
-
0~30/60/100/200psi
-
sensor type:
-
silicon semiconductor sensor
-
Display unit:
-
Psi, Bar, Kgf/cm 2, KPa
-
weight:
-
475mg
-
package:
-
carton
-
MOQ:
-
100UNITS
-
company profile:
-
manufacturer
-
production place:
-
ningbo
-
Display:
-
digital with LED backlight

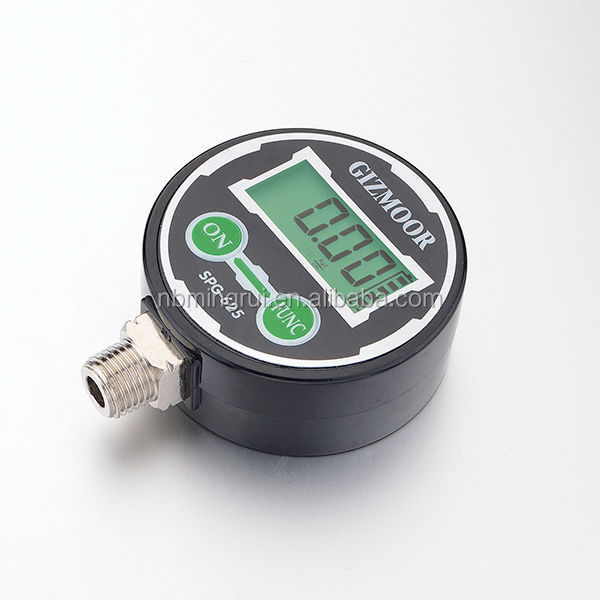

Introduction
The tire pressure gauge is used in the measurement of tire pressure. The pressure of the tire is very important, and the instability of pressure will shorten the life of the tire. If the pressure is too high, it will increase the carcass deformation and the cracks in the sidewall. Additionally, it will produce flex motion, leading to overheating, and will prompt rubber aging. If the pressure is too low, the tire contact area will increase and accelerate the abrasion of the tire shoulder. Thus, the inaccuracy of tire pressure is likely to cause an internal crack and lead to the tire bursting in the event of an impact. This is very dangerous. The digital tire gauge could accurately measure tire pressure. It comes with time monitoring and is easy to read in order to ensure your driving safety.
Parameters
1. Measurement Media: gas
2. Sensor Type: silicon semiconductor sensor
3. Cover Body: ABS plastic
4. Resolution: 0.5PST
5. Meter Accuracy: ±1%. F.S @20 °C
6. Repeatability: ±0.3%. F.S
7. Temperature Drift: ±2%. F.S
8. Max Operating Current: <4mA
9. Pressure Sampling Time: 0.4s
10. Auto Power Pressure: 5PSI±2PSI
11. Auto Power Response Time: <2s
12. Backlight Off Time: 25s±3s
13. Pressure Limit: 1.5 times full scale pressure
14. Operating Temperature: -10 °C ~ 45 °C ; Storage Temperature: -20 °C ~ 75 °C
15. Dimensions: 64mm diameter, 27mm thickness (with rubber sheath: 72mm diameter, 35mm thickness)
16. Display: 2.5”4 TN type LCD display
17. Instrument Power: 3.0 VDC (2 * 1.5V, supply no.7 battery)
18. Display Unit: Psi, Bar, Kgf/cm 2, KPa
19. Pressure Measurement Range: 0-200 Psi
20. Color: green, orange, or black
21. Thread: 1/4NTP Universal
Ningbo Mingrui Sensor Co., Ltd. is a national high -tech enterprise dedicated to sensor, centralized lubrication, and various controller research and development and manufacturing. The main products include various types of hydraulic sensors, non -contact sensors, close to sensors, car oil/water tank sensors, flow sensors, photoelectric sensors, lubricating oil pump controllers, car chassis lubricating controller, fresh air/air purification controller, etc., etc. Products are widely used in various fields such as home appliances, medical equipment, machinery, electronics, water pumps, water purification treatment, and centralized lubrication systems of automotive chassis, and are customized and developed according to customer needs.
Since its establishment in 2007, the company has obtained 5 invention patents, 3 practical new patents, and 7 software copyrights after the unremitting efforts of the R & D team. Quality management system certification. The corporate purpose of "faith, with sincerity, and winning", adhering to the "technical innovation,The quality policy of customer satisfaction continues to improve quality and services, meet customer requirements and surpass customer expectations.
Our factory management is in accordance with international 5S standards, strict requirements and supervision of the various production processes.
We attended the Electronica in Germany in Nov 2014, new products have won the praise of many buyers.
