Quick Details
-
Controller Battery:
-
Other
-
Style:
-
Radio Control Car Toy
-
Control System:
-
Pulse Width Modulation Control
-
Motor Type:
-
Coreless
-
Signal Mode:
-
Digital
-
Wire:
-
JST(JR) 100mm / 32AWG
-
Operating Voltage:
-
3.6V ~ 4.2V
-
Operating Temperature:
-
-10C°~ +50C°
-
Mechanical Limit Angle:
-
180°
-
Size:
-
13.5*6.2*16.0mm
-
Net Weight:
-
1.7g
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
C017CLS
-
Remote Distance:
-
Other
-
Controller Battery:
-
Other
-
Style:
-
Radio Control Car Toy
-
Control System:
-
Pulse Width Modulation Control
-
Motor Type:
-
Coreless
-
Signal Mode:
-
Digital
-
Wire:
-
JST(JR) 100mm / 32AWG
-
Operating Voltage:
-
3.6V ~ 4.2V
-
Operating Temperature:
-
-10C°~ +50C°
-
Mechanical Limit Angle:
-
180°
-
Size:
-
13.5*6.2*16.0mm
-
Net Weight:
-
1.7g
Product Description

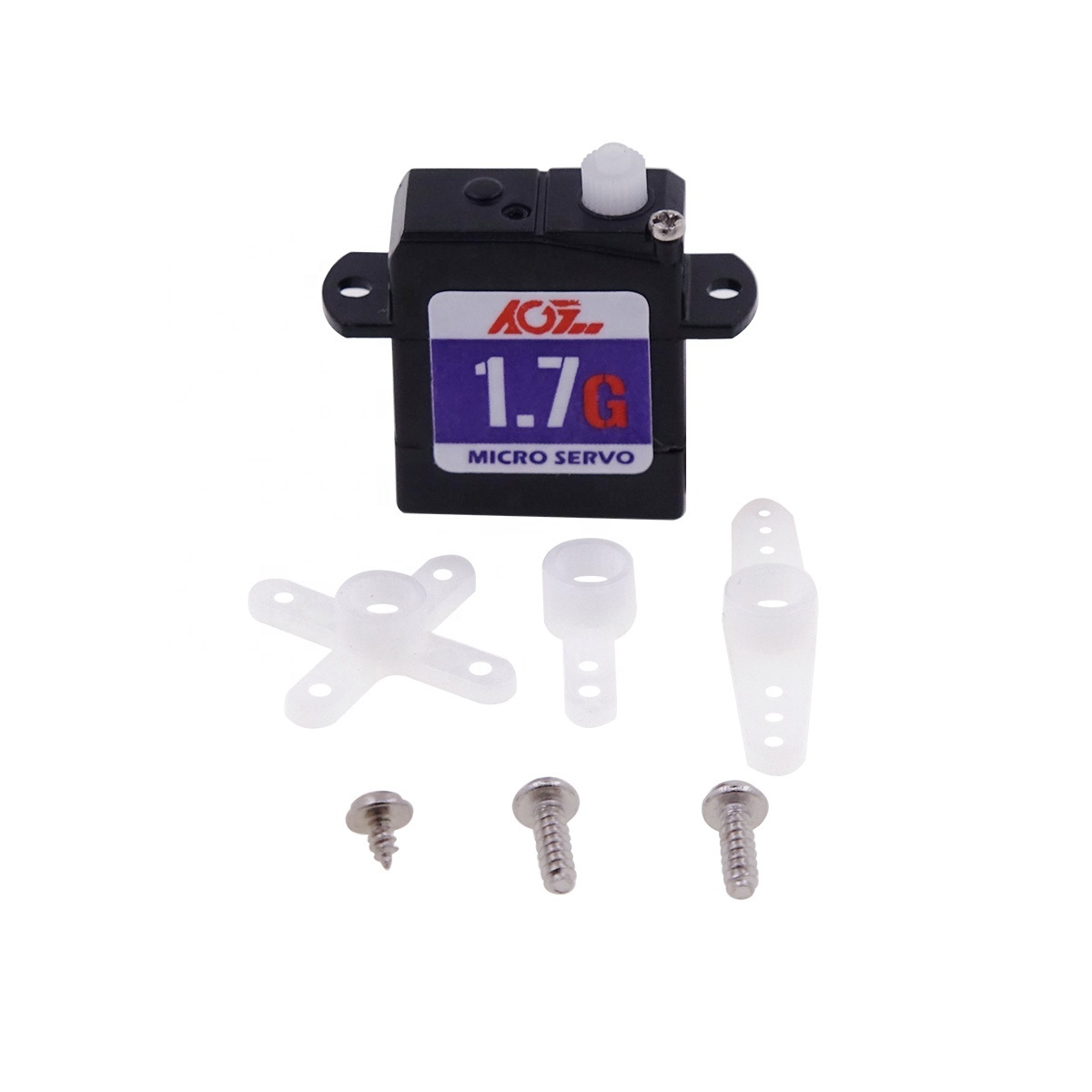

AGFRC C017CLS 0.065sec 0.075KG Torque Plastic Gear Digital Coreless Micro Servo Motor For RC Car Models
AGFRC micro plastic case digital servo from 1.7g which is super lightweight and quality built. Plastic gears provide higher precision for the radio control and small scale models. Easy to install for the models or devices with limit space and weight requirements.
Feature
|
High Performance Digital Servo
|
|
|
|
|
||||
|
High Precision Plastic Gears
|
|
|
|
|
||||
|
High Quality Coreless Motor
|
|
|
|
|
||||
|
Ideal for 1:35 Scaler, 1S Powered Applications, Indoor 3D Flight, Small Park Flyers, RC Plane Helicopter Boat
|
|
|
|
|
||||
Specification
|
Item name
|
C017CLS
|
|
|
|
|||
|
Operating Voltage
|
3.6V ~ 4.2V
|
|
|
|
|||
|
|
0.070sec/ 60°@ 3.7V
0.050sec/60° @ 4.2V |
|
|
|
|||
|
Stall Torque
|
65 g-cm (0.9 oz-in) @ 3.7V
75 g-cm (1.0 oz-in) @ 4.2V |
|
|
|
|||
|
Programmable
|
No
|
|
|
|
|||
|
Operating Temperature
|
-10C°~ +50C°
|
|
|
|
|||
|
Signal Range
|
900 to 2100 uSec
|
|
|
|
|||
|
Mechanical Angle
|
180°
|
|
|
|
|||
|
Motor Type
|
IC Drive
|
|
|
|
|||
|
Angle Sensor
|
Potentiometer
|
|
|
|
|||
|
Gear Material
|
Plastic
|
|
|
|
|||
|
Case Material
|
Plastic
|
|
|
|
|||
|
Size
|
13.5*6.2*16.0mm
|
|
|
|
|||
|
Net Weight
|
2.0g
|
|
|
|
|||
|
Wire
|
JST(JR) 100mm / 32AWG
|
|
|
|
|||
