Quick Details
-
Material:
-
Q235 Cold Rolled Sheet
-
Size:
-
60*70*13.5 mm
-
Applicable door weight:
-
0.5kg~10kg
-
Working temperature:
-
-20℃~+60℃
-
Working humidity:
-
5%~85%RH
-
Working life:
-
500,000 times
-
Tensile strength:
-
240 kg
-
Response time:
-
<200ms
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
KERONG
-
Product Name:
-
Electric Cabinet Lock
-
Material:
-
Q235 Cold Rolled Sheet
-
Size:
-
60*70*13.5 mm
-
Applicable door weight:
-
0.5kg~10kg
-
Working temperature:
-
-20℃~+60℃
-
Working humidity:
-
5%~85%RH
-
Working life:
-
500,000 times
-
Tensile strength:
-
240 kg
-
Response time:
-
<200ms
Product Paramenters
|
Brand
|
KERONG
|
|

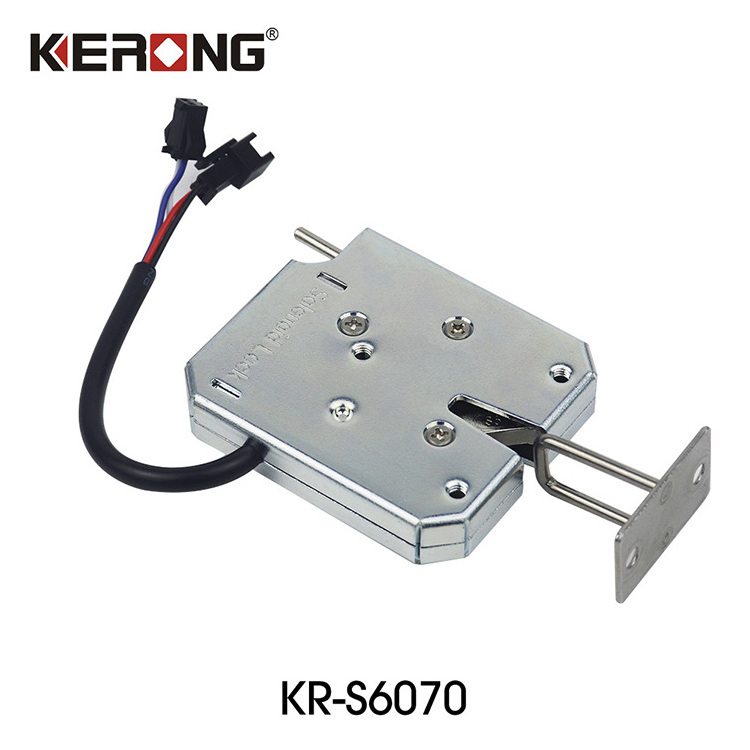

Product Model
|
KR-S6070
|
|
Material
|
Q235 Cold Rolled Sheet
|
|
Size
|
60*70*13.5 mm
|
|
Weight of Lock
|
160.1 g
|
|
Color
|
Silver or Black
|
|
Surface Treatment
|
Blue Zinc Plated
|
|
Working Voltage
|
12V/24V
|
|
Working Current
|
2.4A/1.2A
|
|
Power Consumption
|
28.8 W
|
|
Working Life
|
500,000 times
|
|
Detective Switch
|
Self-developed Switch
|
|
Drive Mode
|
Solenoid
|
|
Application
|
Logistics Cabinet, School Locker, Public Bin, Vending Machine, Industrial Box, etc
|
|
Certifications
|
CE, RoHS, FCC
|
Product Specification
1. Driven by solenoid, support 12V & 24V.
2. AWG24 wires with PVC protecting tube .
3. Support customizing wires and connectors.
4. Detective switch from China, detect the opening and closing of the lock.
5. The compact structure design allows more space for the storage cabinet.
6. Different lock hook suits for different locker design, customization is available.
7. Security: Lock shells, made of Q235 cold-rolled sheet, won't obviously transform.
2. AWG24 wires with PVC protecting tube .
3. Support customizing wires and connectors.
4. Detective switch from China, detect the opening and closing of the lock.
5. The compact structure design allows more space for the storage cabinet.
6. Different lock hook suits for different locker design, customization is available.
7. Security: Lock shells, made of Q235 cold-rolled sheet, won't obviously transform.
