Quick Details
-
Dimension(L*W*H):
-
4700*950*1750mm
-
Weight (KG):
-
1500 kg
-
Applicable Industries:
-
WOODWORKING FOR FURNITURE
-
Panel Feed Speed(m/min):
-
20m/min
-
Machine Size:
-
4700x950x1750mm
-
Machine Weight:
-
2000kg
-
Power:
-
380V+N/50Hz
-
Characteristic:
-
Automatic Edge Bander
-
Certificate:
-
CE&ISO
-
Band Thickness:
-
0.4-15mm
-
Band Width:
-
12-65mm
-
Panel Thickness:
-
10-60mm
-
Panel Length:
-
168mm
-
Weight:
-
2000kg
-
Marketing Type:
-
New Product 2021
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
ZD
-
Voltage:
-
380v/50hz/3phases
-
Dimension(L*W*H):
-
4700*950*1750mm
-
Weight (KG):
-
1500 kg
-
Applicable Industries:
-
WOODWORKING FOR FURNITURE
-
Panel Feed Speed(m/min):
-
20m/min
-
Machine Size:
-
4700x950x1750mm
-
Machine Weight:
-
2000kg
-
Power:
-
380V+N/50Hz
-
Characteristic:
-
Automatic Edge Bander
-
Certificate:
-
CE&ISO
-
Band Thickness:
-
0.4-15mm
-
Band Width:
-
12-65mm
-
Panel Thickness:
-
10-60mm
-
Panel Length:
-
168mm
-
Weight:
-
2000kg
-
Marketing Type:
-
New Product 2021
-
Certification:
-
CE

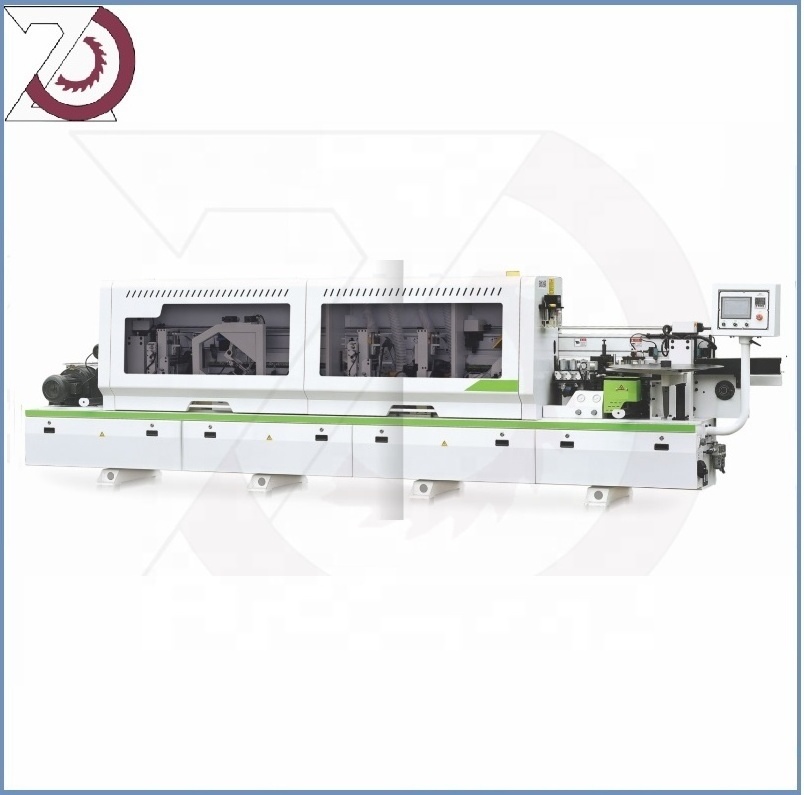

ZD450- ZD500 series edge band machine
Automatic Edge Banding Machine / Edge Bander
Product Description
1.Main working process:
Premilling
Gluing
End cutting
Rough trimming and fine trimming
Corner rounding
Scraping
Buffing
Control panel
Specification
|
Width of board
|
Min. 50mm
|
End trimming motor
|
0.5kw*2
|
|
Length of board
|
Min. 100mm
|
Rough trimming motor
|
0.75kw*2
|
|
Thickness of board
|
10-60mm
|
Fine trimming motor
|
0.75kw*2
|
|
Width of banding
|
12-65mm
|
Corner rounding motor
|
0.5kw*2
|
|
Thickness of banding
|
0.4-3mm
|
Polishing motor
|
0.37kw*2
|
|
Heating power
|
1.7kw
|
Feeding speed
|
10-23m/min
|
|
Feeding motor power
|
3.7kw
|
Air pressure
|
0.8Mpa
|
|
Pre-milling moter
|
2.2kw*1
|
Shape of workpiece
|
straight
|
|
Glue spreading motor
|
0.75kw
|
N.W.
|
2800kg
|
|
Voltage
|
380v, 3ph, 50hz
|
Size
|
6700×850×1520mm
|
3. Features of the machine
(1)Automatic edge banding machine with functions of edge feeding ,edging,edge cutting,end trimming,fine finishing,buffing.
(2)Its structure is compact and have a reasonable disposition.It works steadily and operates safely.
(3)It is adjustable.The machine adopts the devices of sound insulation,controlling of dust,prevent the overlading,auxiliary frame
electrical adjusted.
4. Video&pictures are avaliable.
5.Function:
1.The machine is special for automatic band wood batten on the side of panel to form L-shape of door frame.
2. It can store material of both wooden battens and wooden panels.
3. It can automatic feed in and feed out material.
4. It can automatic band edge and course-trimming.
Packing & Delivery
wooden box or negotiated automatic edge bander
